Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the rain sensor module.
Install the rain sensor module in the windshield coupler.
Fasten the windshield coupler clips.

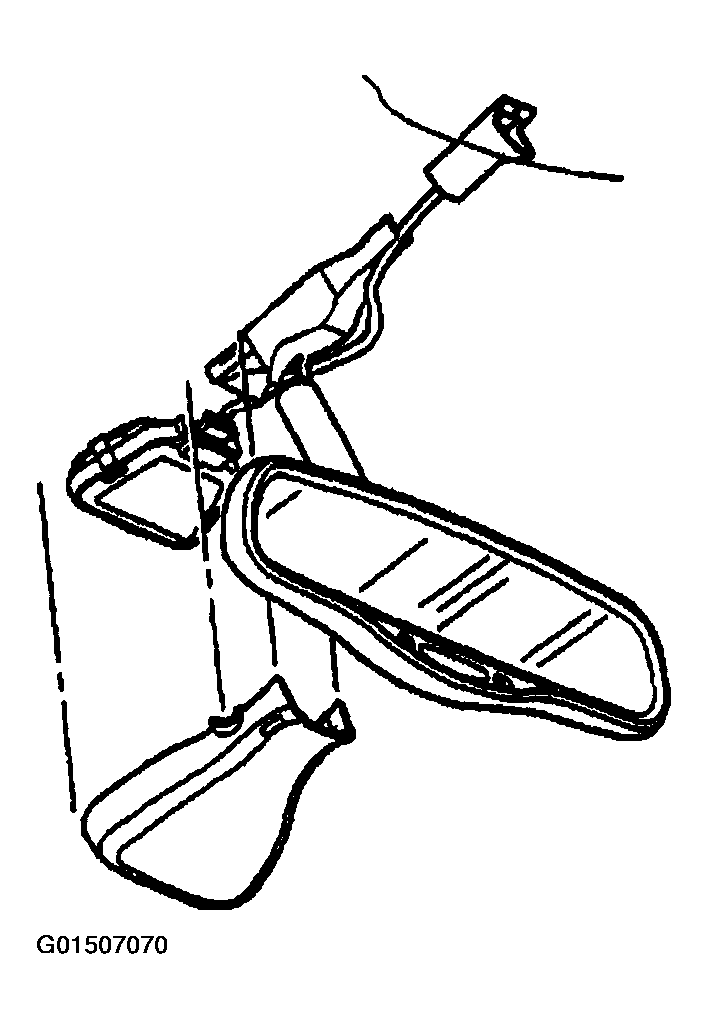

Fig 1: Connecting Electrical Connector To Rain Sensor Module
Courtesy of GENERAL MOTORS CORP.
Install the trim cover on the rain sensor module.

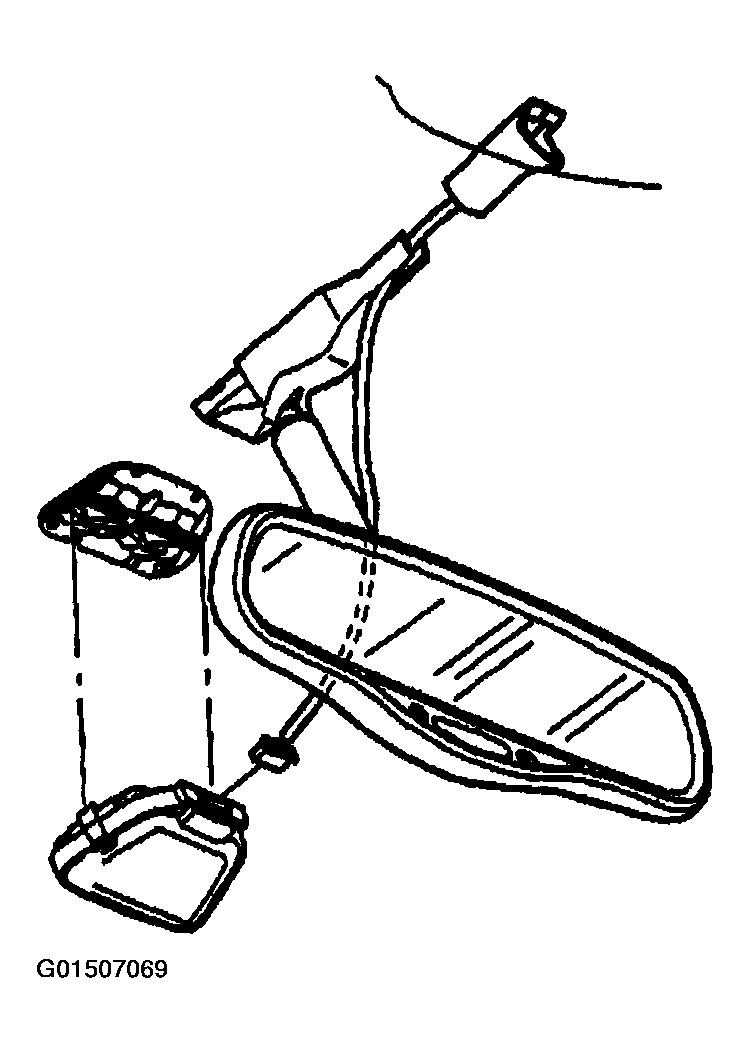

Fig 2: Installing Trim Cover On Rain Sensor Module
Courtesy of GENERAL MOTORS CORP.
