Body Control System Schematics

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

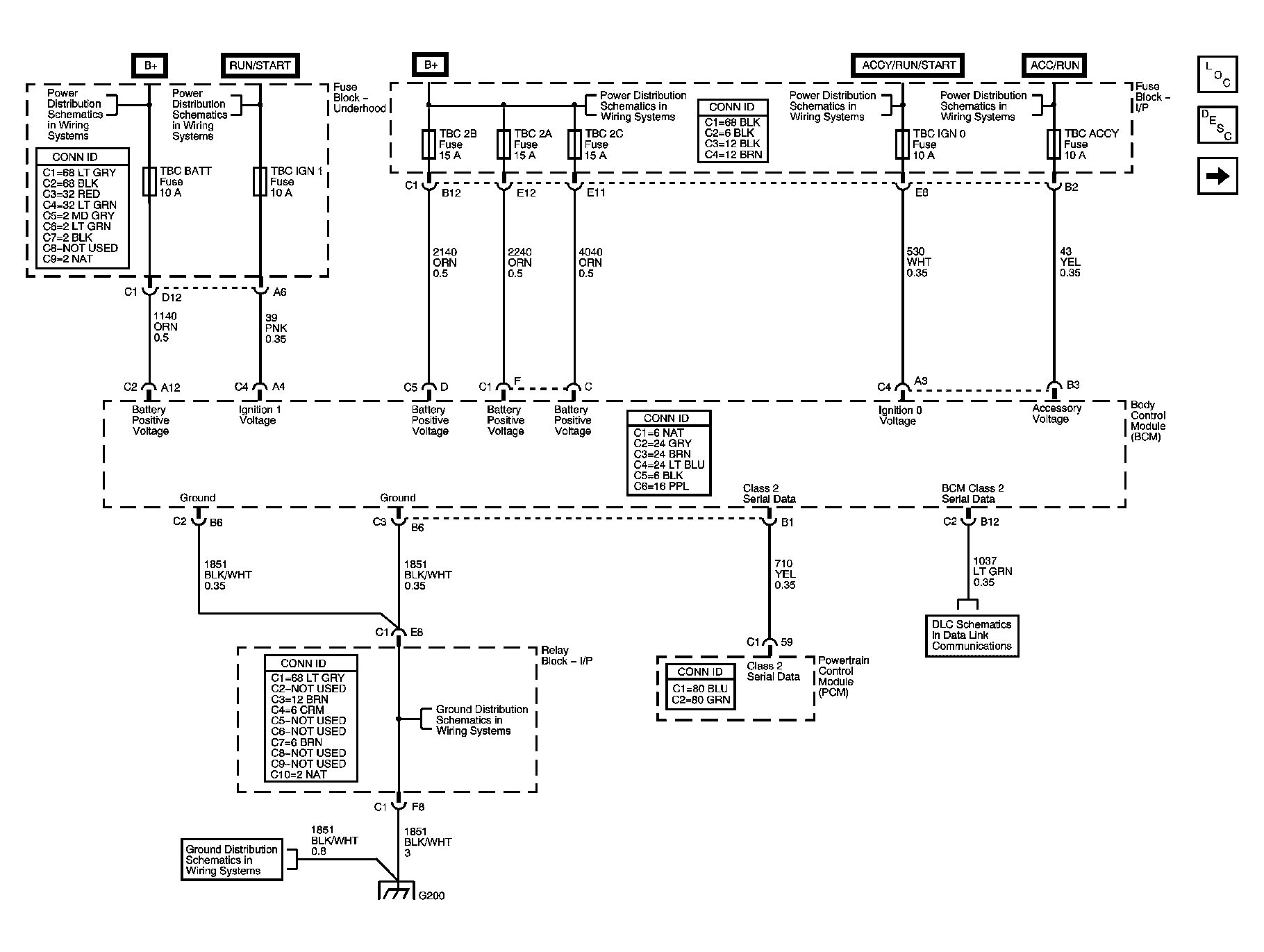

Fig 1: Power, Ground, and Serial Data Circuit Schematic

GM832334

Courtesy of GENERAL MOTORS CORP.

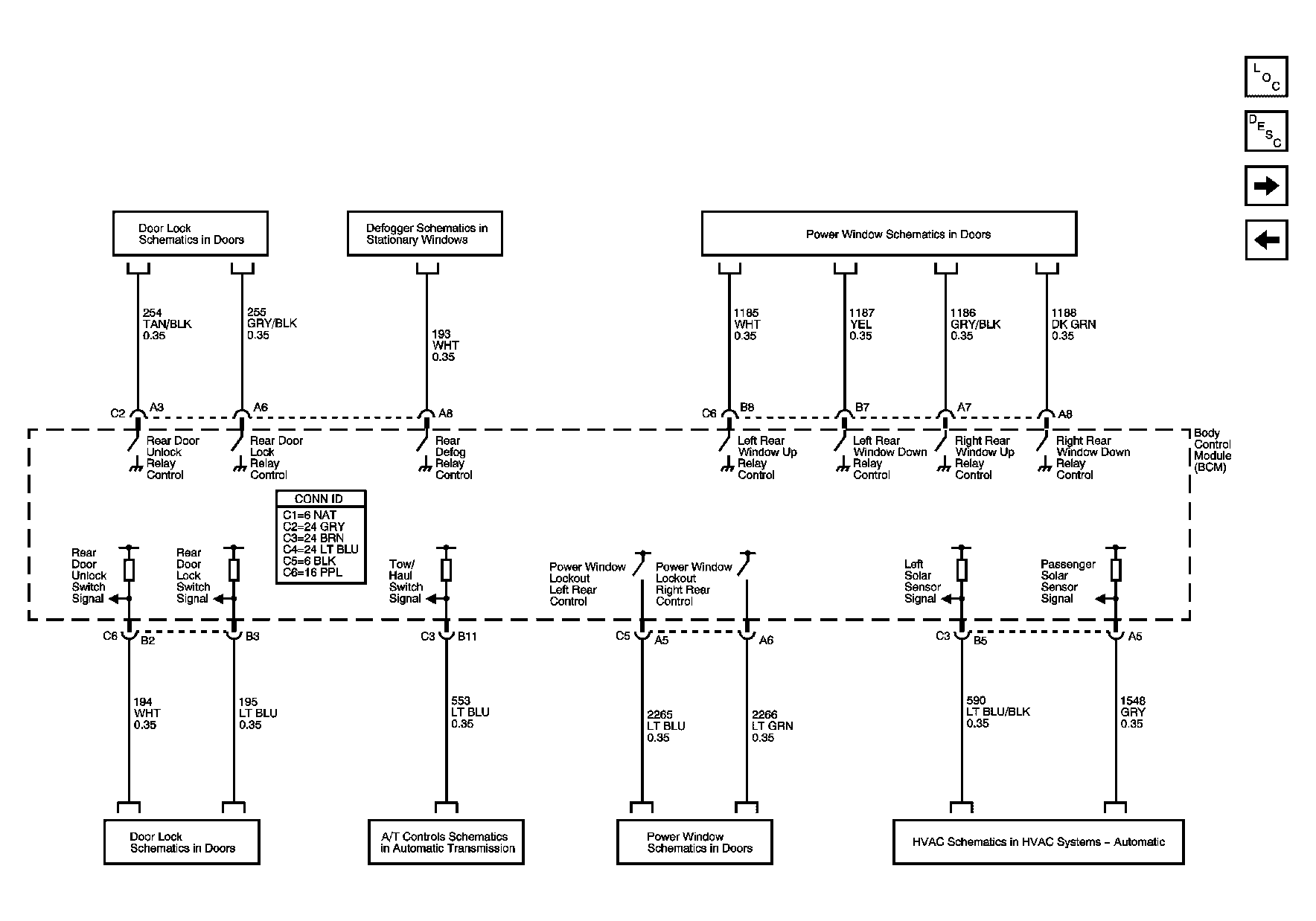

Fig 2: Power Windows and Door Locks, HVAC, and A/T Controls Schematic

GM832337

Courtesy of GENERAL MOTORS CORP.

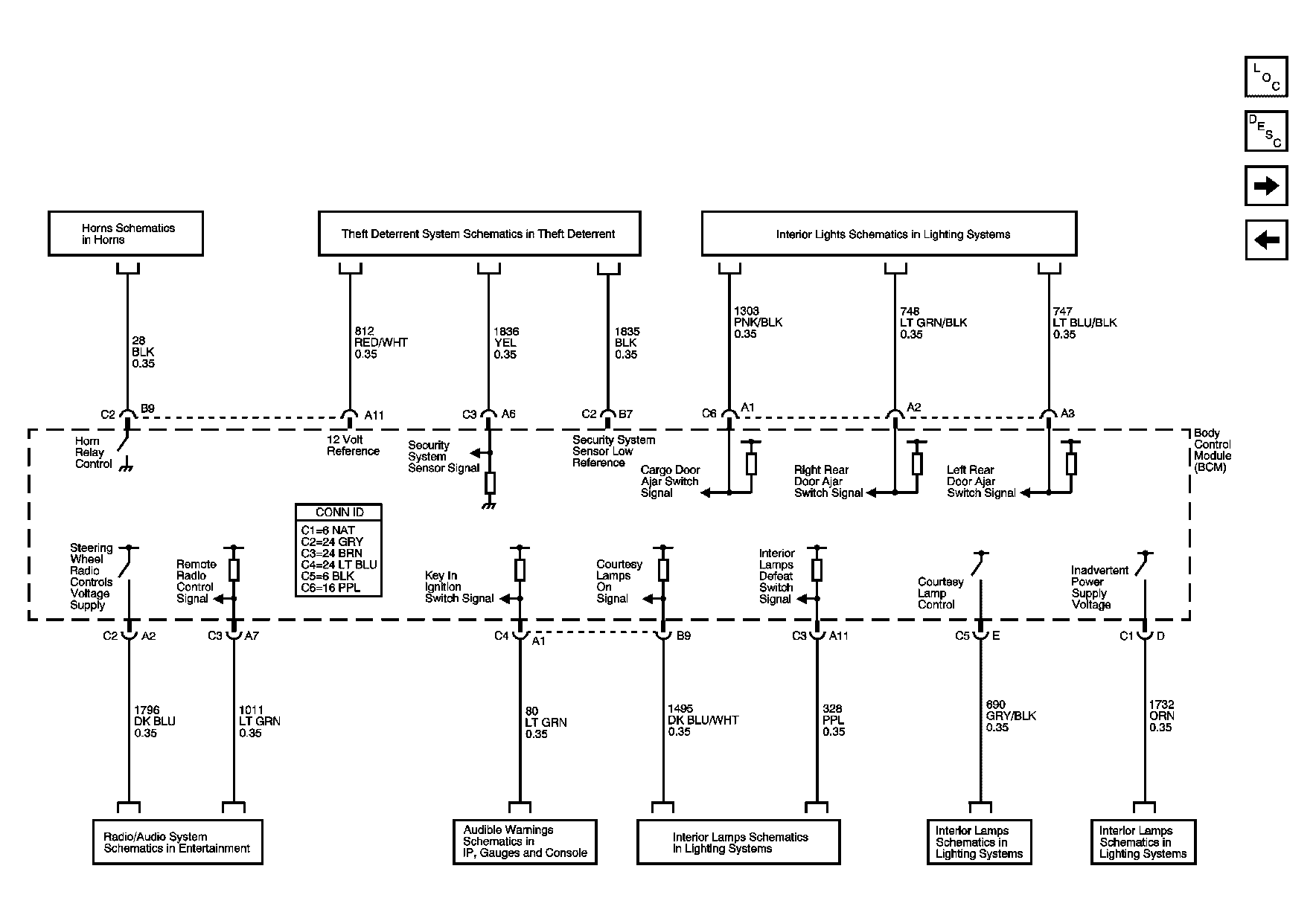

Fig 3: Interior Lights, Horns, Entertainment, and Theft Deterrent Schematic

GM832340

Courtesy of GENERAL MOTORS CORP.

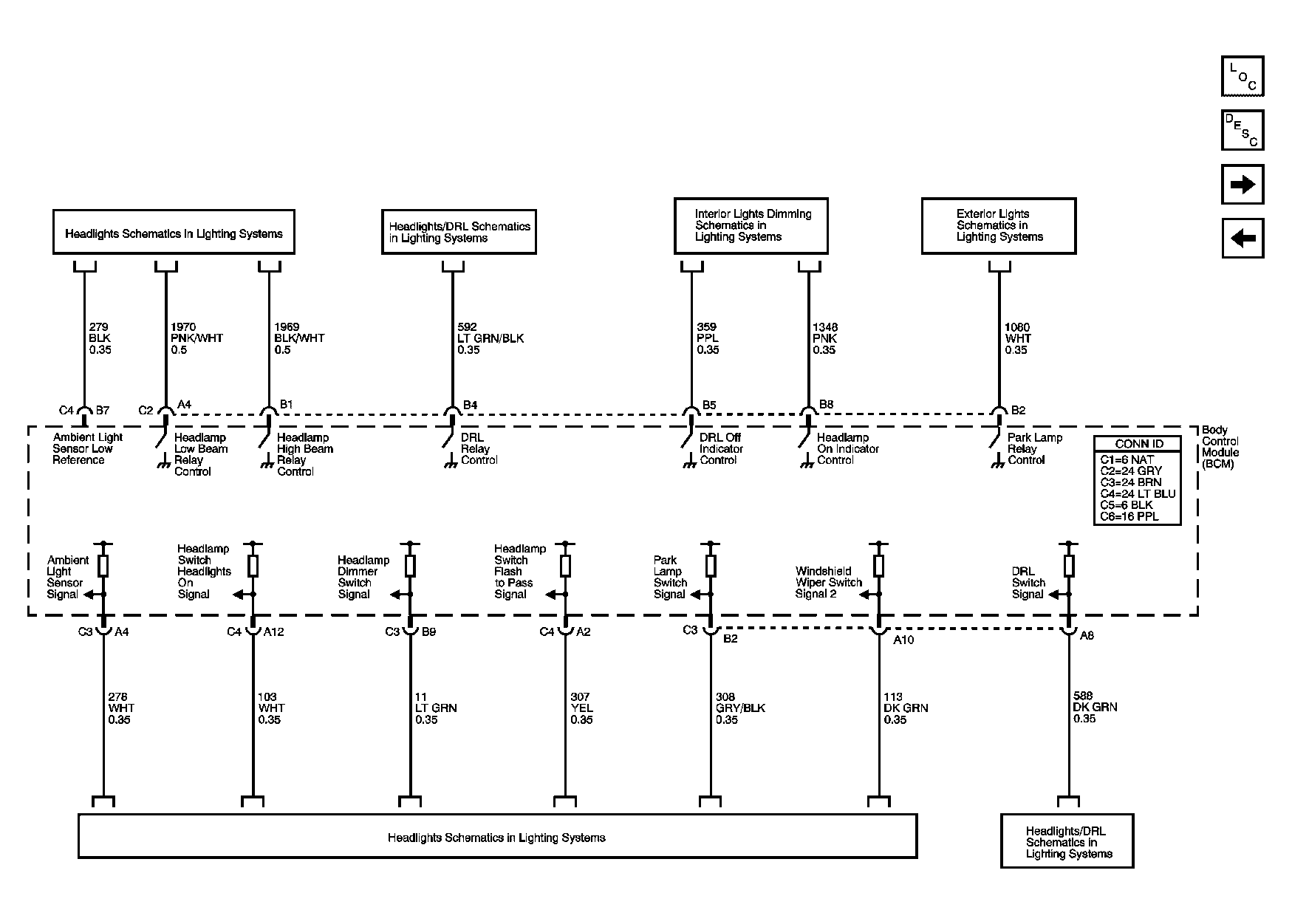

Fig 4: Headlamps, Park Lamps, and DRL Controls, Park Brake Signal Schematic

GM832344

Courtesy of GENERAL MOTORS CORP.

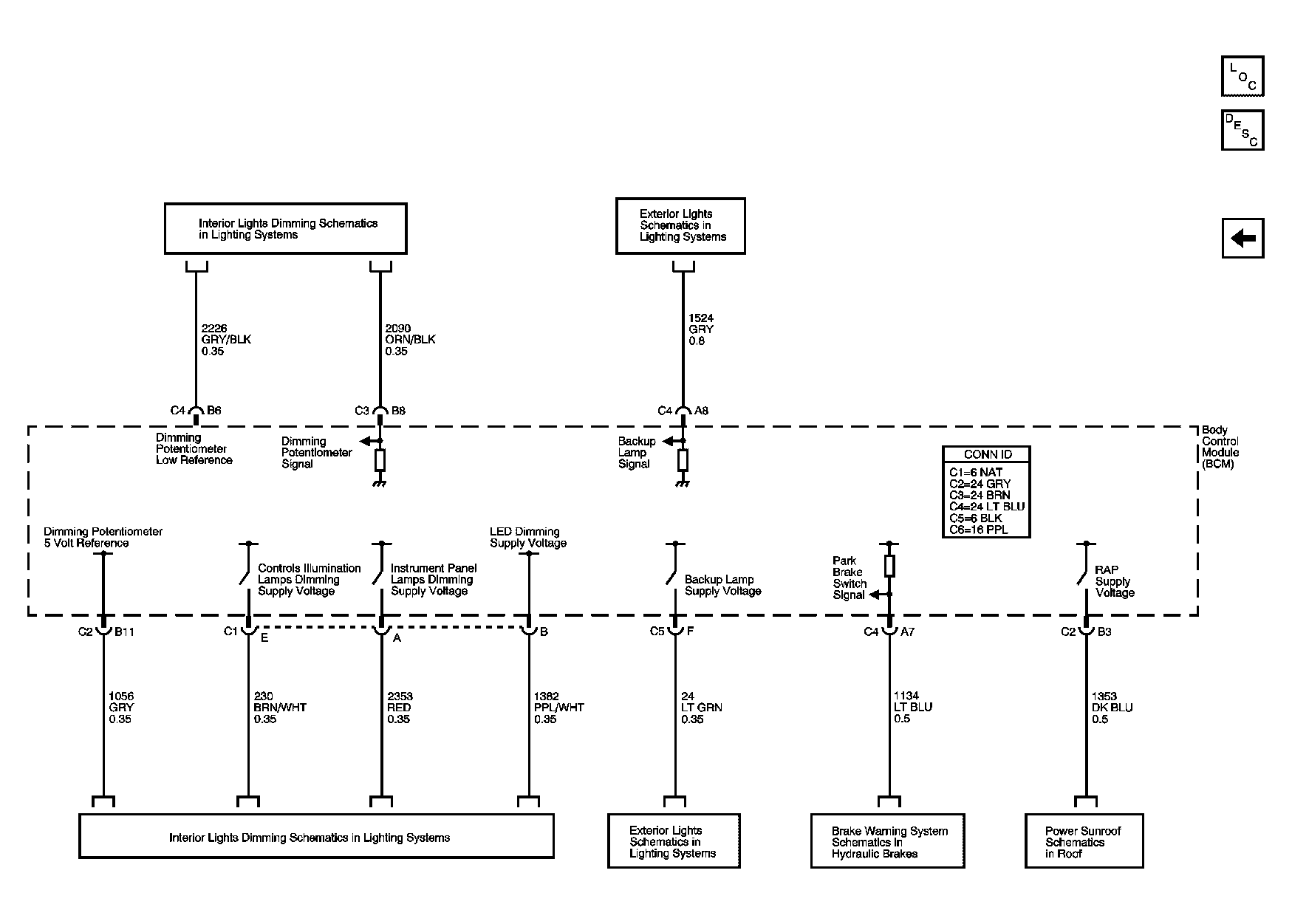

Fig 5: Interior Lights Dimming, Backup Lights, and Sunroof Power Schematic

GM832347

Courtesy of GENERAL MOTORS CORP.
