Disassembled Views

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

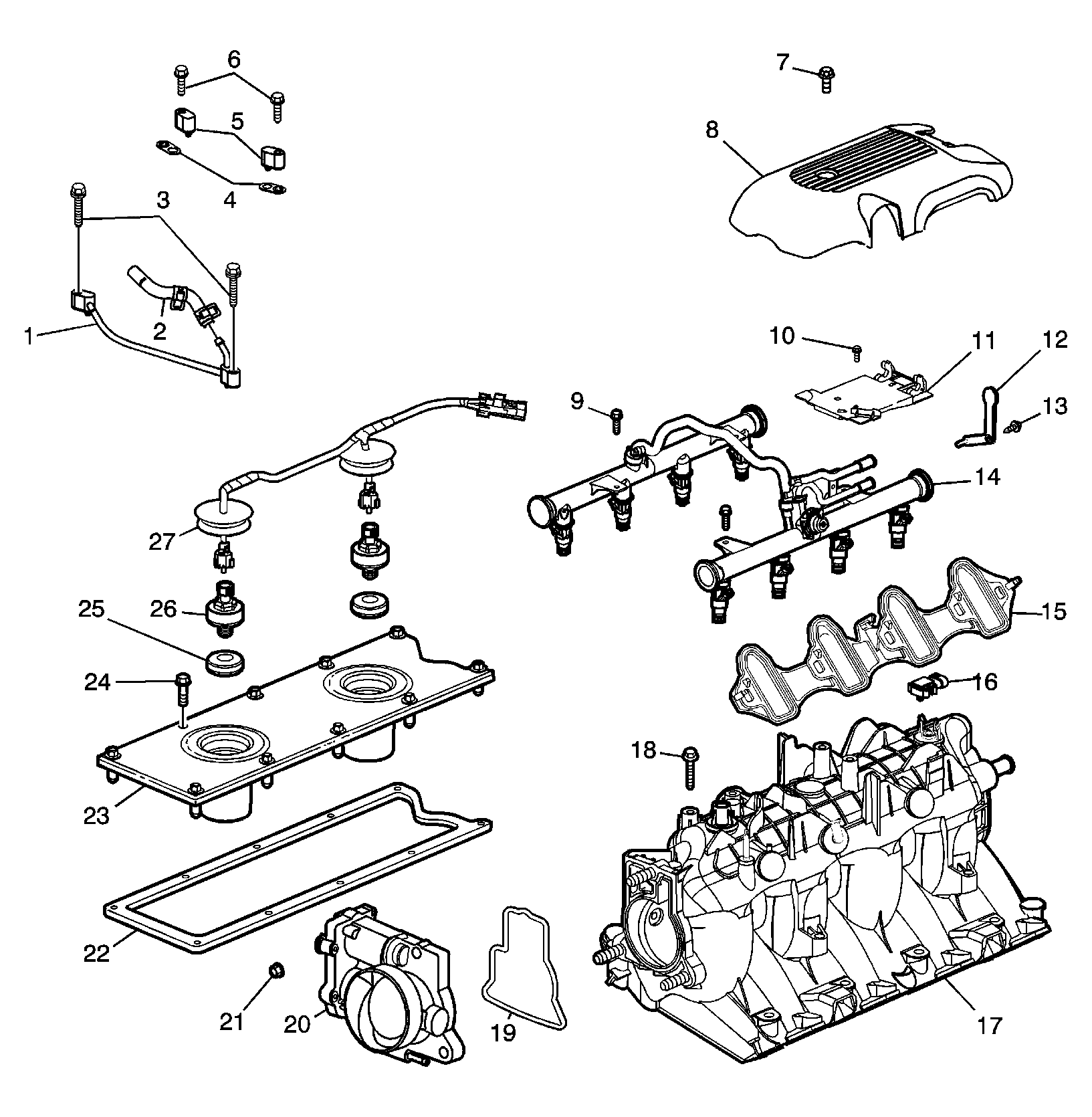

Fig 1: Intake Manifold/Upper Engine Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Air Bleed Pipe
2	Engine Coolant Air Bleed Pipe Hose
3	Engine Coolant Air Bleed Pipe Bolt
4	Engine Coolant Air Bleed Pipe/Cover Gasket
5	Engine Coolant Air Bleed Pipe Cover
6	Engine Coolant Air Bleed Pipe/Cover Bolt
7	Engine Sight Shield Bolt
8	Engine Sight Shield
9	Fuel Rail Bolt
10	Engine Sight Shield Bracket Bolt
11	Engine Sight Shield Bracket
12	Fuel Rail Stop Bracket
13	Fuel Rail Stop Bracket Bolt
14	Fuel Rail - with Injectors
15	Intake Manifold Gasket
16	Manifold Absolute Pressure (MAP) Sensor
17	Intake Manifold
18	Intake Manifold Bolt
19	Throttle Body Gasket
20	Throttle Body
21	Throttle Body Nut
22	Valley Cover Gasket
23	Valley Cover
24	Valley Cover Bolt
25	Knock Sensor Oil Seal
26	Knock Sensor
27	Knock Sensor Wire Harness

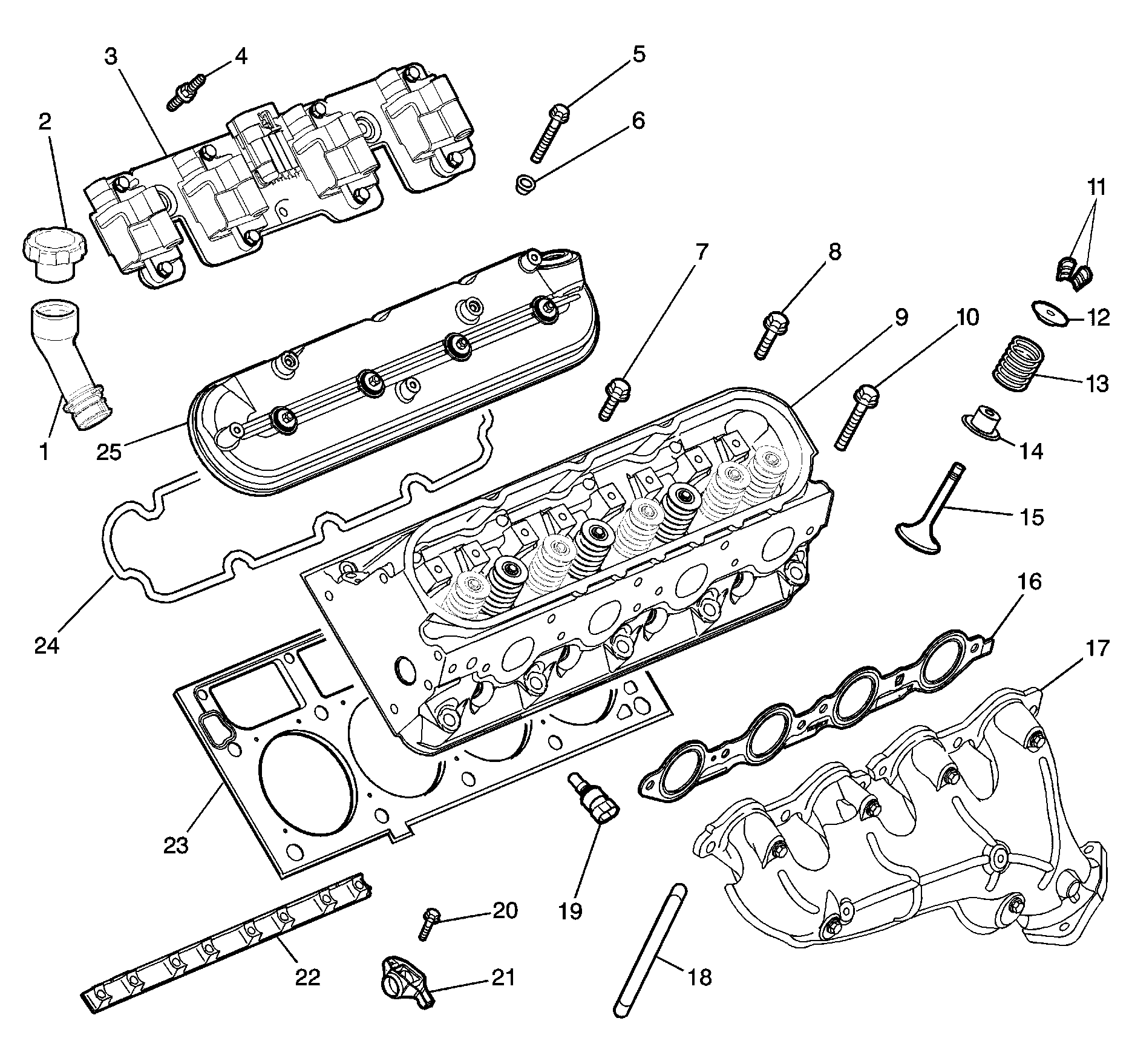

Fig 2: Cylinder Head/Upper Engine Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Oil Fill Tube
2	Oil Fill Tube Cap
3	Ignition Coil and Bracket Assembly
4	Ignition Coil and Bracket Assembly Bolt
5	Valve Rocker Arm Cover Bolt
6	Valve Rocker Arm Cover Bolt Grommet
7	Cylinder Head Bolt - Short
8	Cylinder Head Bolt - Medium
9	Cylinder Head
10	Cylinder Head Bolt - Long
11	Valve Stem Keys
12	Valve Spring Cap
13	Valve Spring
14	Valve Stem Oil Seal and Shim Assembly
15	Valve
16	Exhaust Manifold Gasket
17	Exhaust Manifold - with Heat Shield
18	Pushrod
19	Coolant Temperature Sensor
20	Valve Rocker Arm Bolt
21	Valve Rocker Arm
22	Valve Rocker Arm Pivot Support
23	Cylinder Head Gasket
24	Valve Rocker Arm Cover Gasket
25	Valve Rocker Arm Cover

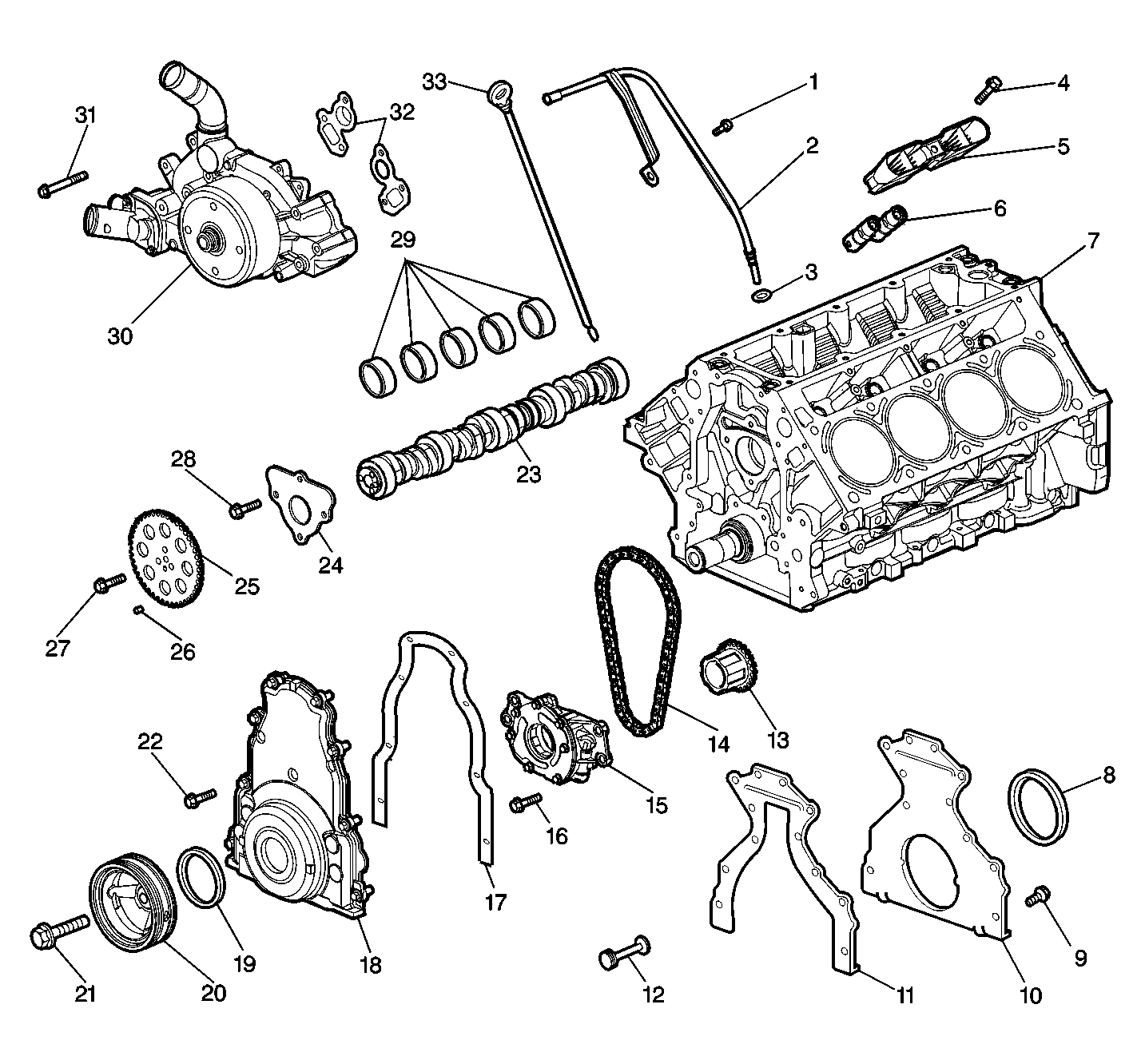

Fig 3: Lower Front of Engine Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Oil Level Indicator Tube Bolt
2	Oil Level Indicator Tube
3	Oil Level Indicator Tube O-Ring Seal
4	Valve Lifter Guide Bolt
5	Valve Lifter Guide
6	Valve Lifter
7	Engine Block
8	Crankshaft Rear Oil Seal
9	Engine Rear Cover Bolt
10	Engine Rear Cover
11	Engine Rear Cover Gasket
12	Engine Block Rear Oil Gallery Plug
13	Crankshaft Sprocket
14	Camshaft Timing Chain
15	Oil Pump Assembly
16	Oil Pump Bolt
17	Engine Front Cover Gasket
18	Engine Front Cover
19	Crankshaft Front Oil Seal
20	Crankshaft Balancer
21	Crankshaft Balancer Bolt
22	Engine Front Cover Bolt
23	Camshaft
24	Camshaft Retainer
25	Camshaft Sprocket
26	Camshaft Sprocket Locating Pin
27	Camshaft Sprocket Bolt
28	Camshaft Retainer Bolt
29	Camshaft Bearings
30	Water Pump
31	Water Pump Bolt
32	Water Pump Gaskets
33	Oil Level Indicator

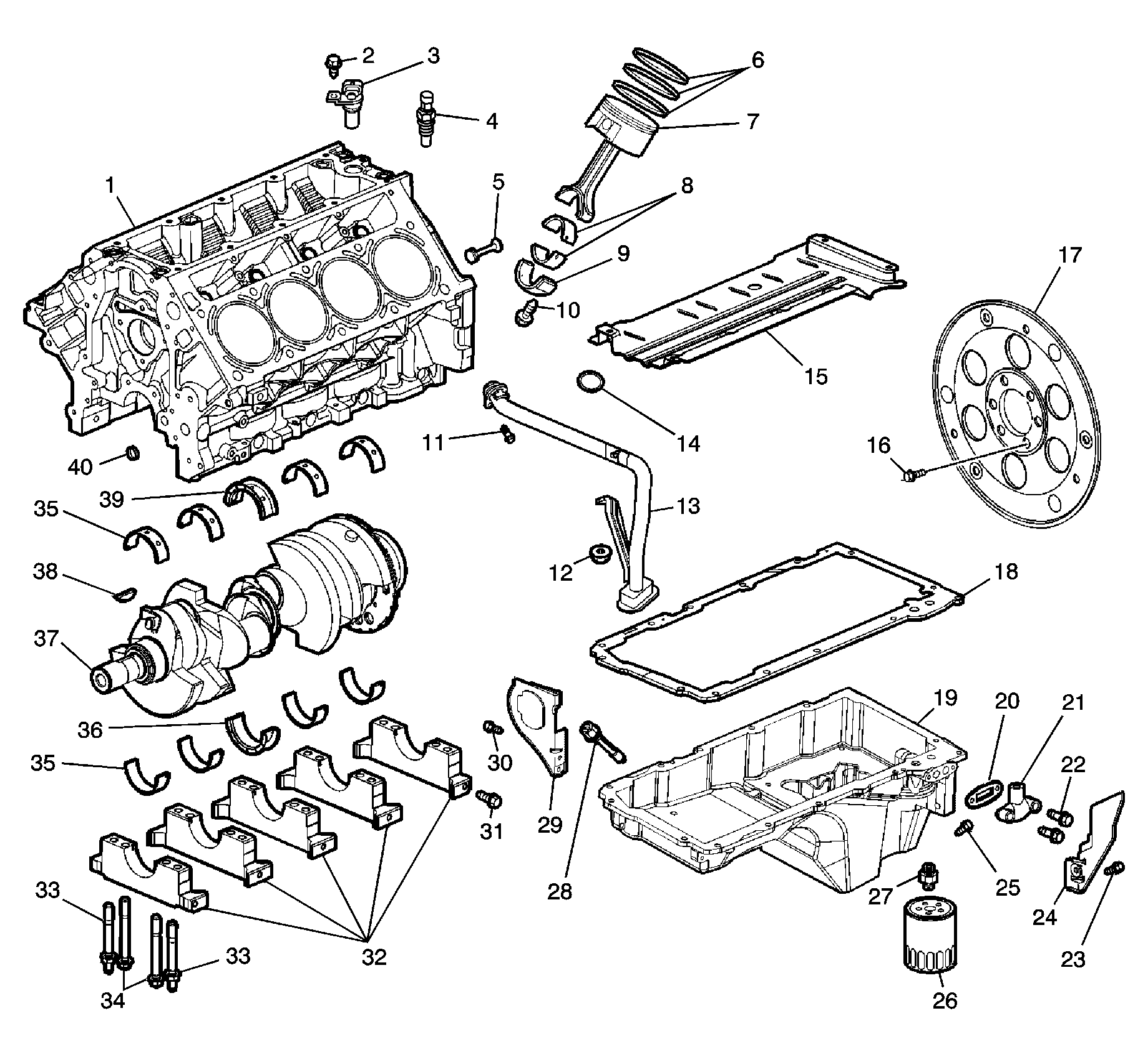

Fig 4: Lower Engine Assembly Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Block
2	Camshaft Position Sensor Bolt
3	Camshaft Position Sensor
4	Oil Pressure Sensor
5	Engine Block Rear Oil Gallery Plug
6	Piston Rings
7	Piston and Connecting Rod Assembly
8	Connecting Rod Bearings
9	Connecting Rod Cap
10	Connecting Rod Bolt
11	Oil Pump Screen Bolt
12	Oil Pump Screen Nut
13	Oil Pump Screen
14	Oil Pump Screen O-ring Seal
15	Crankshaft Oil Deflector
16	Flywheel Bolt
17	Flywheel - Automatic Transmission
18	Oil Pan Gasket
19	Oil Pan
20	Oil Pan Cover Gasket
21	Oil Pan Cover
22	Oil Pan Cover Bolt
23	Oil Pan Closeout Cover Bolt - Left Side
24	Oil Pan Closeout Cover - Left Side
25	Oil Pan Drain Plug
26	Oil Filter
27	Oil Filter Adapter
28	Oil Level Sensor
29	Oil Pan Closeout Cover - Right Side
30	Oil Pan Closeout Cover Bolt - Right Side
31	Crankshaft Bearing Cap Side Bolt
32	Crankshaft Bearing Caps
33	Crankshaft Bearing Cap Bolt/Stud
33	Crankshaft Bearing Cap Bolt/Stud
34	Crankshaft Bearing Cap Bolt
35	Crankshaft Bearing
35	Crankshaft Bearing
36	Crankshaft Thrust Bearing - Lower
37	Crankshaft
38	Crankshaft Sprocket Key
39	Crankshaft Thrust Bearing - Upper
40	Engine Block Front Oil Gallery Plug

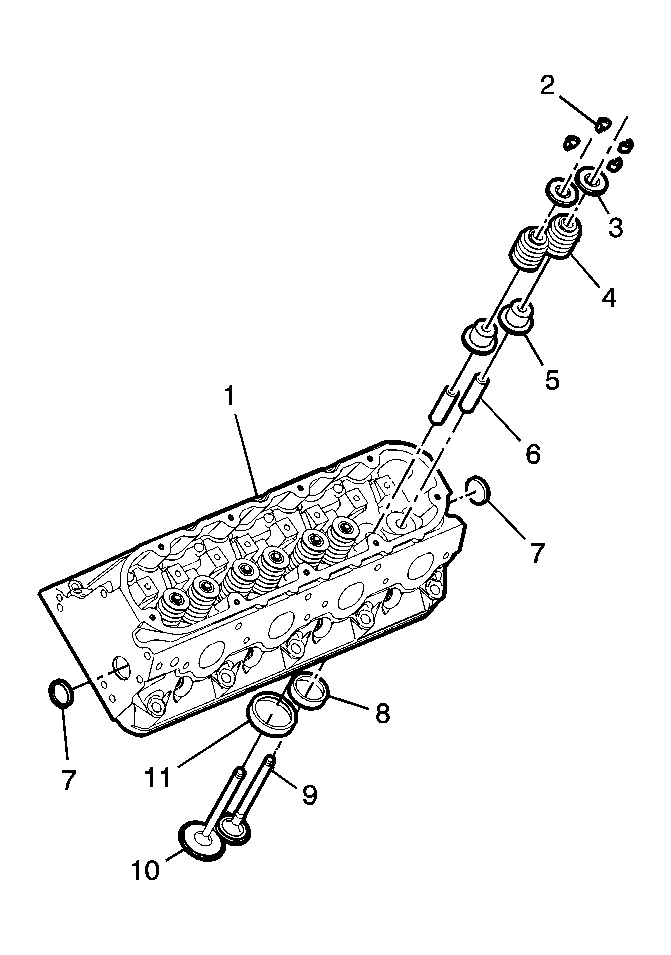

Fig 5: Cylinder Head Assembly - Aluminum Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cylinder Head
2	Valve Stem Keys
3	Valve Spring Cap
4	Valve Spring
5	Valve Stem Oil Seal and Shim Assembly
6	Valve Guide
7	Cylinder Head Expansion Plugs
7	Cylinder Head Expansion Plugs
8	Exhaust Valve Seat
9	Exhaust Valve
10	Intake Valve
11	Intake Valve Seat

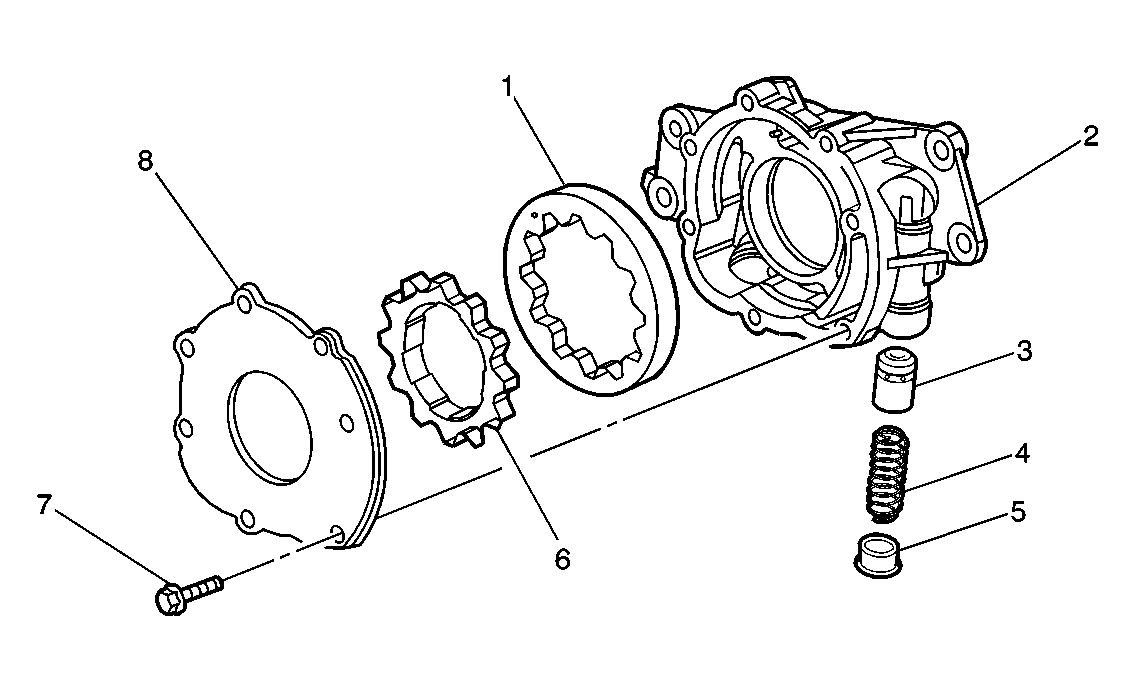

Fig 6: Oil Pump Assembly Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driven Gear
2	Oil Pump Housing
3	Pressure Relief Valve
4	Pressure Relief Valve Spring
5	Plug
6	Drive Gear
7	Cover Bolt
8	Cover
