Control Valve Body Installation

Tools Required

• J 25025-5  Dial Indicator Mounting Post M6 x 1. See Special Tools and Equipment .00
• J 36850 Transjel Lubricant

Fig 1: Installing Checkballs (2-6, 8, 12) In Valve Body & Retaining Checkballs
Courtesy of GENERAL MOTORS CORP.
1. Install the checkballs (2-6, 8, 12) in the valve body and retain checkballs with J 36850 or an equivalent.
Fig 2: Installing Valve Body Over J 25025-5
Courtesy of GENERAL MOTORS CORP.
2. Install the valve body over the J 25025-5  Guide Pins, and connect the manual valve link to the manual valve. See Special Tools and Equipment .
3. Install two bolts to hold the valve body in place.
4. Remove the J 25025-5  . See Special Tools and Equipment .

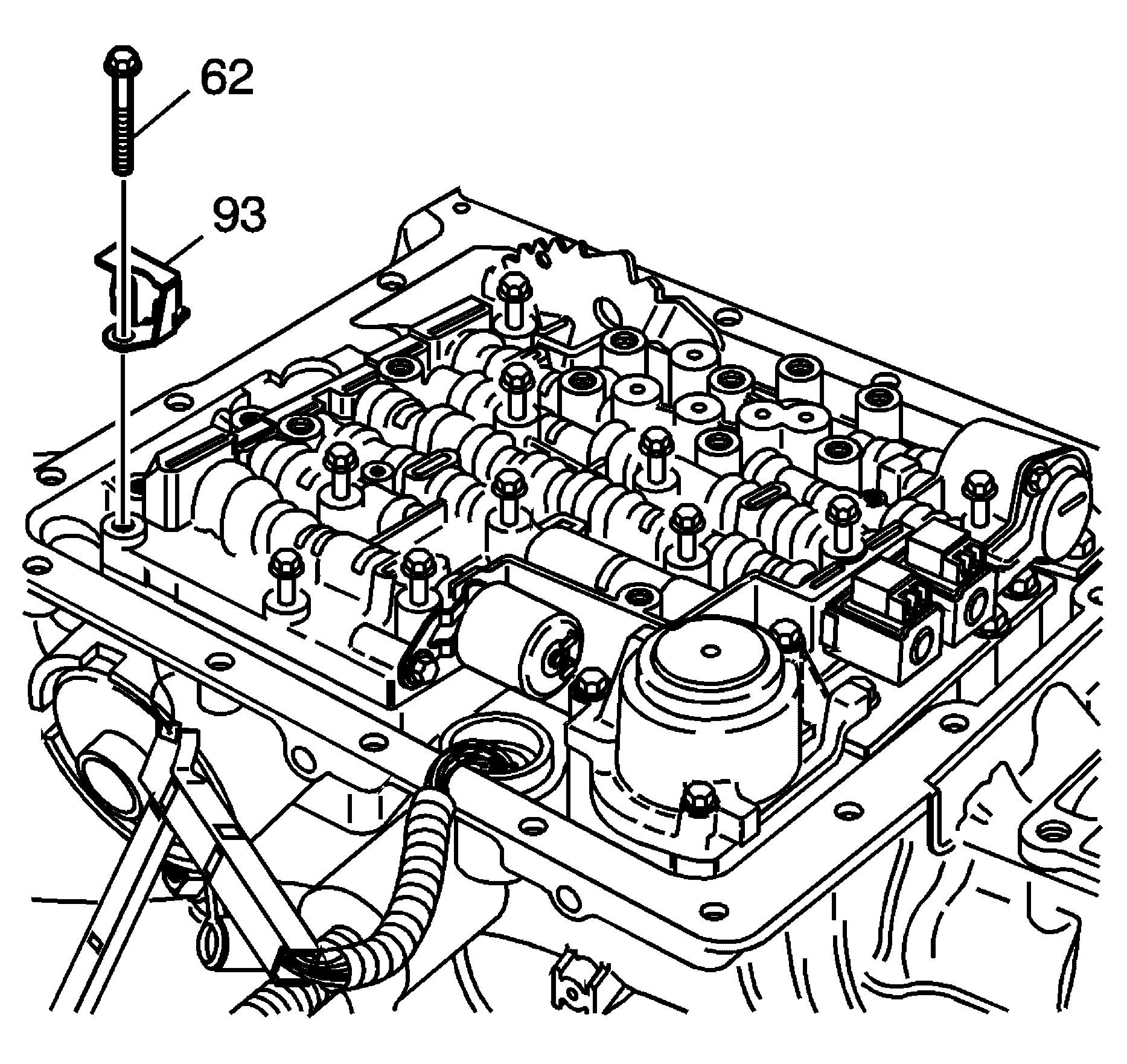

Fig 3: Fluid Level Indicator Stop Bracket & Valve Body Bolts
Courtesy of GENERAL MOTORS CORP.
5. Install the fluid level indicator stop bracket (93) and the valve body bolts (62) that are shown only.
6. Finger tighten the bolts.
Fig 4: Inspecting Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly
Courtesy of GENERAL MOTORS CORP.
7. Inspect the Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly for the following conditions:
   • Damage
   • Debris
   • Damaged or missing O-rings
   • Cracked connector
   • Loose pins
   • Poor terminal retension
   • Sediment in switch membrane
Fig 5: TFP Manual Valve Position Switch & Bolts
Courtesy of GENERAL MOTORS CORP.
8. Install the TFP manual valve position switch (69) and bolts (62, 70).

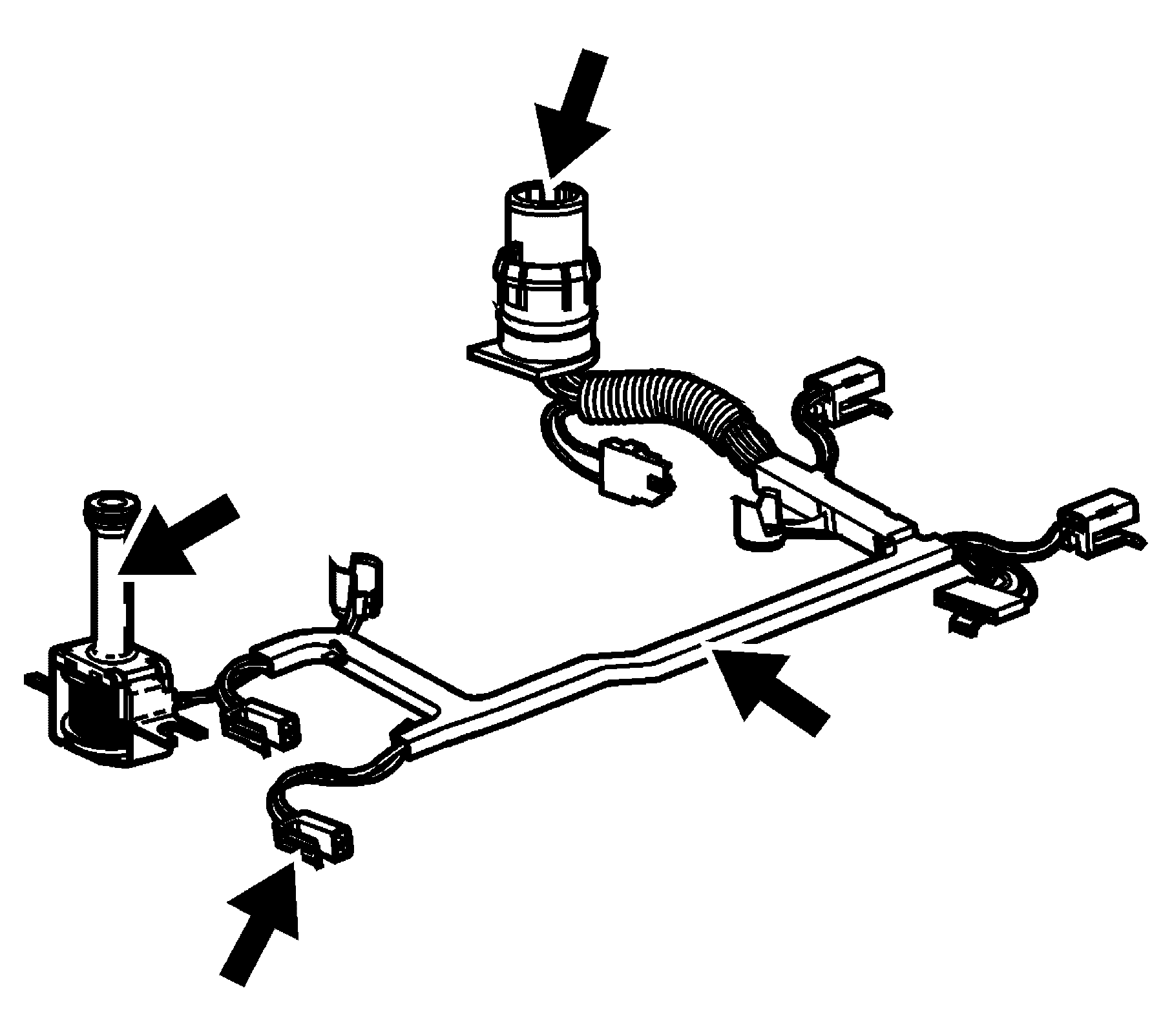

Fig 6: Inspecting Wiring Harness Solenoid Assembly
Courtesy of GENERAL MOTORS CORP.
9. Inspect the wiring harness solenoid assembly for the following conditions:
   • Damage
   • Cracked connectors
   • Exposed wires
   • Loose pins
   • Poor terminal retension

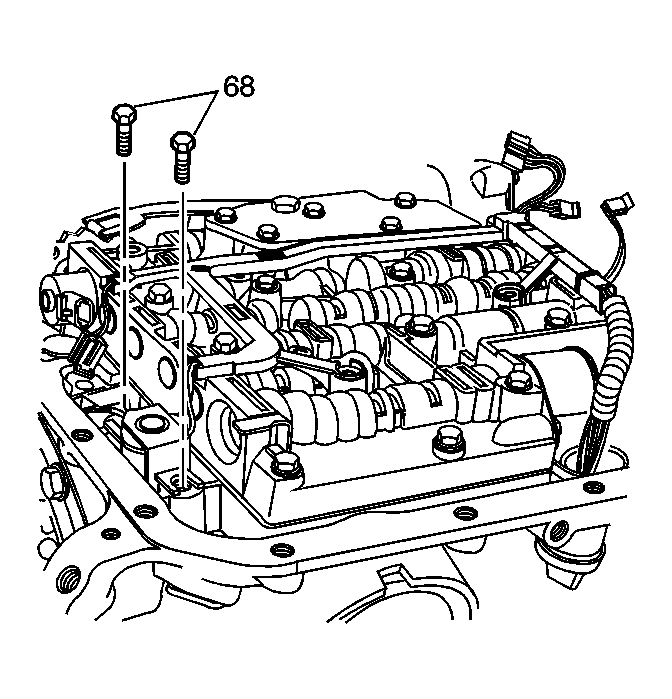

Fig 7: TCC Solenoid Valves & Bolts
Courtesy of GENERAL MOTORS CORP.
10. Install the transmission wiring harness on the valve body.
11. Install the TCC solenoid valve and bolts (68).
Fig 8: Electrical Connectors & Electrical Components
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: You must tighten certain bolts in a spiral pattern as indicated. If you tighten these bolts at random you may distort valve bores. This will inhibit valve operation.
NOTE: Refer to Fastener Notice in Cautions and Notices.
12. Tighten the bolts in the order shown.

    Tighten:  Tighten the bolts to 11 N.m (8 lb ft).

    Each bolt number refers to a specific bolt size, as indicated by the following list:

    • 1 - M6 x 1.0 x 65.0
    • 2 - M6 x 1.0 x 54.4
    • 3 - M6 x 1.0 x 47.5
    • 4 - M6 x 1.0 x 35.0
    • 5 - M8 x 1.25 x 20.0
    • 6 - M6 x 1.0 x 12.0
    • 7 - M6 x 1.0 x 18.0
Fig 9: TCC PWM Solenoid Valve & Solenoid Retainer
Courtesy of GENERAL MOTORS CORP.
13. Install the TCC PWM solenoid valve (396) and the solenoid retainer (395).
Fig 10: Electrical Connectors & Electrical Components
Courtesy of GENERAL MOTORS CORP.
14. Connect all electrical connectors (1-6) to the electrical components.
