Computer/Integrating Systems Component Views

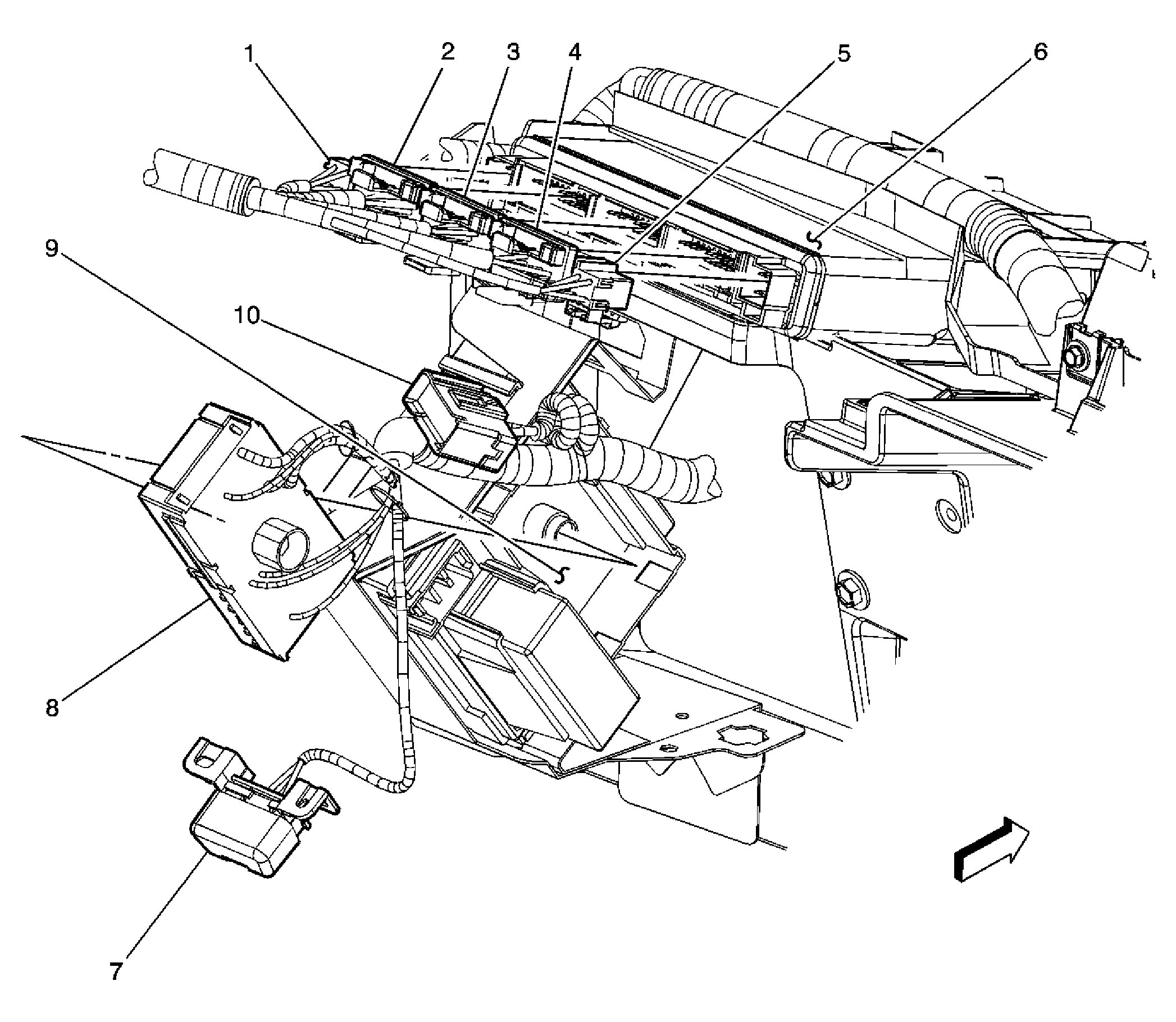

Fig 1: Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	BCM-C1
2	BCM-C2
3	BCM-C4
4	BCM-C3
5	BCM-C5
6	Body Control Module (BCM)
7	Data Link Connector (DLC)
8	Fuse Block-IP-C1
9	Fuse Block-IP
10	Splice Pack SP205
