Power Window Schematics

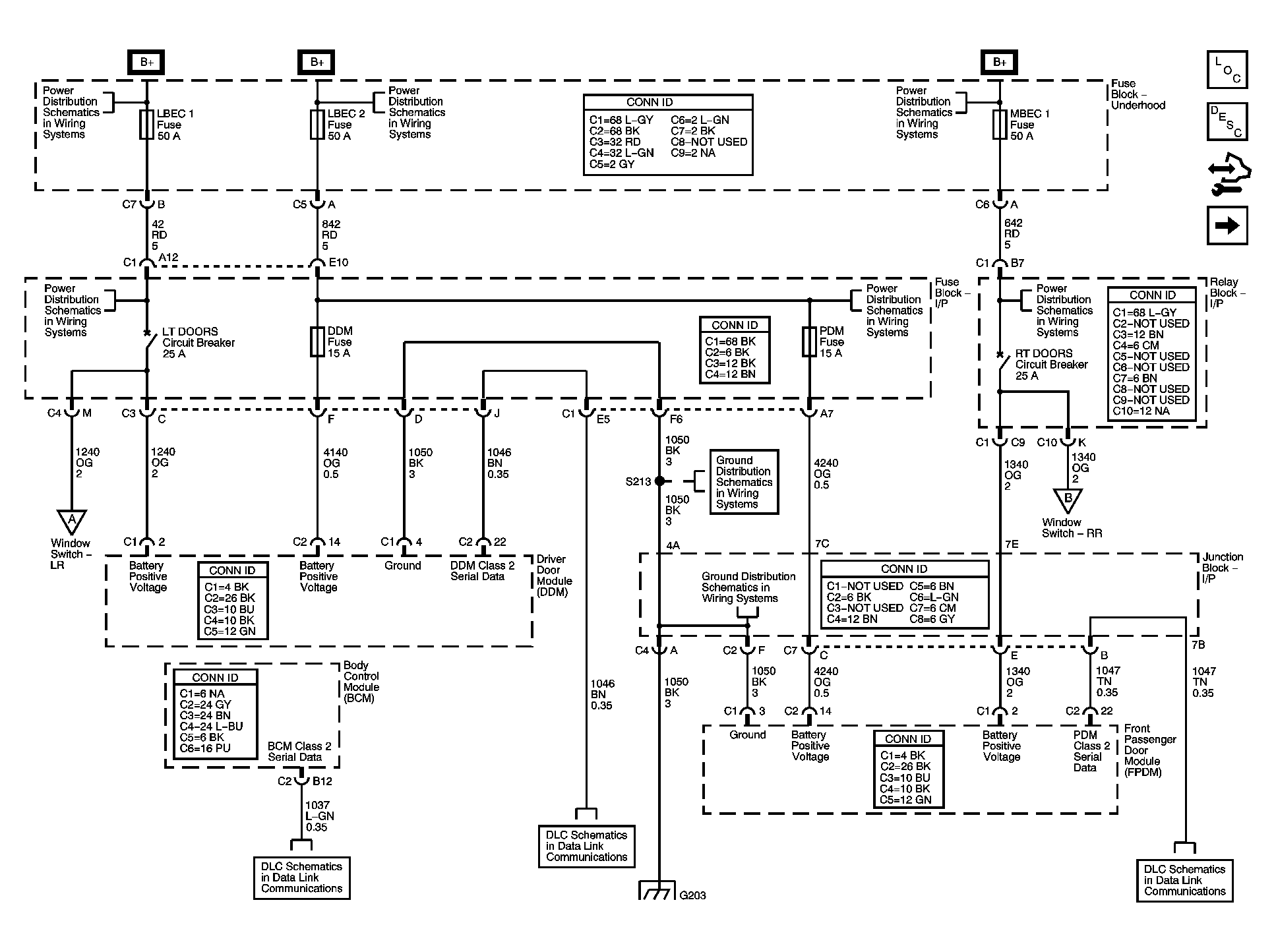

Fig 1: Door Modules - Power, Grounding, and DLC
GM1507265Courtesy of GENERAL MOTORS CORP.

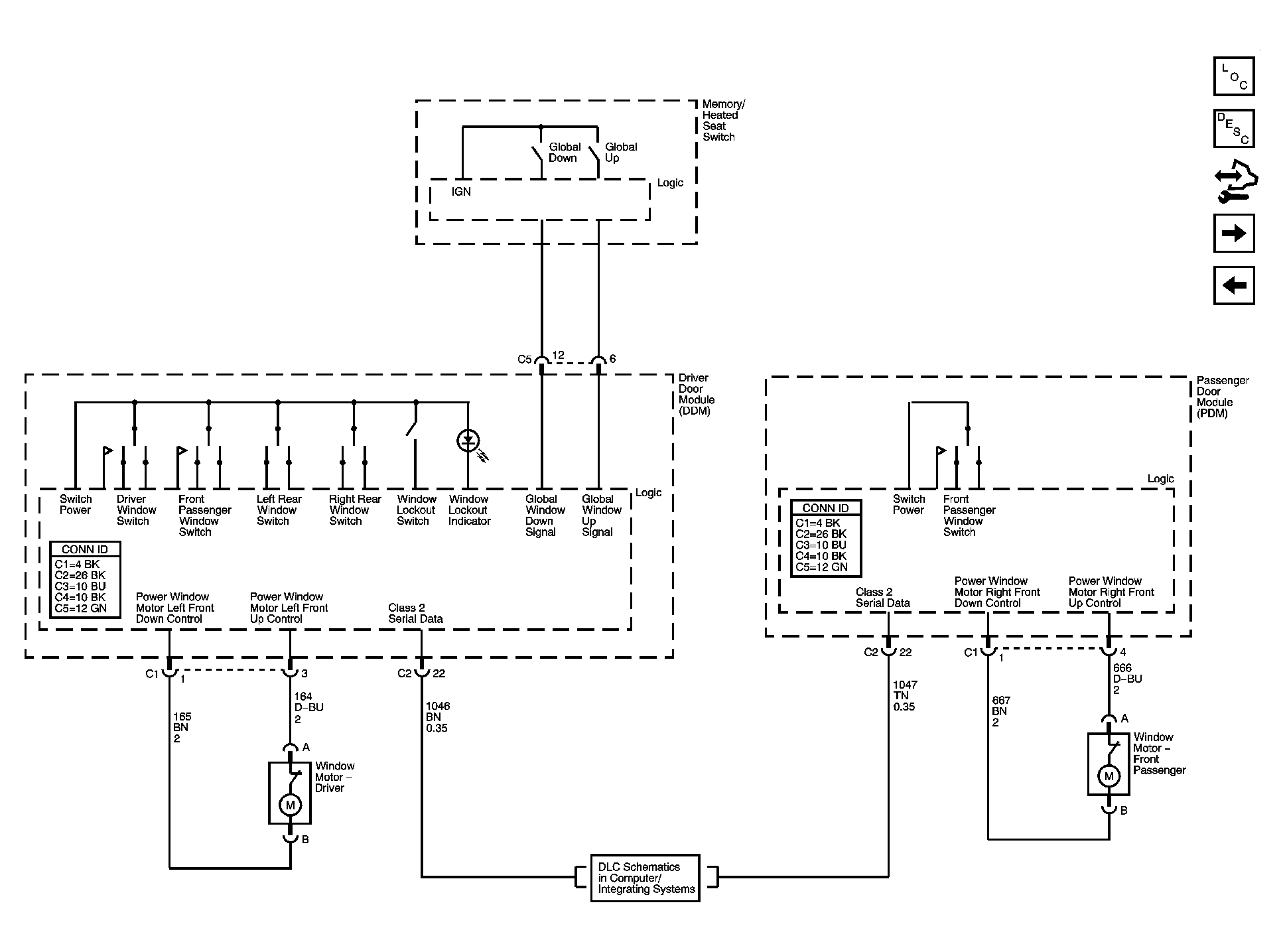

Fig 2: Front Door Windows
GM1507297Courtesy of GENERAL MOTORS CORP.

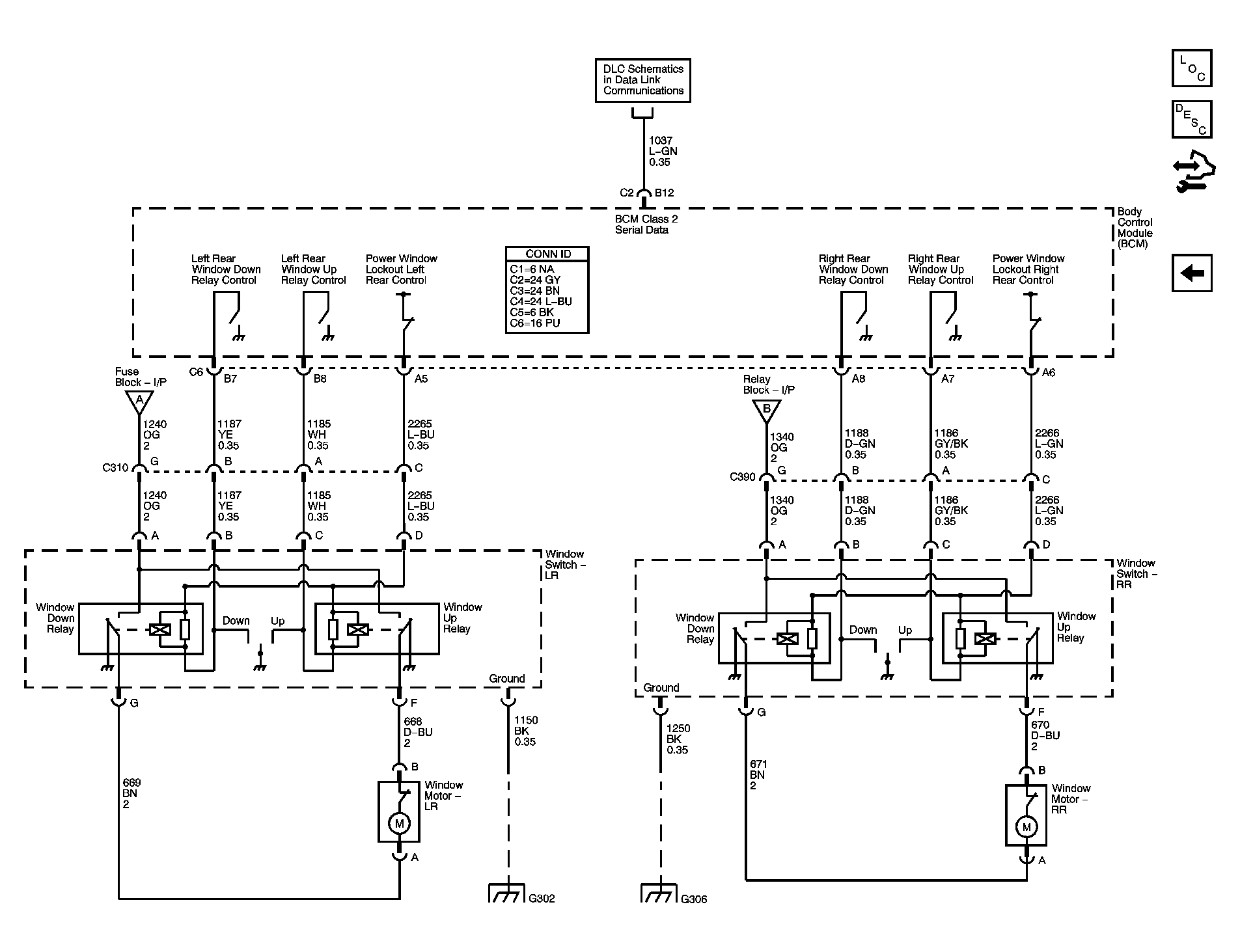

Fig 3: Rear Door Windows
GM1507299Courtesy of GENERAL MOTORS CORP.
