Identification
›
Instrument Panel Fuse Block
Instrument Panel Fuse Block
NOTE:
Instrument panel fuse block is located at left end of instrument panel. See
Fig 1
.
Fig 1: Locating Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Instrument Panel Fuse Block Components
Courtesy of GENERAL MOTORS CORP.

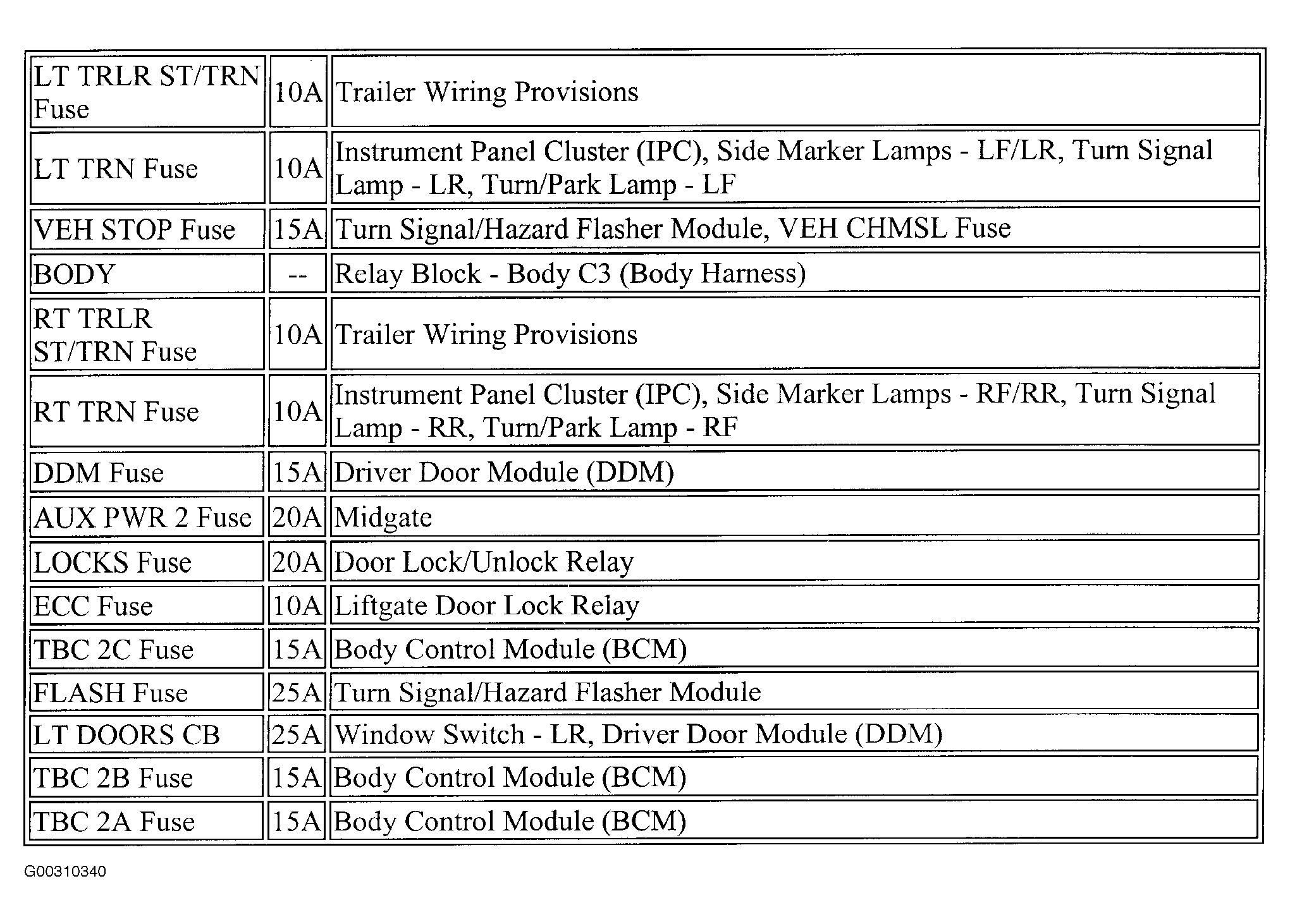

Fig 3: Instrument Panel Fuse Block Legend (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Instrument Panel Fuse Block Legend (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
