Home › Hummer › 2005 › H2 4D Utility Pickup › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission - DTC P0218-P2771 › DTC Tests › DTC P0218 › Notes

DTC P0218: Notes

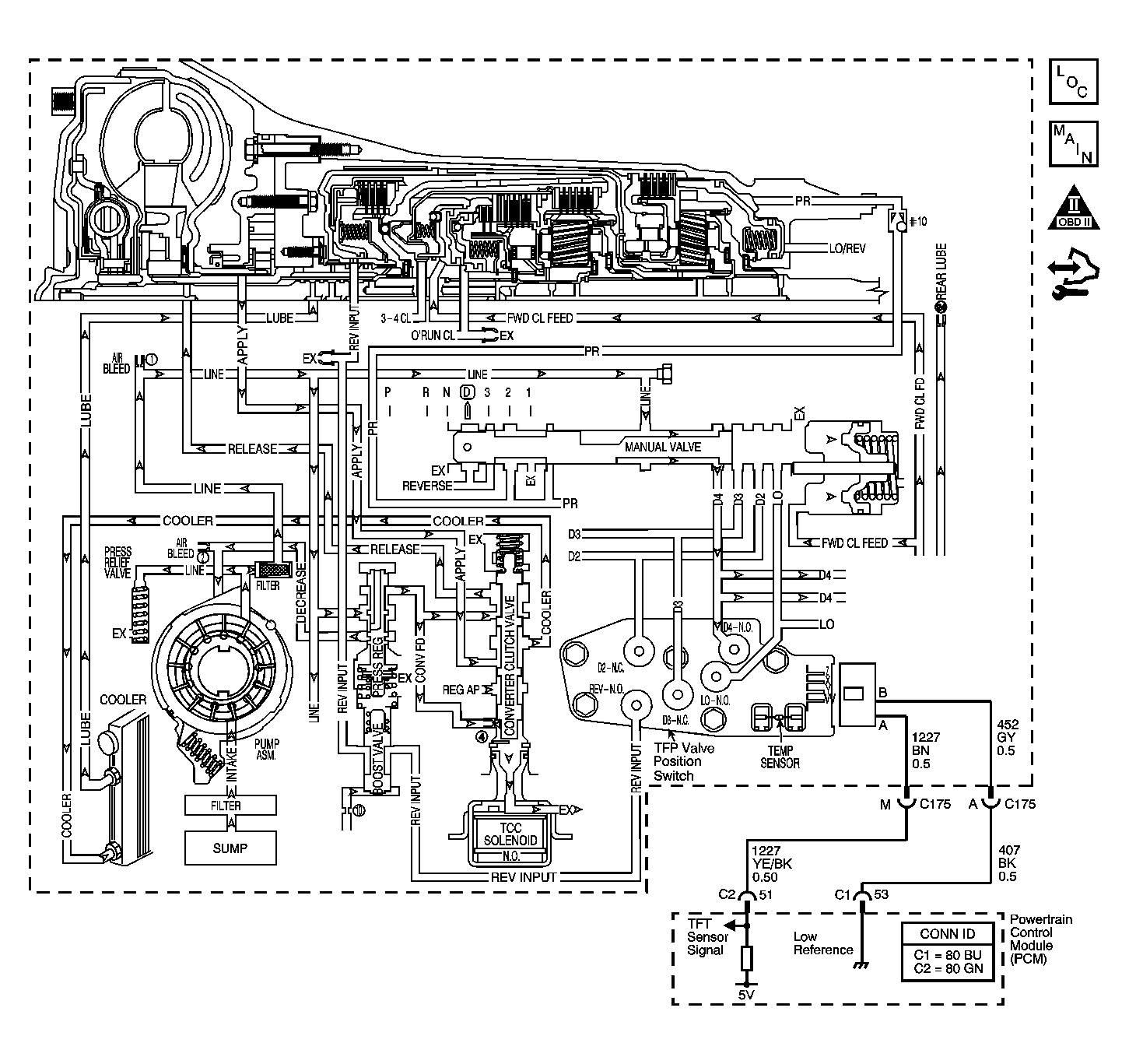

Fig 1: DTC P0218 Schematic
GM1492440Courtesy of GENERAL MOTORS CORP.
