Data Link Connector Schematics

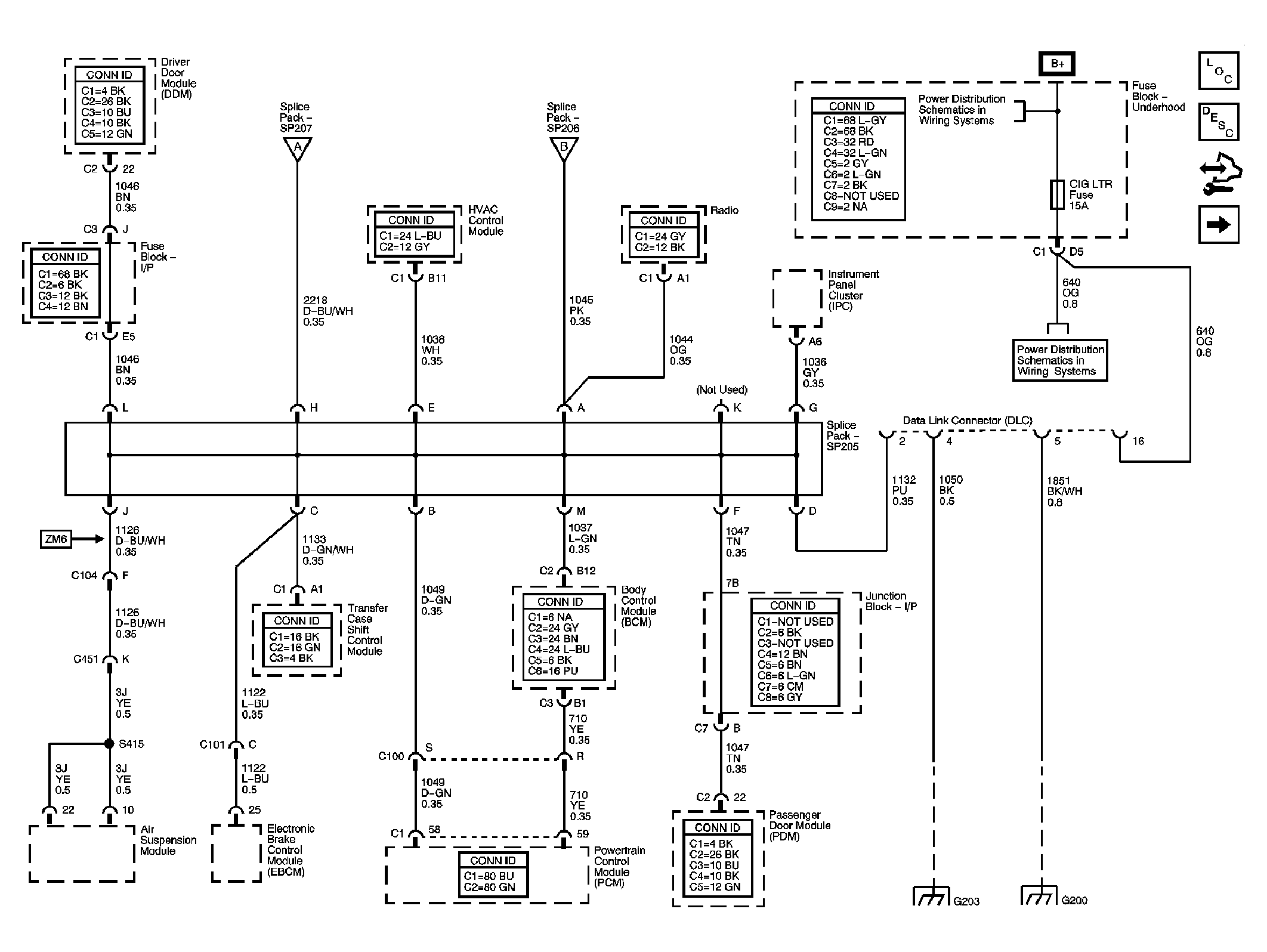

Fig 1: Power, Ground, Data Link Connector, and SP205
GM1566916Courtesy of GENERAL MOTORS CORP.

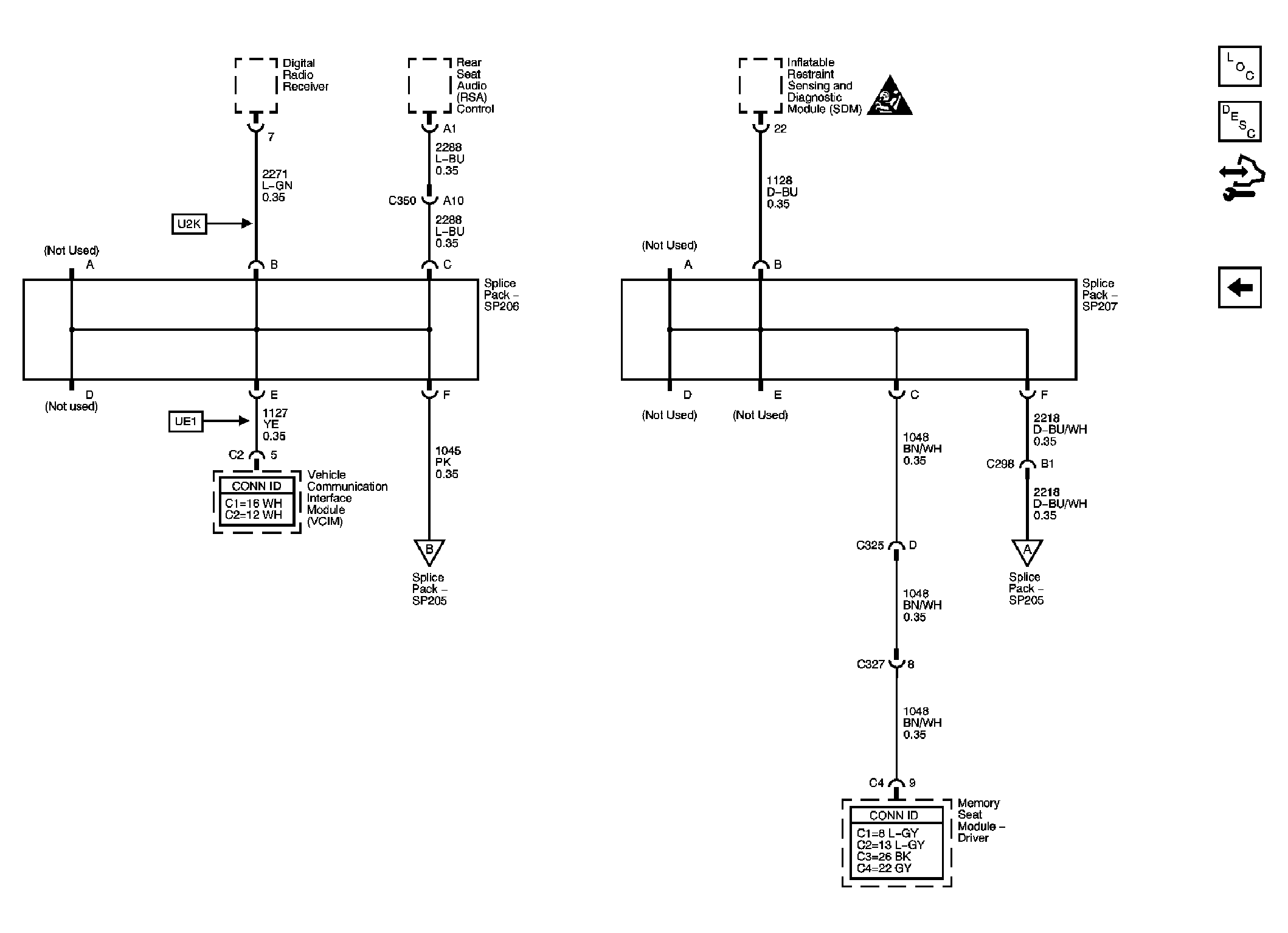

Fig 2: SP206 and SP207
GM1566918Courtesy of GENERAL MOTORS CORP.
