Installation Procedure

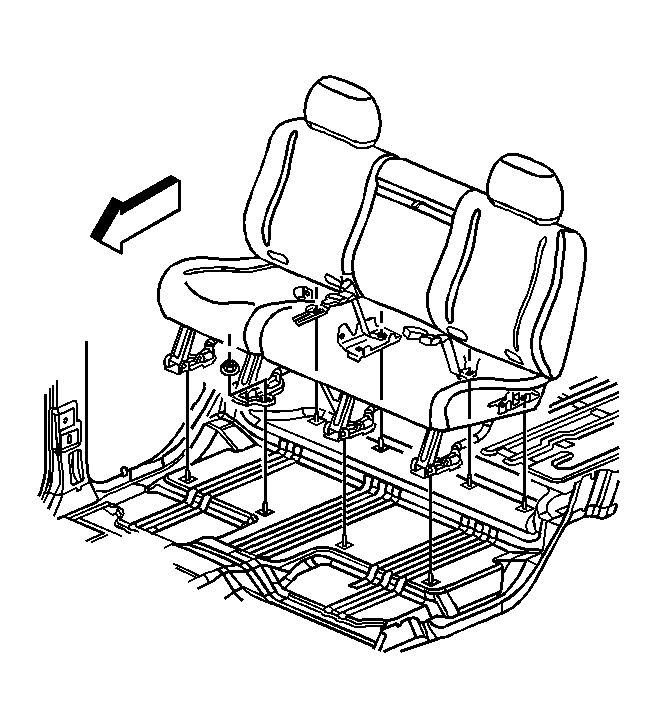

    Fig 1: Rear No. 1 Seat
    GM833553Courtesy of GENERAL MOTORS CORP.
  1. Install the seat into the vehicle.
  2. Fold the seat cushions forward.
    3. NOTE: Refer to Fastener Notice.
  3. Install the seat retaining bolts.

    Tighten:  Tighten the bolts to 55 N.m (41 lb ft).

  4. Connect the electrical connectors, if equipped.
  5. Fold the seat cushion back to the closed position.
