Installation Procedure

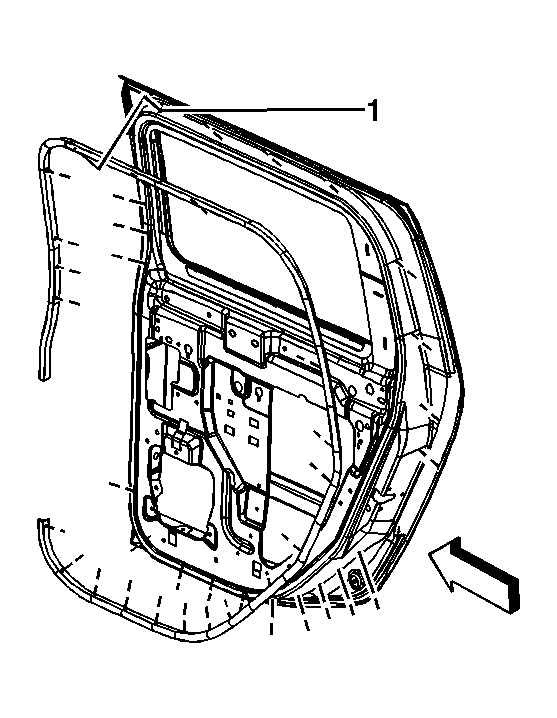

    Fig 1: Rear Door Weatherstrip
    GM839397Courtesy of GENERAL MOTORS CORP.
  1. Install weatherstrip by securing the 22 retainers into their correct locating holes (1) on the door.
  2. Close the doors.
