Installation Procedure
- Install EBCM if replacing the BPMV only. Refer to Electronic Brake Control Module Replacement .
- Install BPMV (2) and EBCM as an assembly into the BPMV bracket. Align the flats of the studs on the BPMV with the BPMV bracket.
- Install the 2 BPMV to BPMV bracket nuts.
Tighten: Tighten the 2 BPMV to BPMV bracket nuts to 12 N.m (8 lb ft).

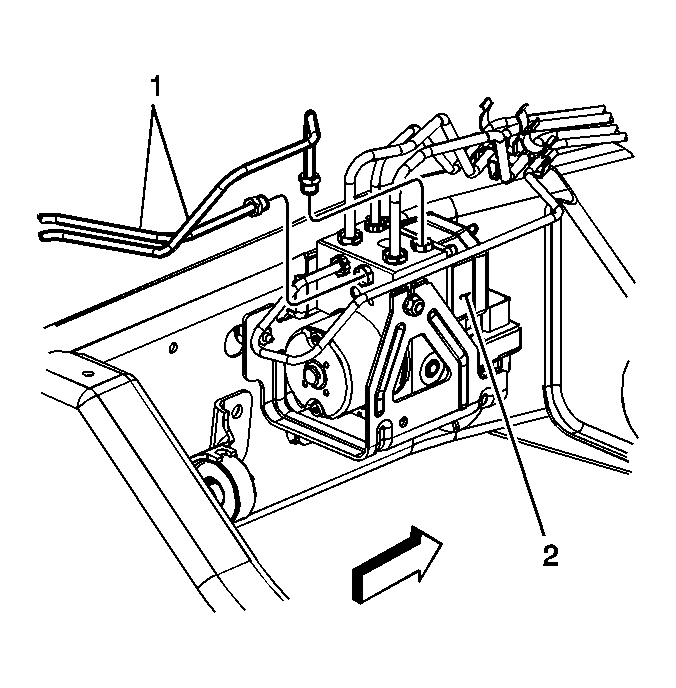

- Connect the left front and the master cylinder brake pipes (1) to the BPMV (2).

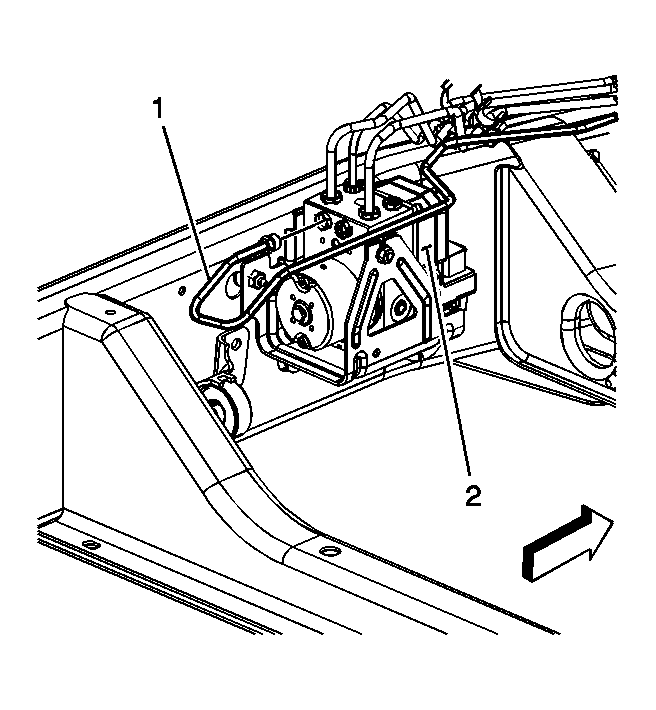

- Connect the rear brake pipes (1) to the BPMV (2).
- Connect the right front brake pipe (1) to the BPMV (2).
Tighten: Tighten all of the brake pipe fittings to 15 N.m (11 lb ft).
- Connect the EBCM harness connector.
- Lower the vehicle.
- Fill and bleed the brake hydraulic system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
- Turn the ignition switch to the RUN position, engine OFF.
- Perform the vehicle diagnostic system check. Refer to Diagnostic System Check - Vehicle .
NOTE:
Refer to Fastener Notice
.
CAUTION:
Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.
IMPORTANT:
If a new BPMV is being installed, remove the shipping plugs from the valve openings in the compartment during the next step.
IMPORTANT:
Use the locations noted during removal.
