Lumbar Support Knob Replacement

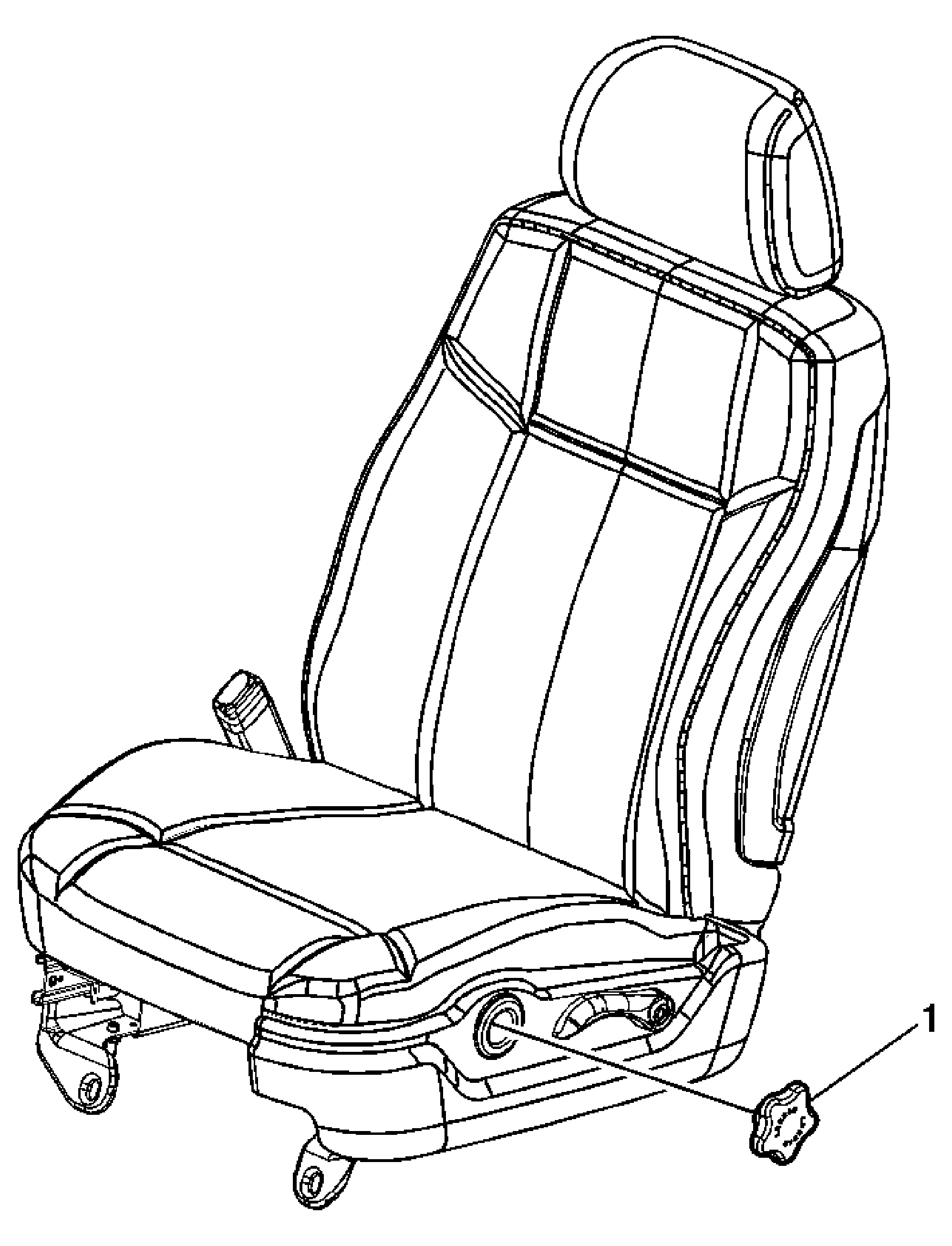

Fig 1: Lumbar Support Knob Replacement

Courtesy of GENERAL MOTORS CORP.

Lumbar Support Knob Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Knob, Lumbar Support Actuator Tip:  Pull away from the seat to remove.
