Sunroof Switch Replacement

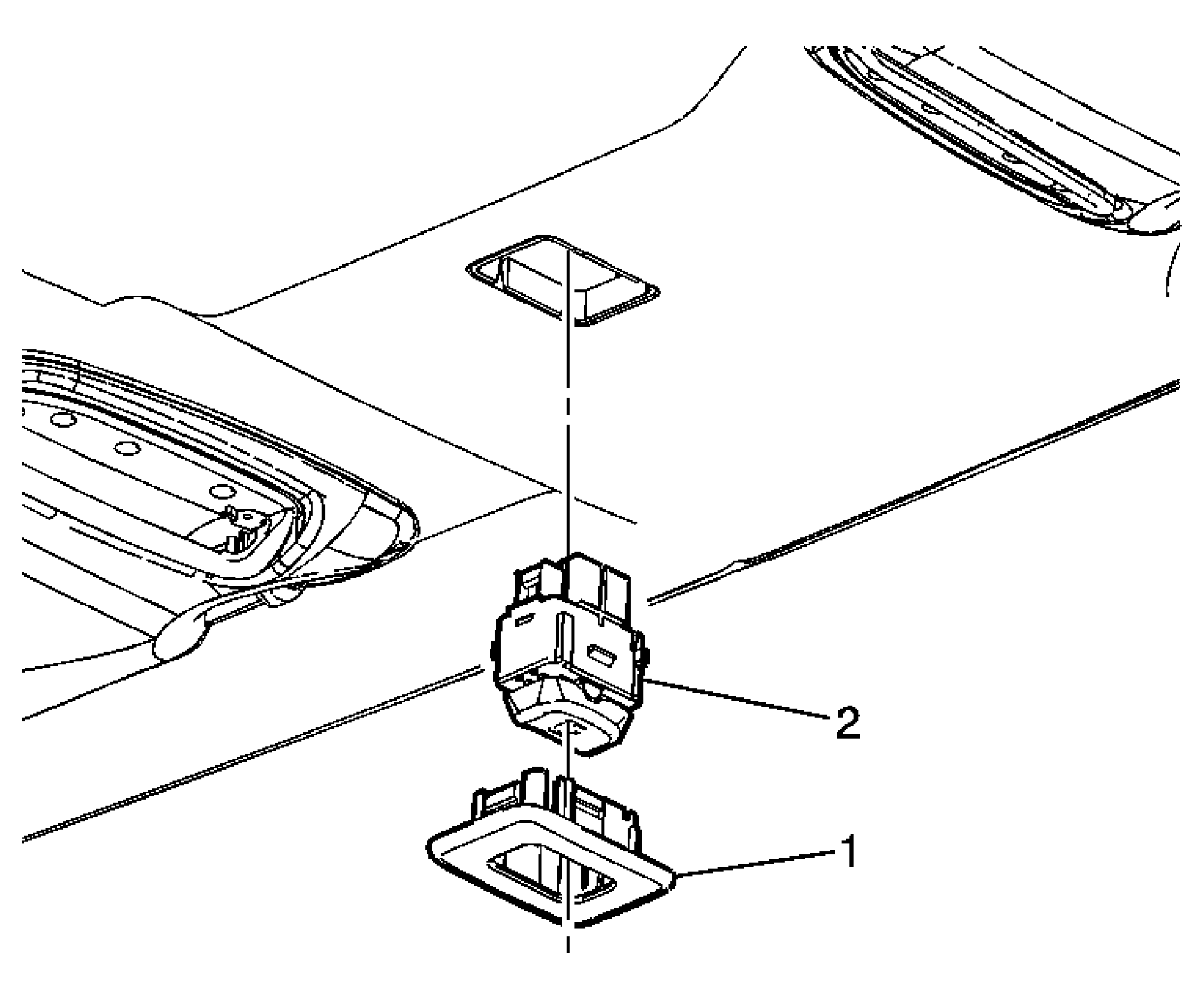

Fig 1: Sunroof Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Sunroof Switch Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Bezel, Sunroof Switch Tip:  Pry the bezel with a flat-bladed tool.
2	Switch, Sunroof Tip:  Disconnect the electrical connector.
