Door Handle Replacement - Front Inside
Door Handle Replacement - Front Inside

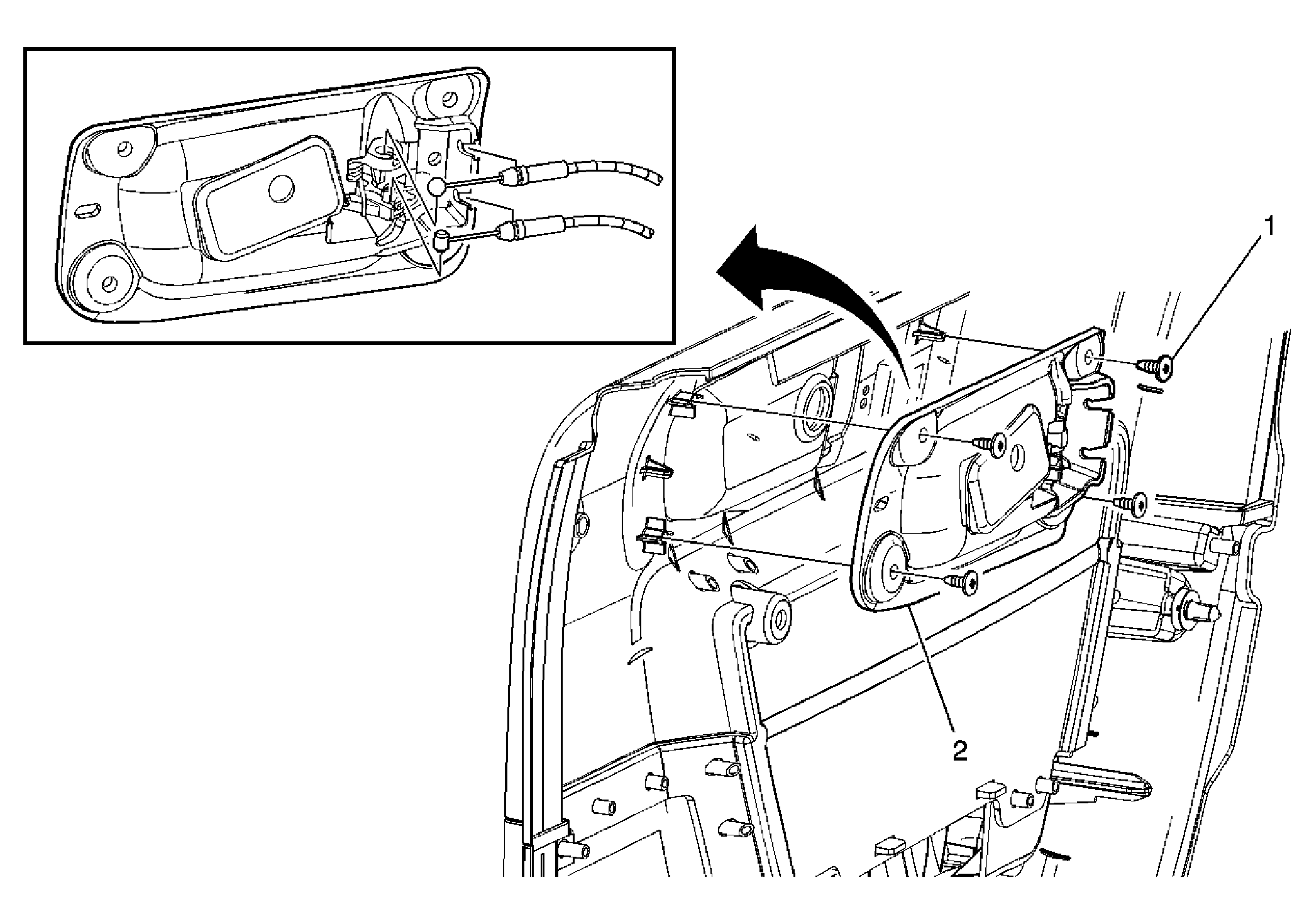

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Screw, Inside Door Handle Tighten: 2 N.m (18 lb in) |
| 2 | Handle Assembly, Inside Door |
