Front Side Door Outside Handle Housing Replacement

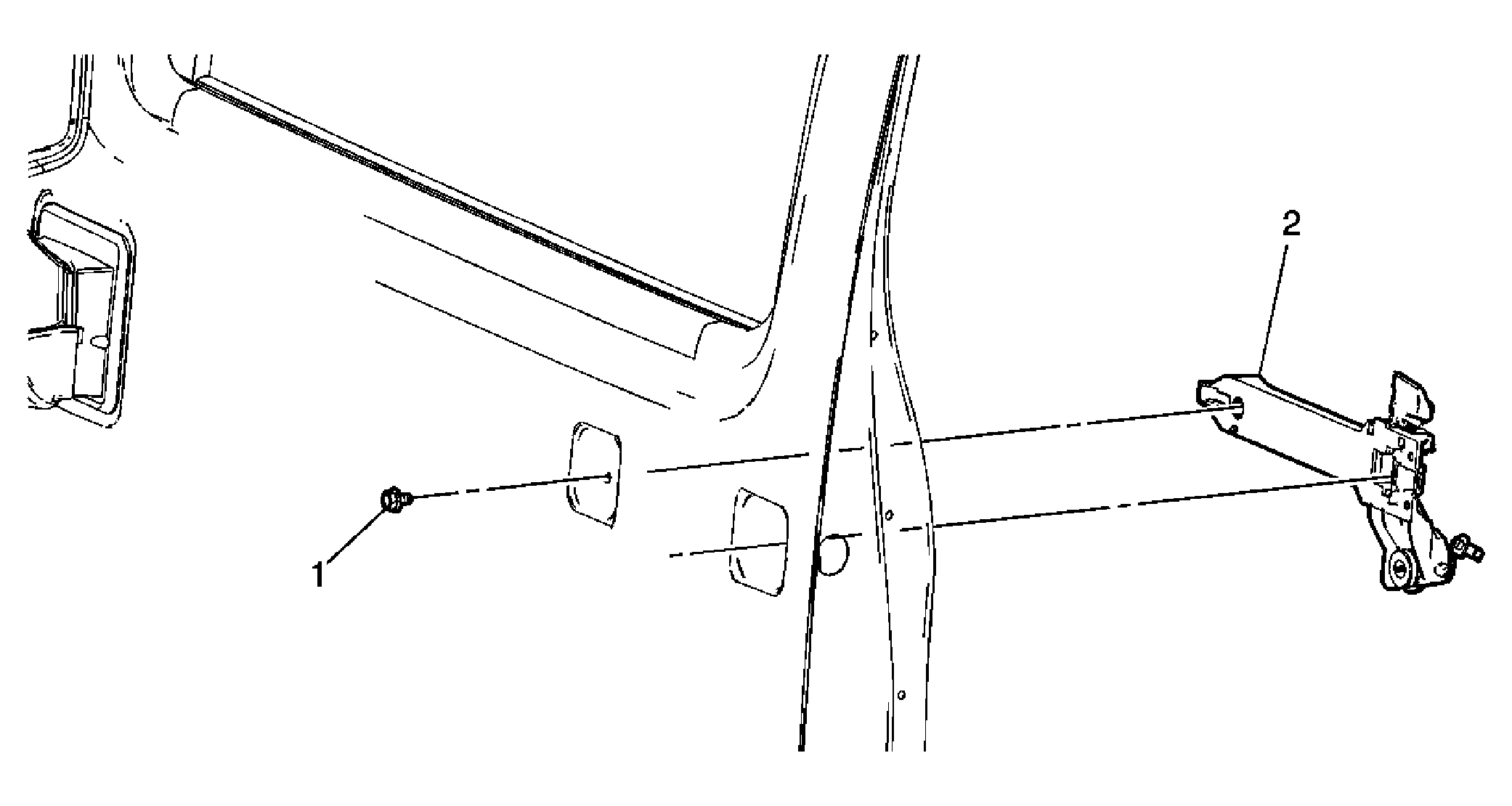

Fig 1: Front Side Door Outside Handle Housing Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the water deflector. Refer to Water Deflector Replacement - Front Door . Remove the outside door handle. Refer to Door Handle Replacement - Front Outside .
1	Bolt, Front Side Door Lock Housing Tighten: 7 N.m (62 lb in)
2	Housing, Front Door Handle Tip: Disconnect the lock and handle rods to remove the housing. Transfer the lock cylinder to the new housing. Refer to Lock Cylinder Replacement - Door .

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the outside door handle. Refer to Door Handle Replacement - Front Outside .

Bolt, Front Side Door Lock Housing

Tighten: 7 N.m (62 lb in)

Housing, Front Door Handle
Tip:

Disconnect the lock and handle rods to remove the housing.
Transfer the lock cylinder to the new housing. Refer to Lock Cylinder Replacement - Door .
