Power Window Schematics

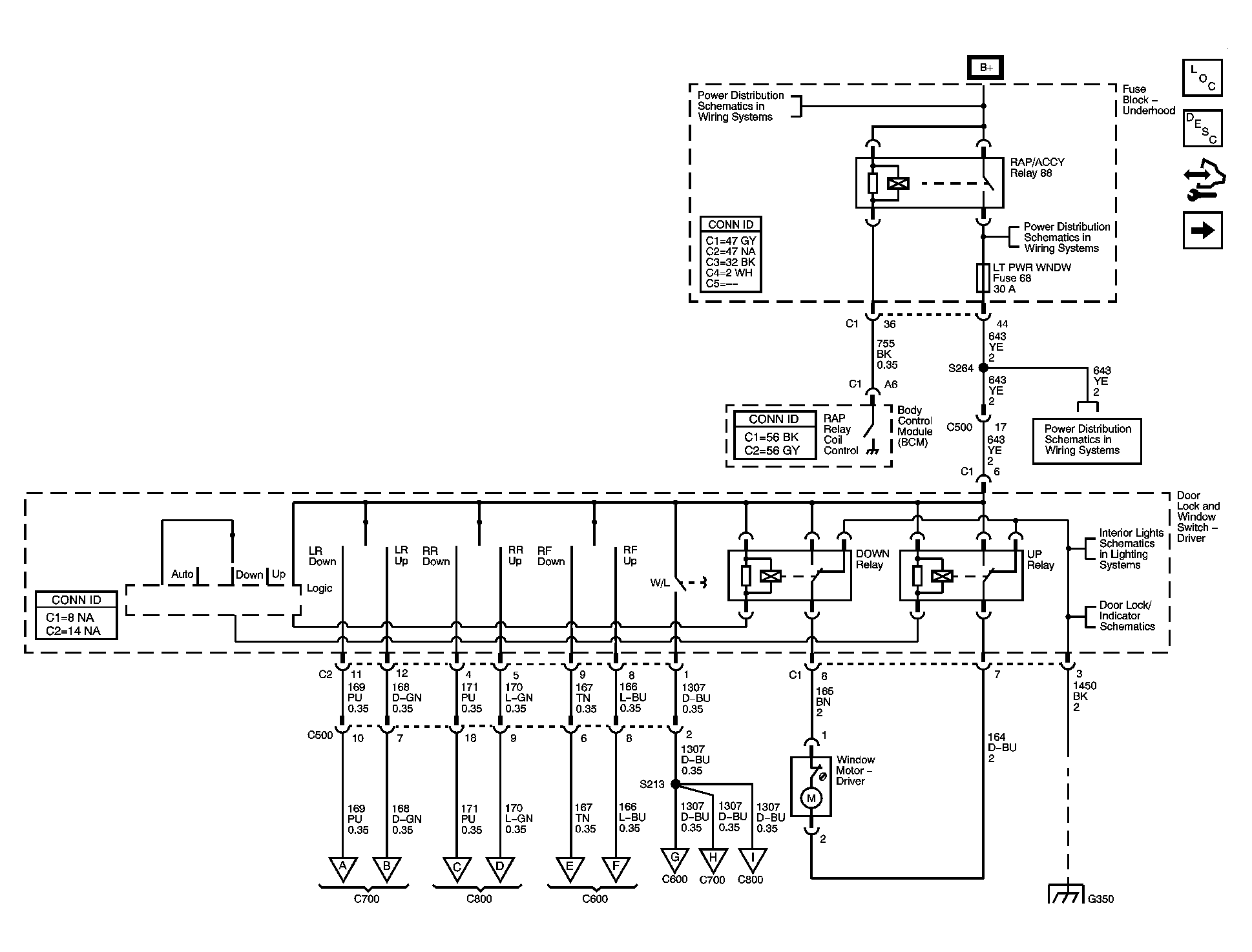

Fig 1: Driver Door
GM1566521Courtesy of GENERAL MOTORS CORP.
Fig 2: Front Passenger Door
GM1566522Courtesy of GENERAL MOTORS CORP.

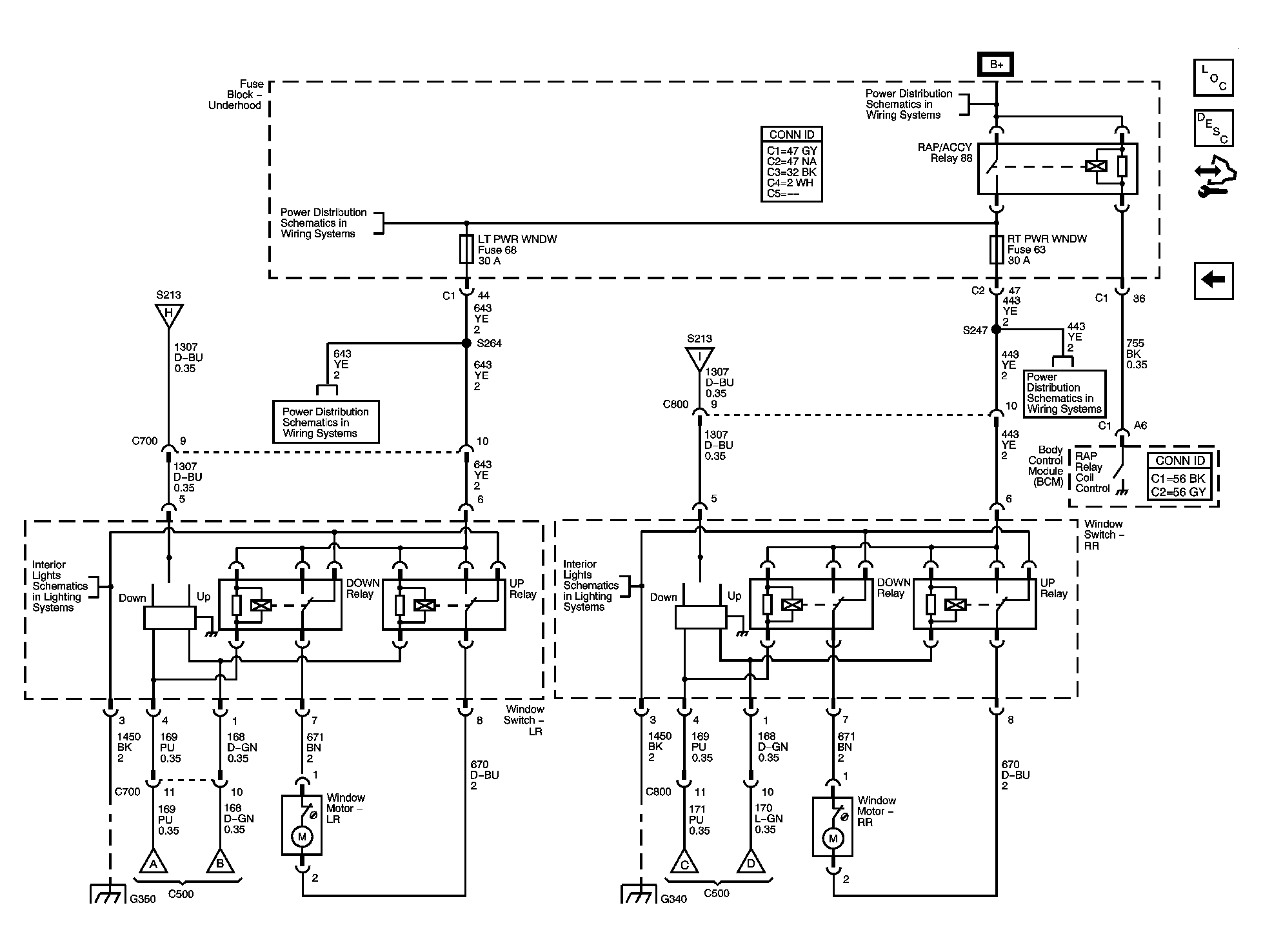

Fig 3: Rear Doors
GM1566523Courtesy of GENERAL MOTORS CORP.
