Console Replacement

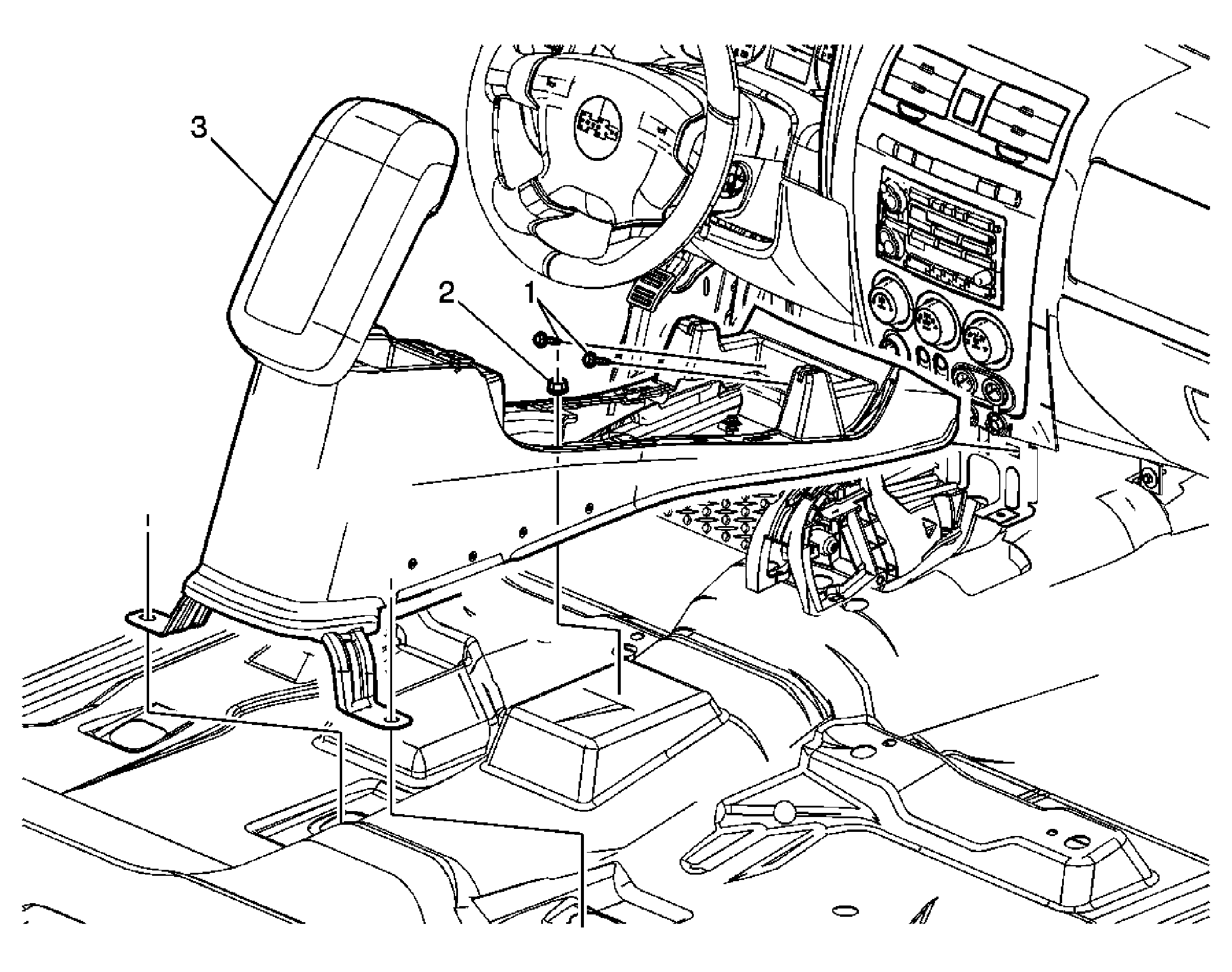

Fig 1: Console Replacement

Courtesy of GENERAL MOTORS CORP.

Console Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front seats. Refer to Seat Replacement - Front Bucket . Remove the console upper trim plate. Refer to Trim Plate Replacement - Console Upper (Manual Transmission) or Trim Plate Replacement - Console Upper (Automatic Transmission) .
1	Screw, Front Floor Console (Qty: 5) Tighten:: 2 N.m (18 lb in)
2	Console Assembly, Front Floor

Callout

Component Name

NOTE: Refer to Fastener Notice in Cautions and Notices.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Screw, Front Floor Console (Qty: 5)

Tighten:: 2 N.m (18 lb in)

Console Assembly, Front Floor
