Ignition and Start Switch Replacement Document

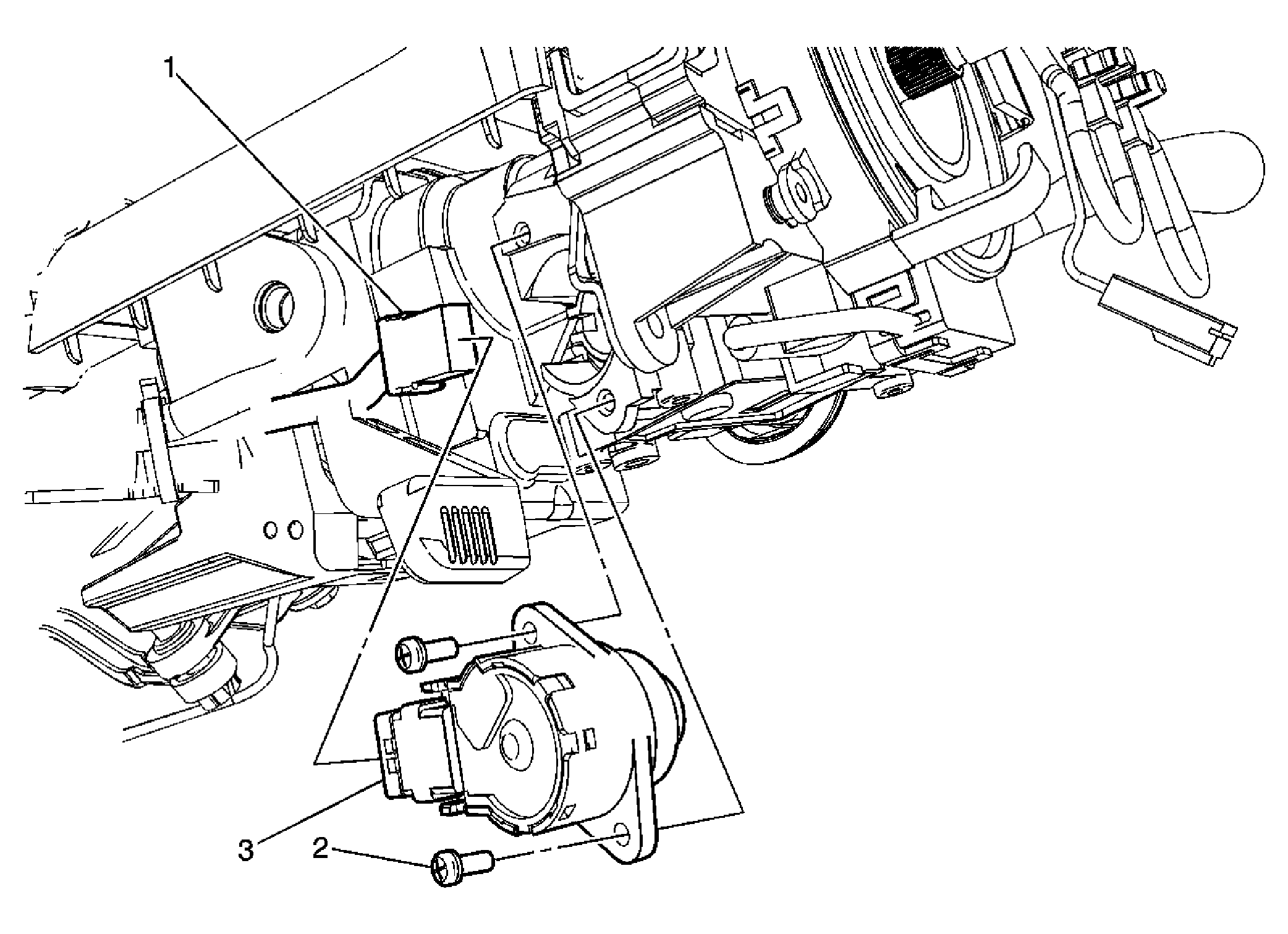

Fig 1: Ignition and Start Switch Replacement
GM1749570Courtesy of GENERAL MOTORS CORP.

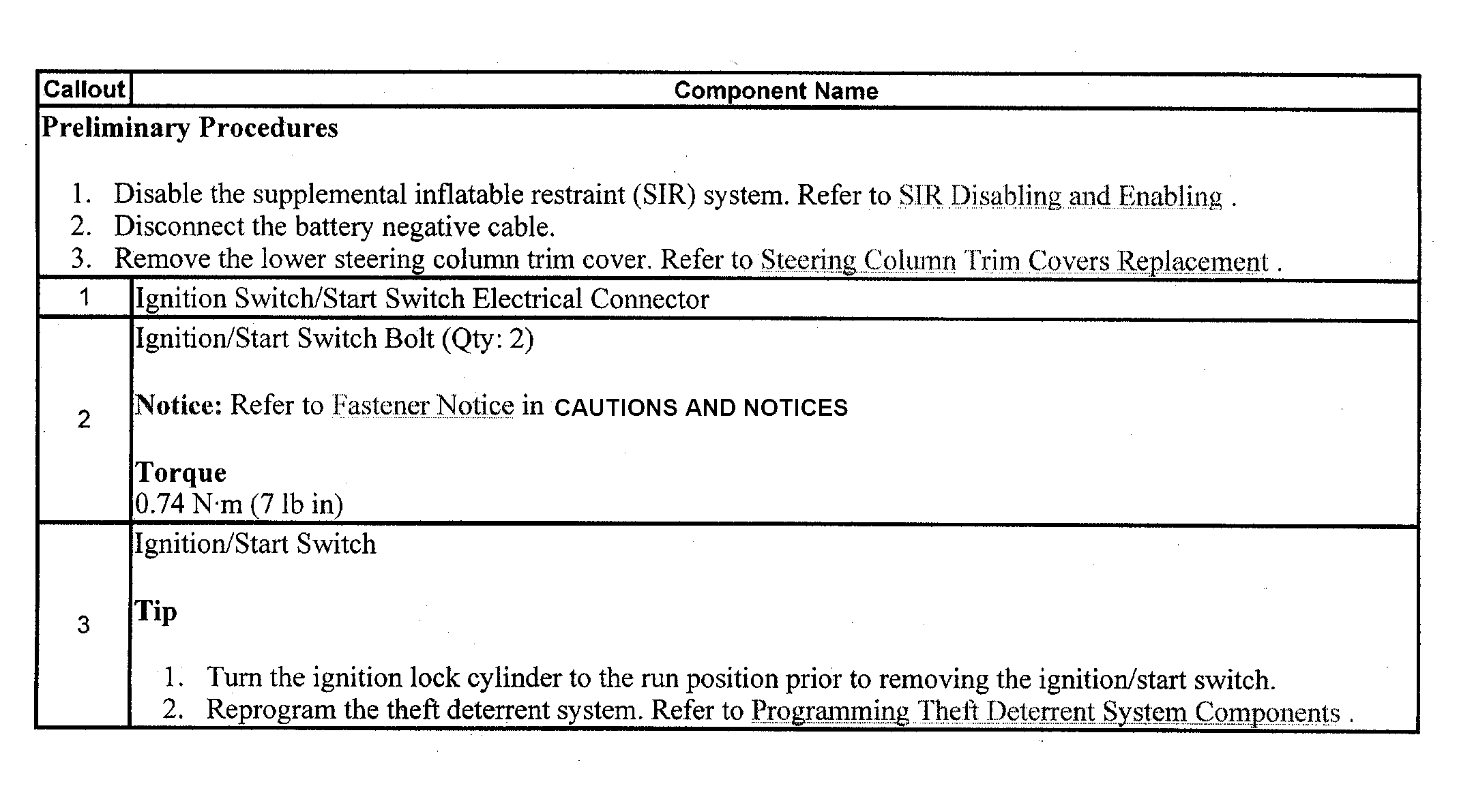

Fig 2: Callouts And Preliminary Procedures For Fig 1
G00312694Courtesy of GENERAL MOTORS CORP.
