Entertainment Component Views
| Callout | Component Name |
|---|---|
| 1 | Cellular and Navigation Antenna |
| 2 | Digital Radio Receiver |
| 3 | Radio Antenna |
| 4 | Speaker - RF Tweeter |
| 5 | Base Antenna Coax Connectors |
| 6 | Digital Radio Coax Connectors |
| 7 | Vehicle Communication Interface Module (VCIM) Coax Connectors |
| 8 | Speaker-RF Door |
| 9 | Speaker-RR Door |
| 10 | Vehicle Communication Interface Module (VCIM) |
| 11 | Speaker-LR Door |
| 12 | Speaker-Subwoofer |
| 13 | Audio Amplifier |
| 14 | Speaker-RF Door |
| 15 | Radio |
| 16 | Speaker - LF Tweeter |

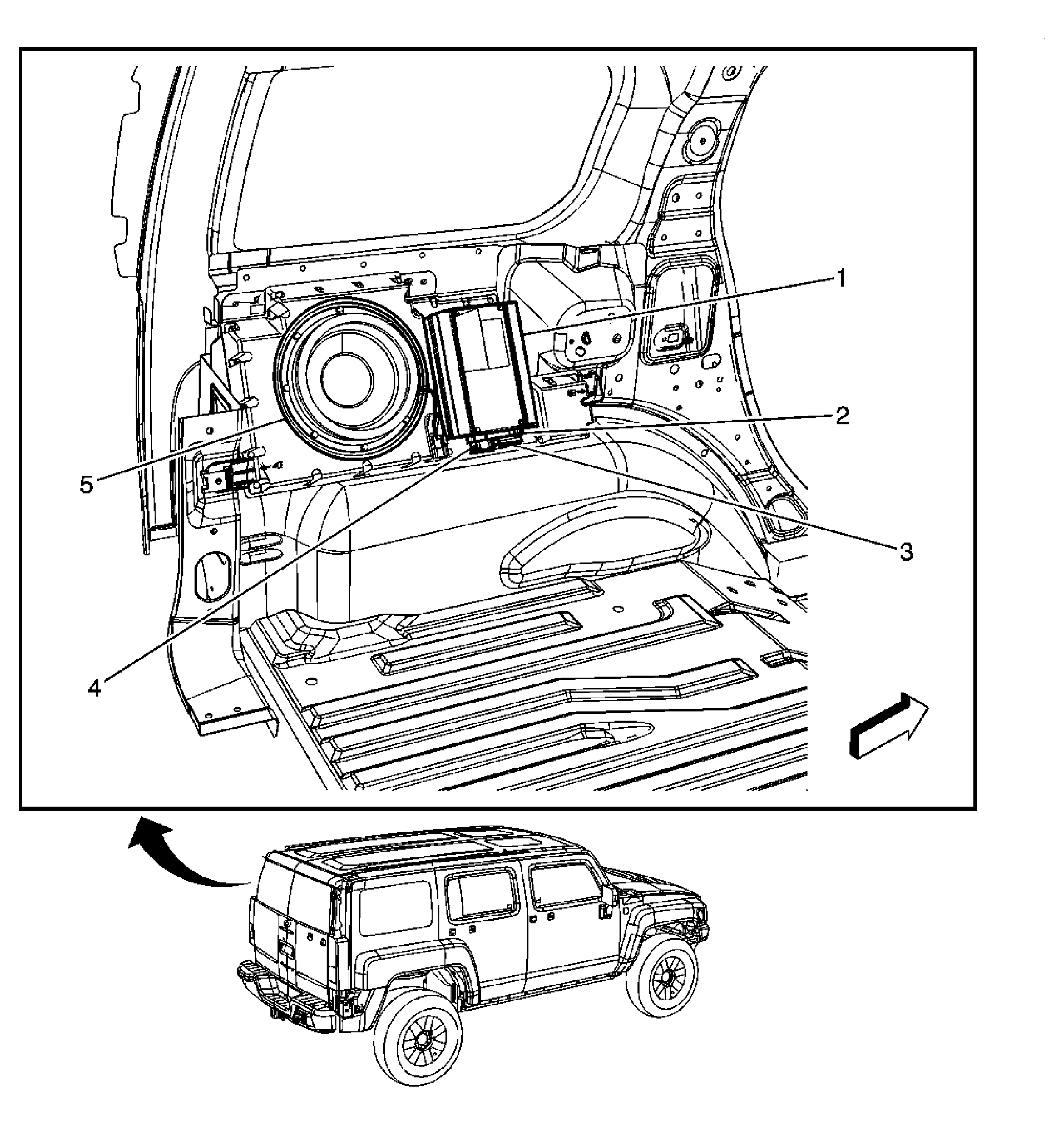

| Callout | Component Name |
|---|---|
| 1 | Audio Amplifier |
| 2 | Audio Amplifier - C1 |
| 3 | Audio Amplifier - C2 |
| 4 | Audio Amplifier - C3 |
| 5 | Speaker - Subwoofer |
