Ground Distribution Schematics

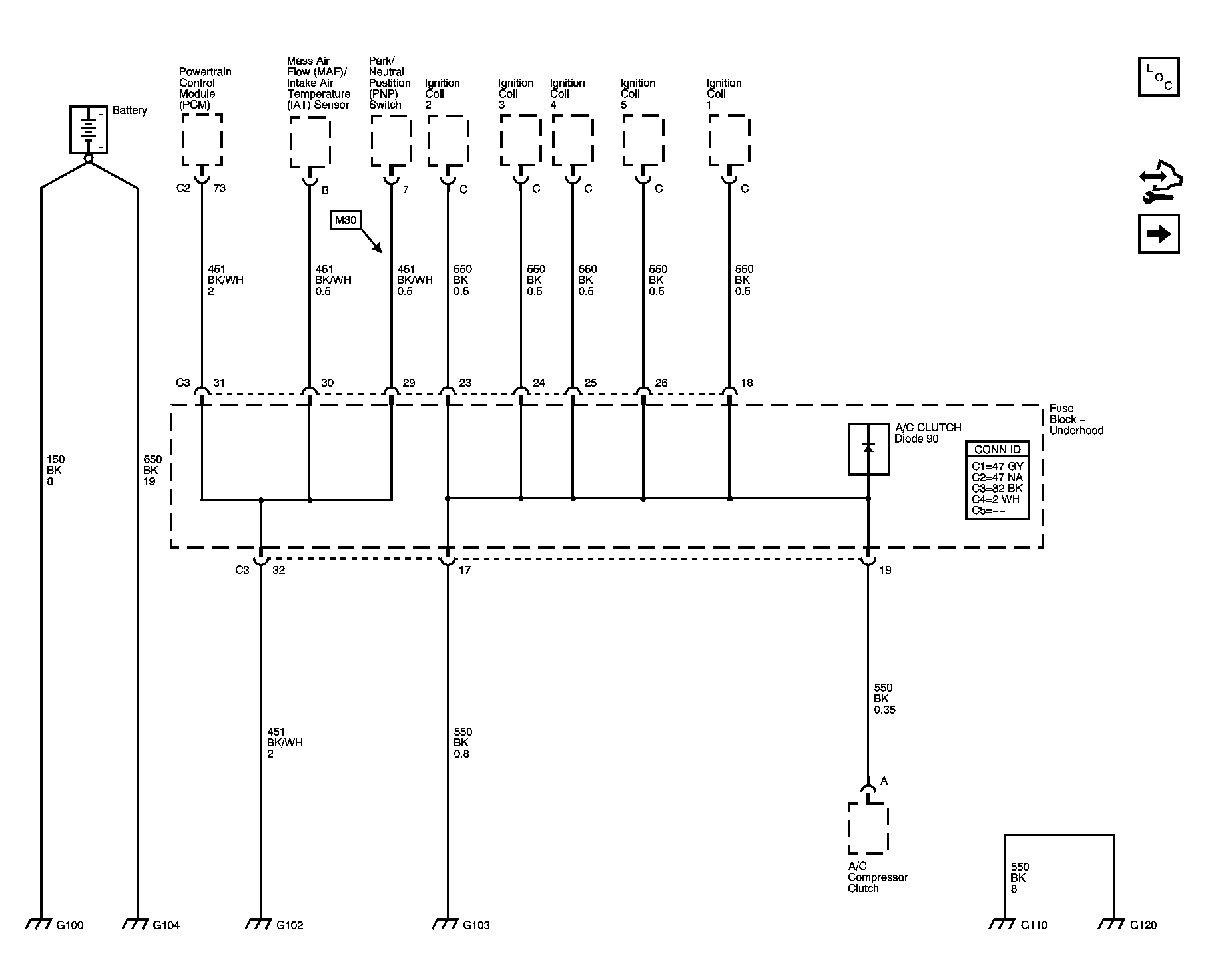

Fig 1: G100, G102, G103, G104, G110, and G120

Courtesy of GENERAL MOTORS CORP.

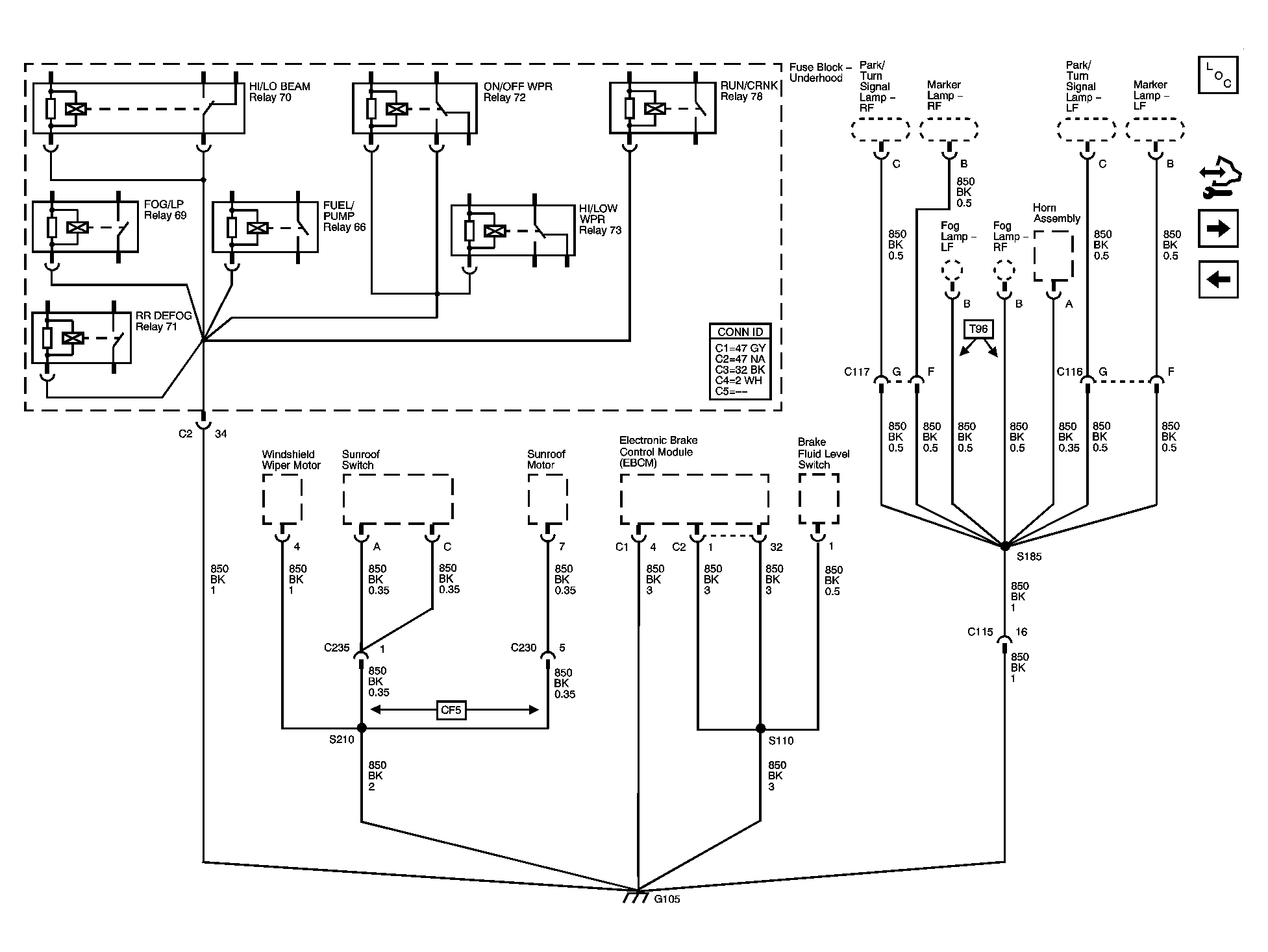

Fig 2: G105

Courtesy of GENERAL MOTORS CORP.

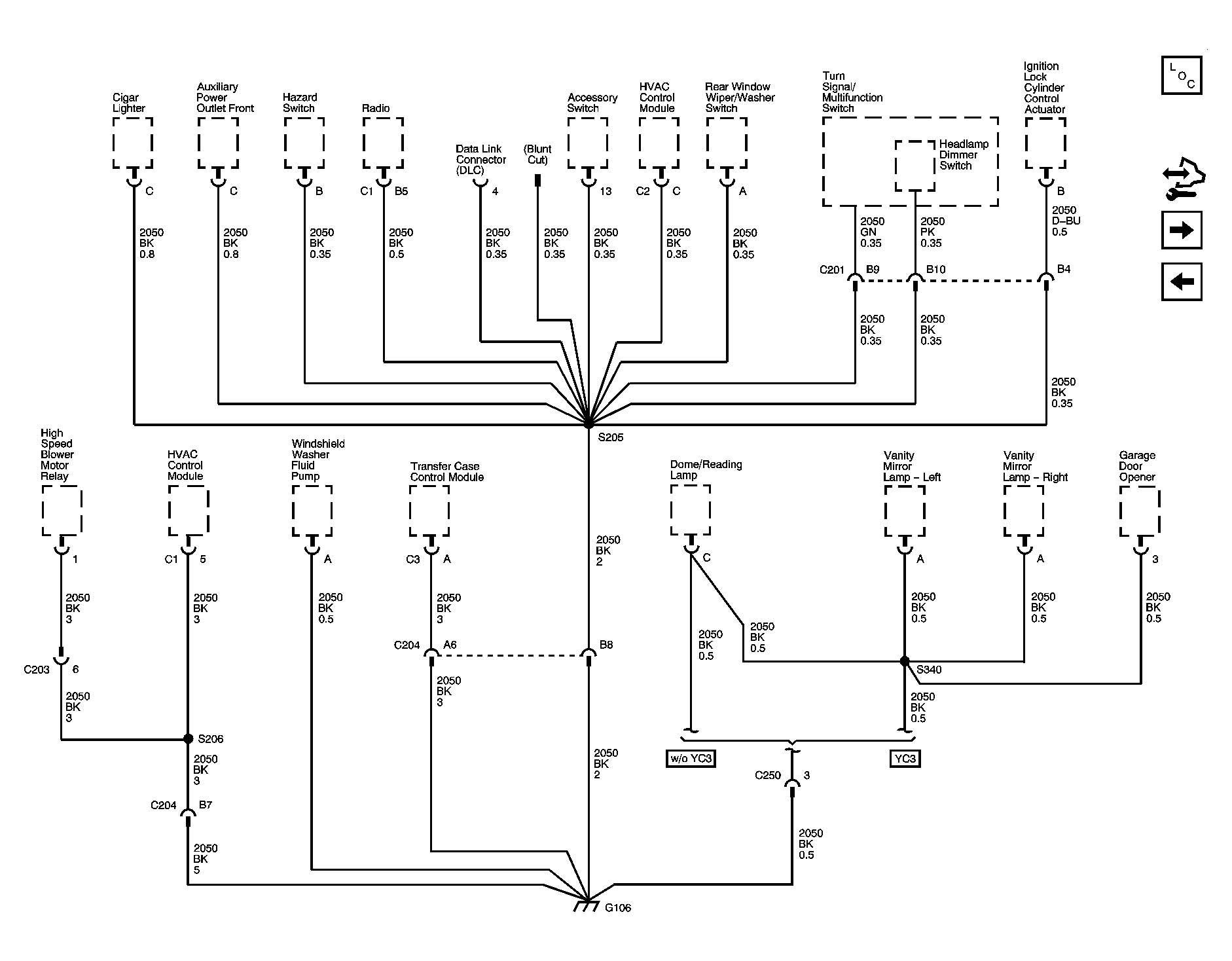

Fig 3: G106

Courtesy of GENERAL MOTORS CORP.

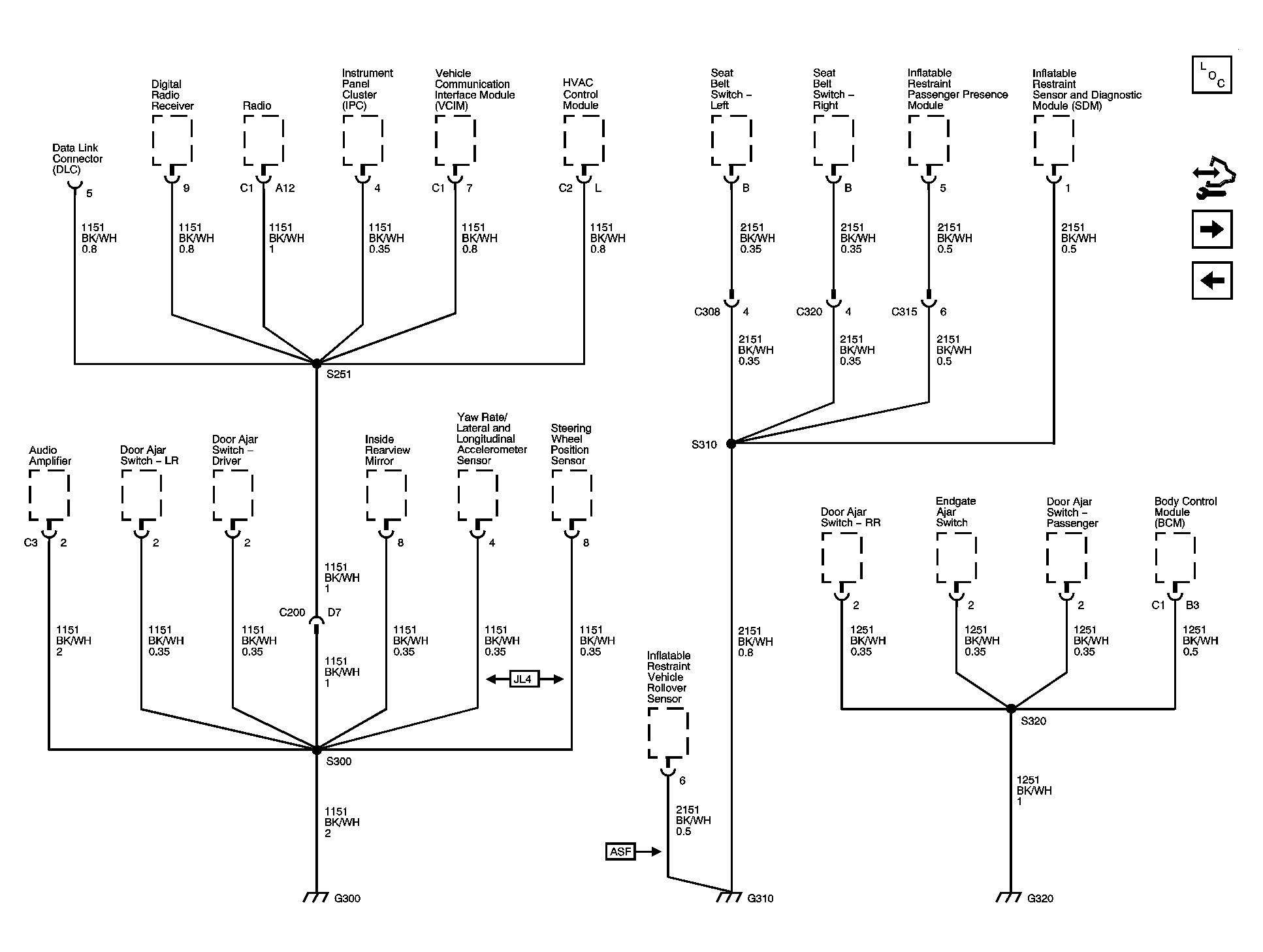

Fig 4: G300, G310, and G320

Courtesy of GENERAL MOTORS CORP.

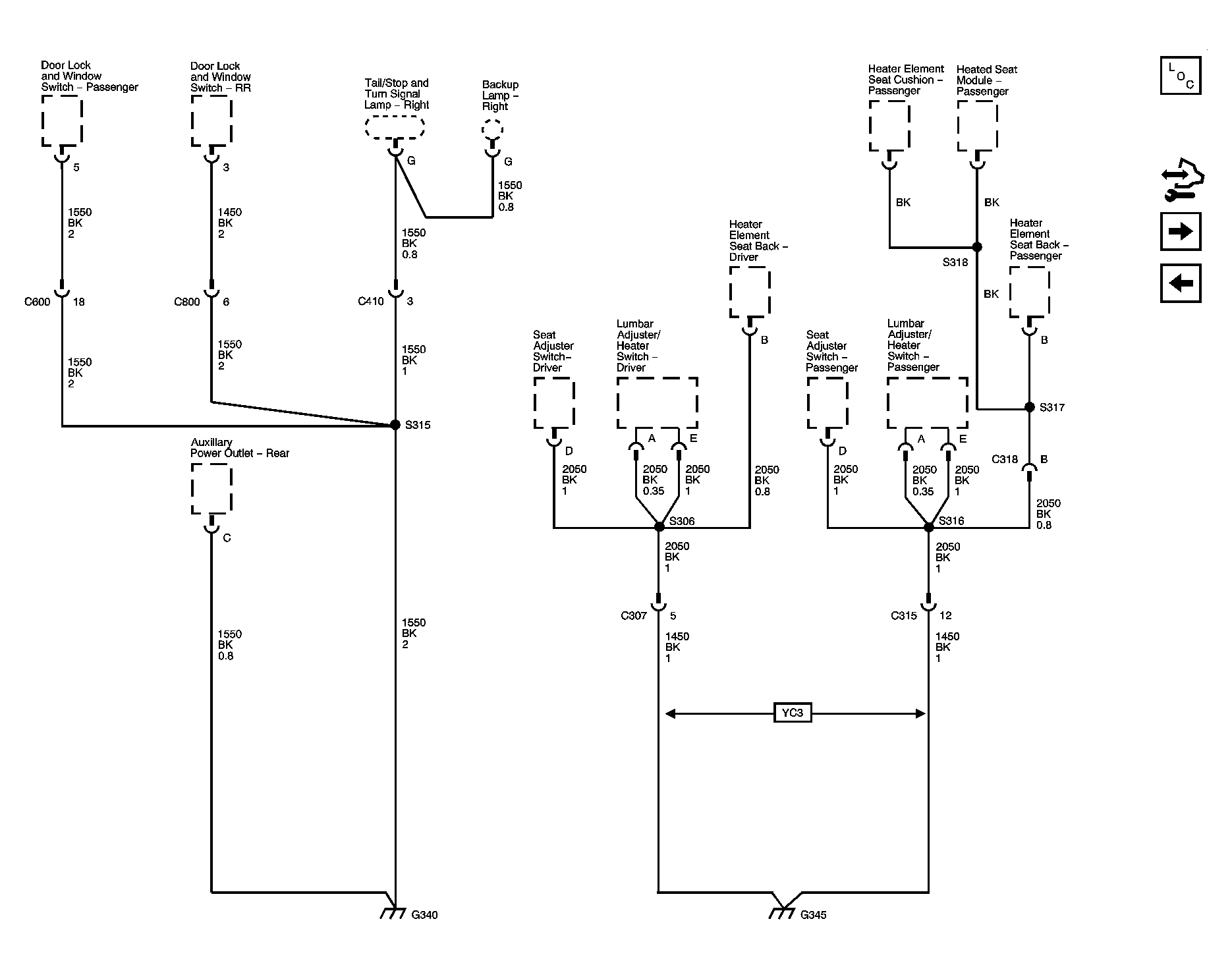

Fig 5: G340 and G345

Courtesy of GENERAL MOTORS CORP.

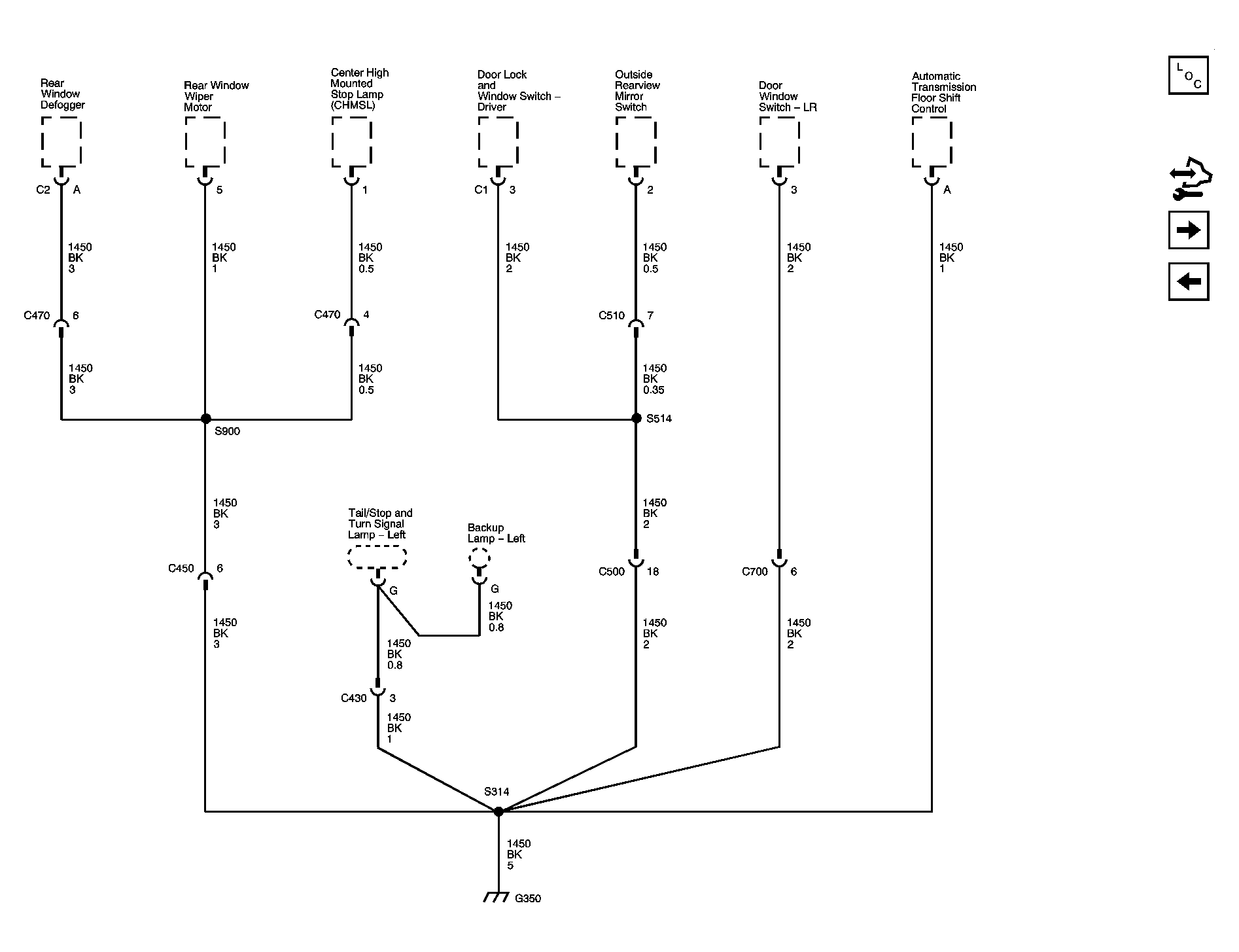

Fig 6: G350

Courtesy of GENERAL MOTORS CORP.

Fig 7: G420

Courtesy of GENERAL MOTORS CORP.
