Installation Procedure

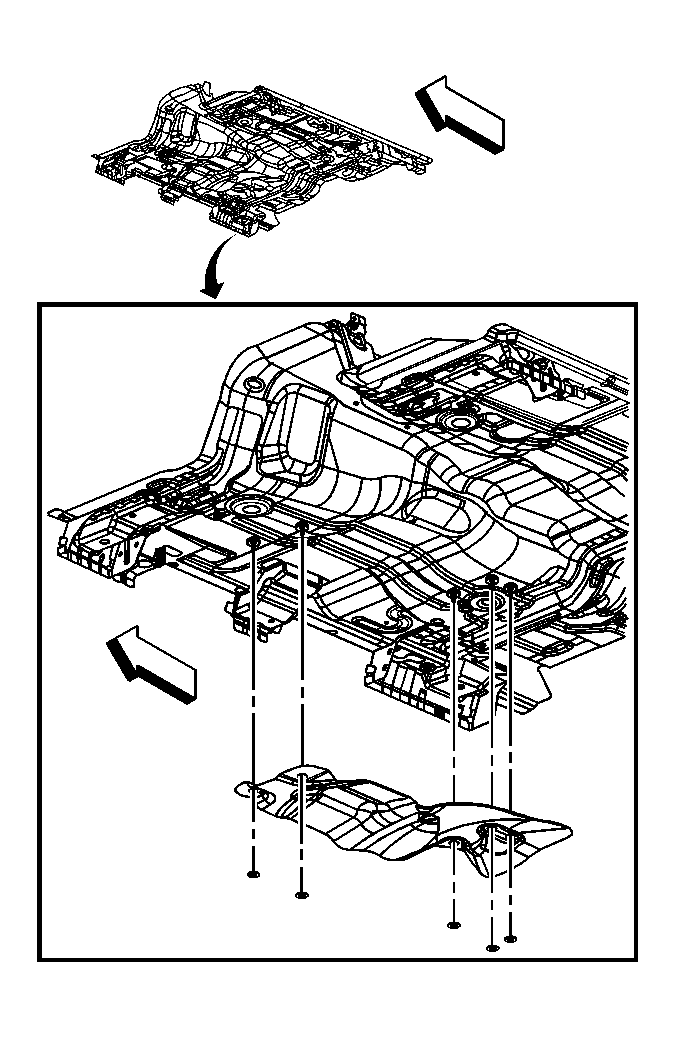

    Fig 1: Catalytic Converter Heat Shield At Floor Panel
    GM1560124Courtesy of GENERAL MOTORS CORP.
  1. Position the catalytic converter heat shield to the floor panel studs.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nuts securing the heat shield to the floor panel.

    Tighten:  Tighten the nuts to 9 N.m (80 lb in).

  3. Lower the vehicle.
