Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Front Fender

Courtesy of GENERAL MOTORS CORP.

Position the fender to the vehicle.

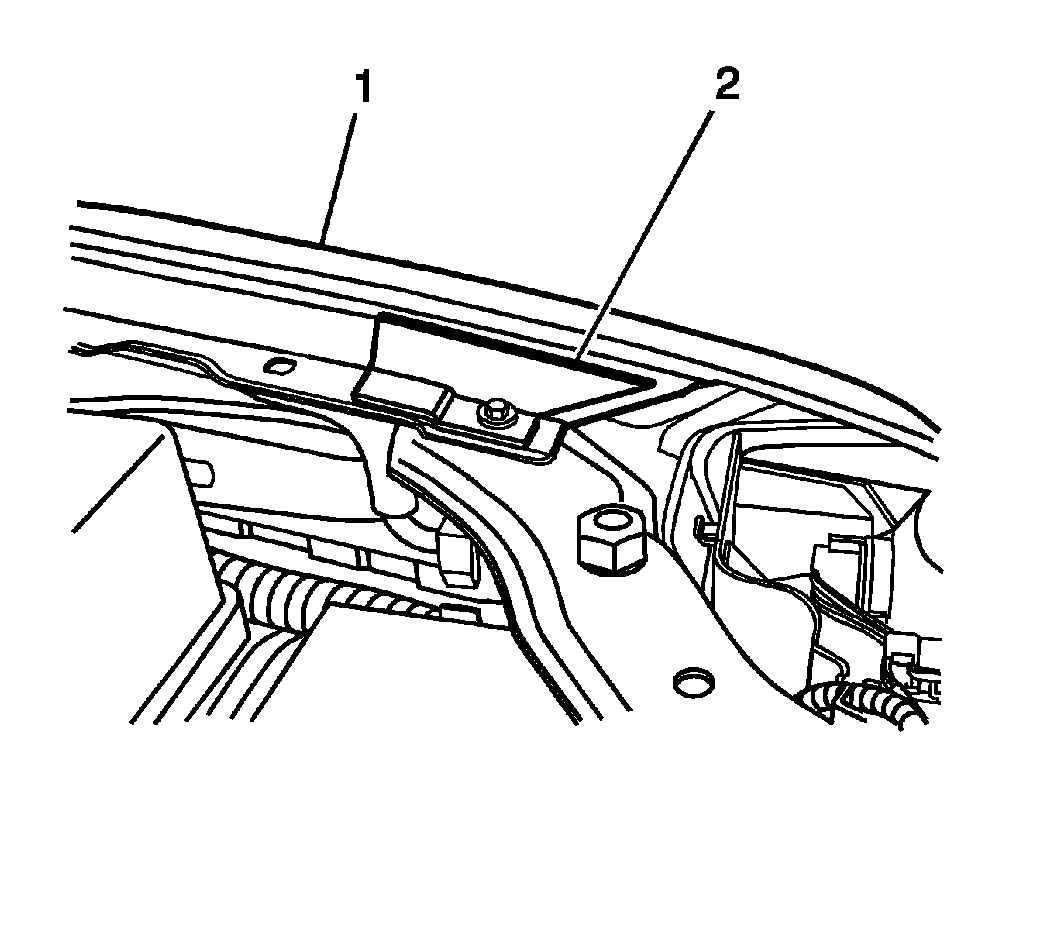

Fig 2: View Of Fender & Fender Reinforcement

Courtesy of GENERAL MOTORS CORP.

Install the fender reinforcement (2) to the fender (1).

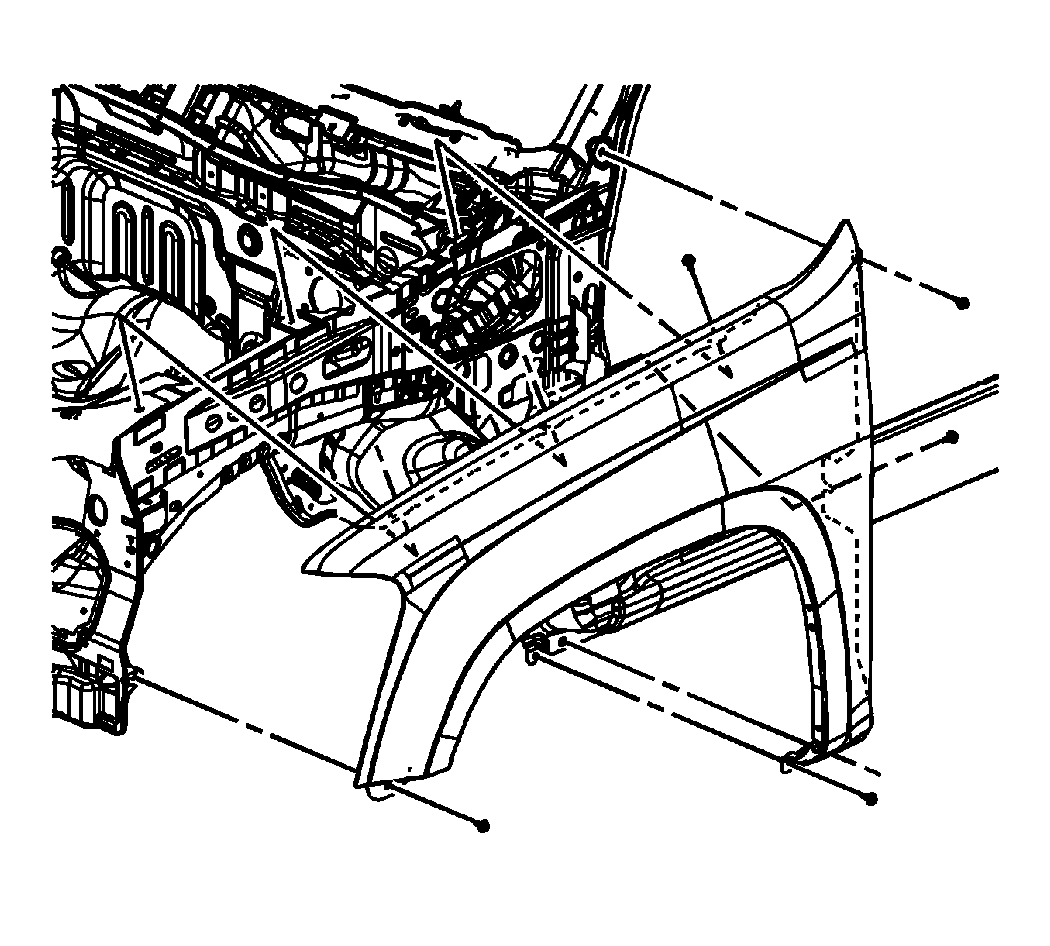

Fig 3: View Of Front Fender

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolts that retain the fender to the vehicle.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

Fig 4: View Of Side Hood Bumper

Courtesy of GENERAL MOTORS CORP.

Install the hood bumper to the vehicle.
Install the wheelhouse panel. Refer to Wheelhouse Liner Replacement - Front .
Remove the protective tape.
