Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

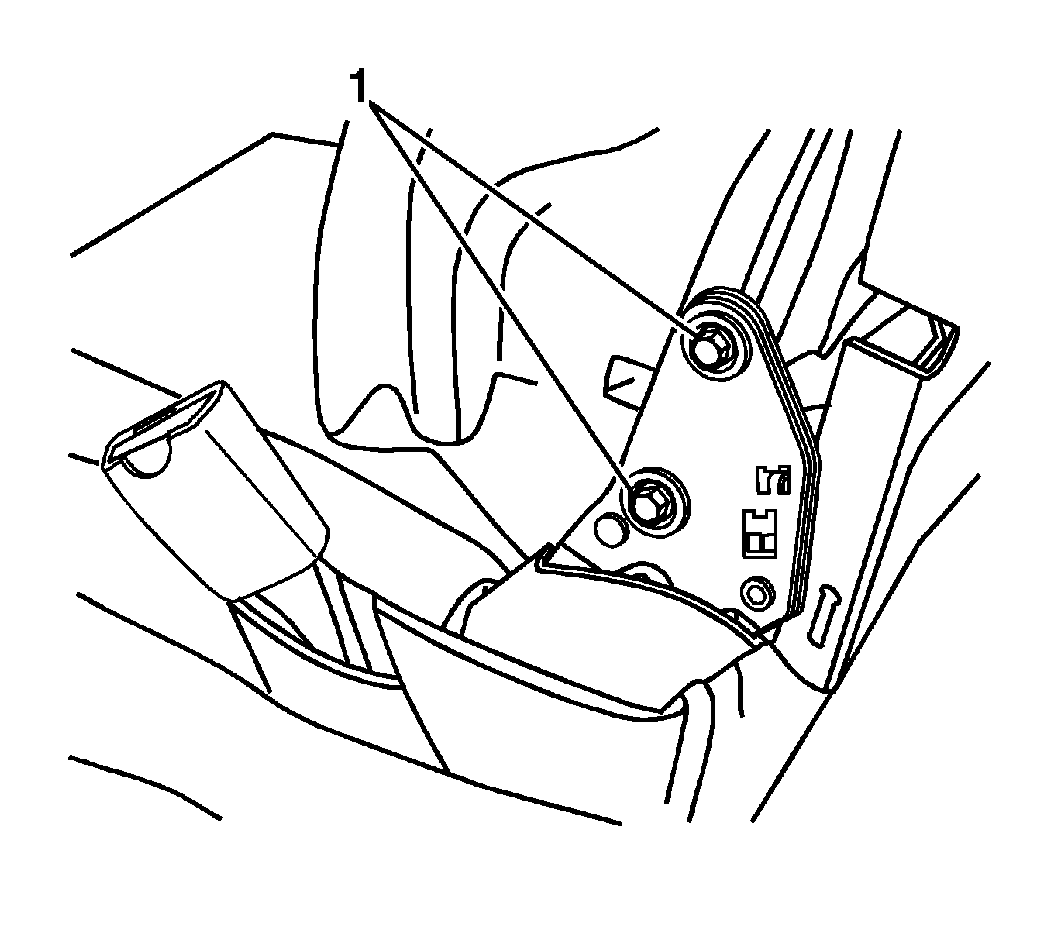

    Fig 1: View Of Seat Recliner Mounting Bolts
    GM1333670Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the seat back frame to the seat back recliner mechanism with 4 bolts (1).

    Tighten:  Tighten the front seat recliner bolts to 24 N.m (18 lb ft).

  2. Install the lumbar assembly. Refer to Lumbar Replacement - Front Seat .
  3. Install the seat back pad and cover. Refer to Seat Back Cover and Pad Replacement - Front .
  4. Install the seat in the vehicle. Refer to Seat Replacement - Split Bench  or Seat Replacement - Front Bucket .
