Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

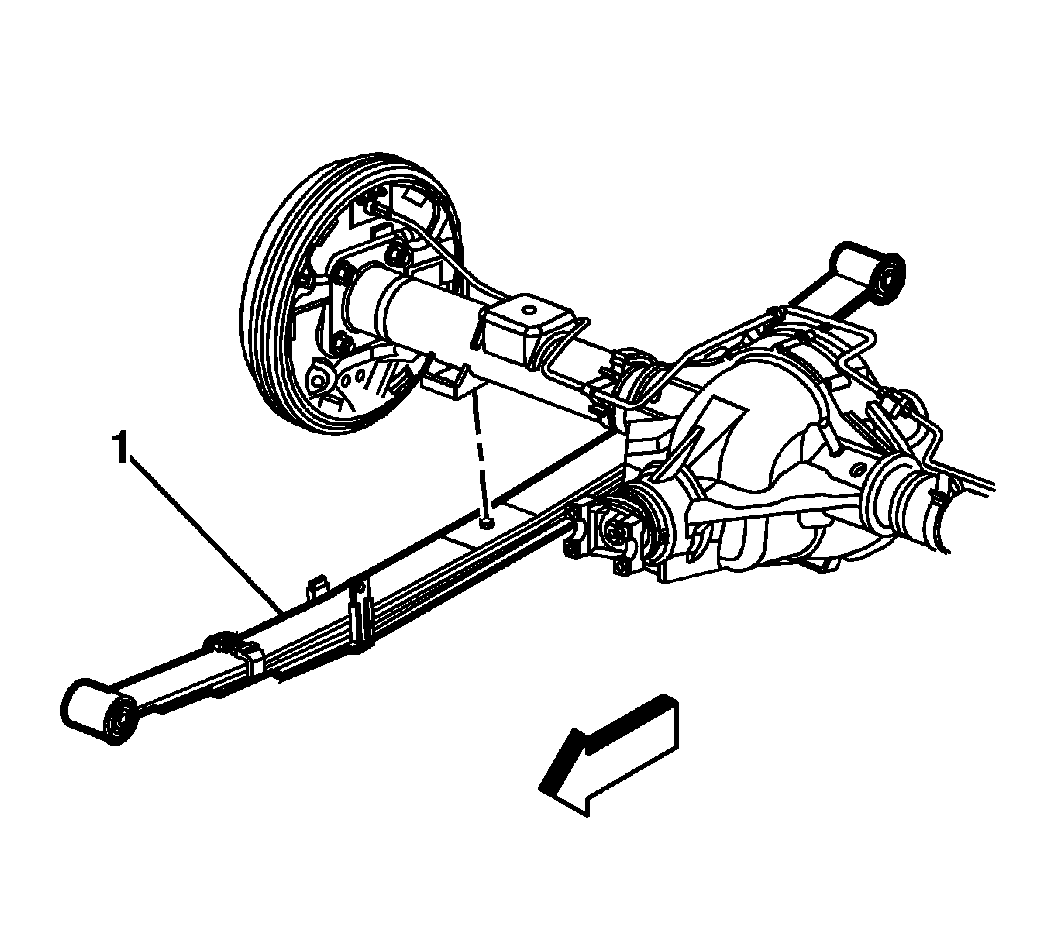

Fig 1: View Of Leaf Spring Assembly

Courtesy of GENERAL MOTORS CORP.

Install the leaf spring assembly to the vehicle.

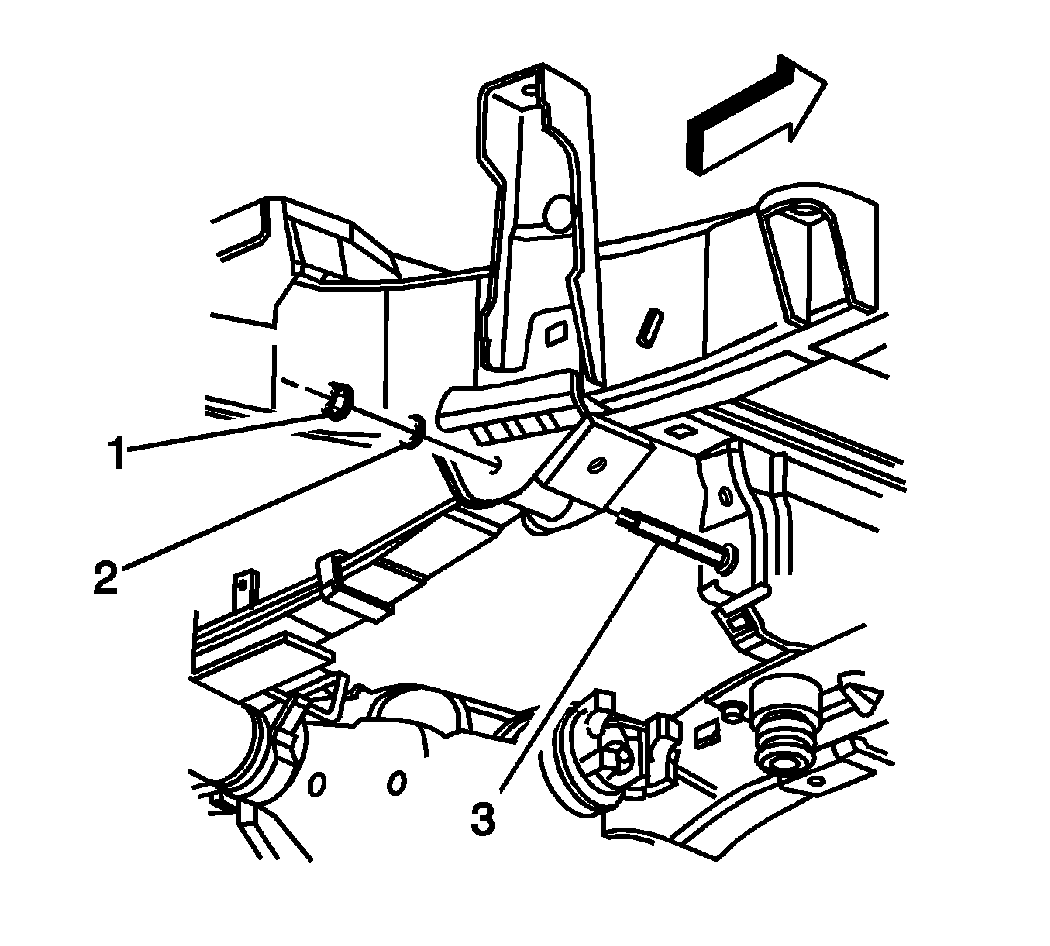

Fig 2: View Of Front Spring Bracket Bolt

Courtesy of GENERAL MOTORS CORP.

Install the front spring hanger bracket bolt.
Install the front spring hanger bracket nut.

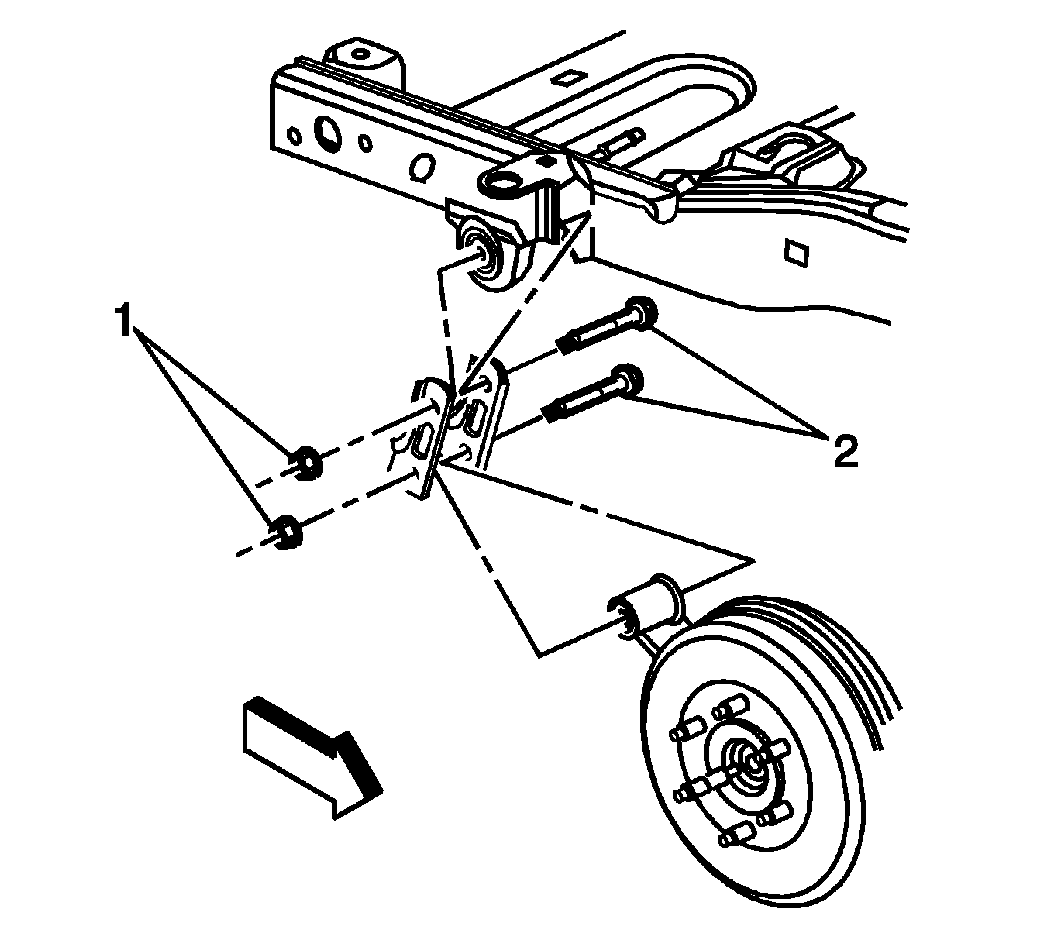

Fig 3: View Of Rear Spring Hanger Bracket Bolts & Nuts

Courtesy of GENERAL MOTORS CORP.

Install the rear spring hanger bracket bolt.
Install the rear spring hanger bracket nut.

IMPORTANT: Do not reuse the U-bolts.

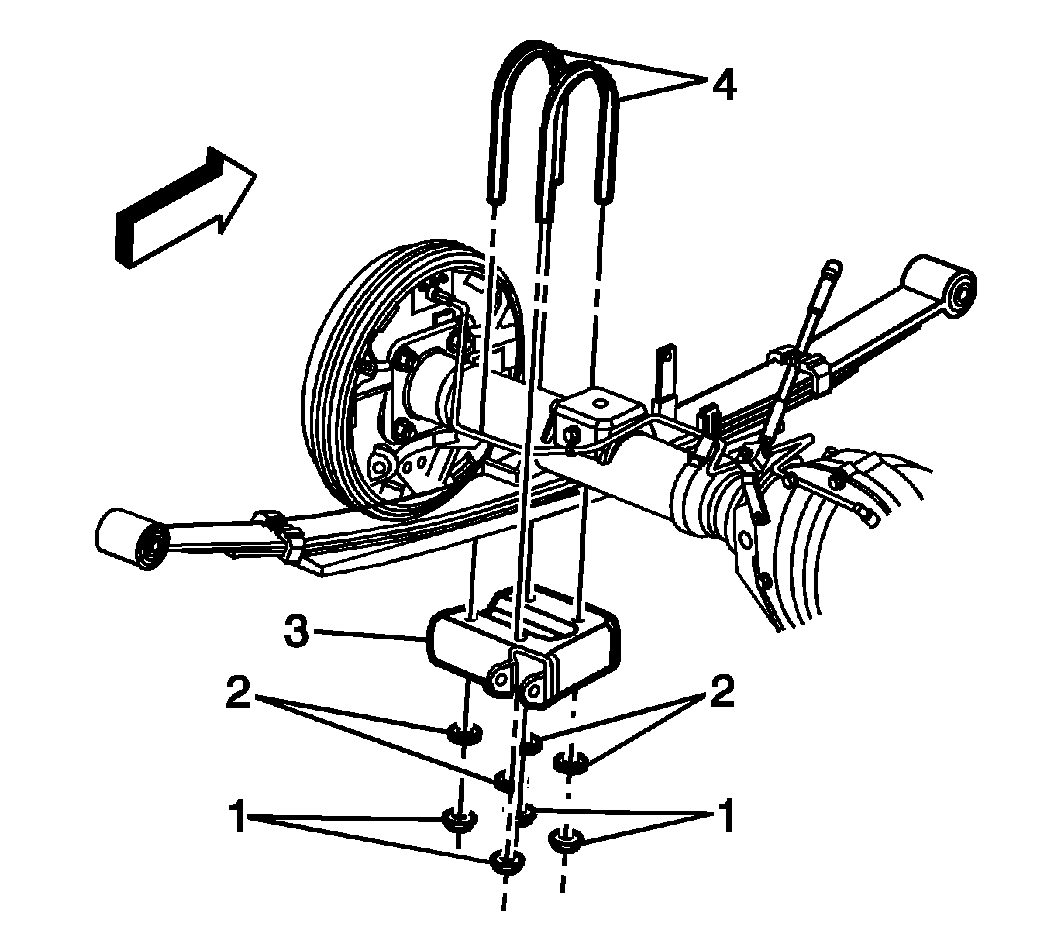

Fig 4: View Of U-Bolts, Anchor Plate & Nuts

Courtesy of GENERAL MOTORS CORP.

Install the new U-bolts.
Install the anchor plate.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the U-bolt nuts.
Tighten:
- Tighten the U-bolt nuts to 76 N.m (56 lb ft).
- Tighten the front hanger bracket nut on the first pass to 80 N.m (59 lb ft).
- Tighten the front hanger bracket nut on the second pass to 80 degrees using J 36660-A
- Tighten the rear shackle nut to 85 N.m (63 lb ft).
Install the absorber lower mounting nut and bolt. Refer to Shock Absorber Replacement .
Install the trailer hitch, if equipped. Refer to Trailer Hitch Replacement in Frame and Underbody.
Connect the rear park brake cable. Refer to Park Brake Cable Replacement - Left Rear or to Park Brake Cable Replacement - Right Rear in Park Brake.
Remove the rear axle support.
Lower the vehicle.
