Installation Procedure

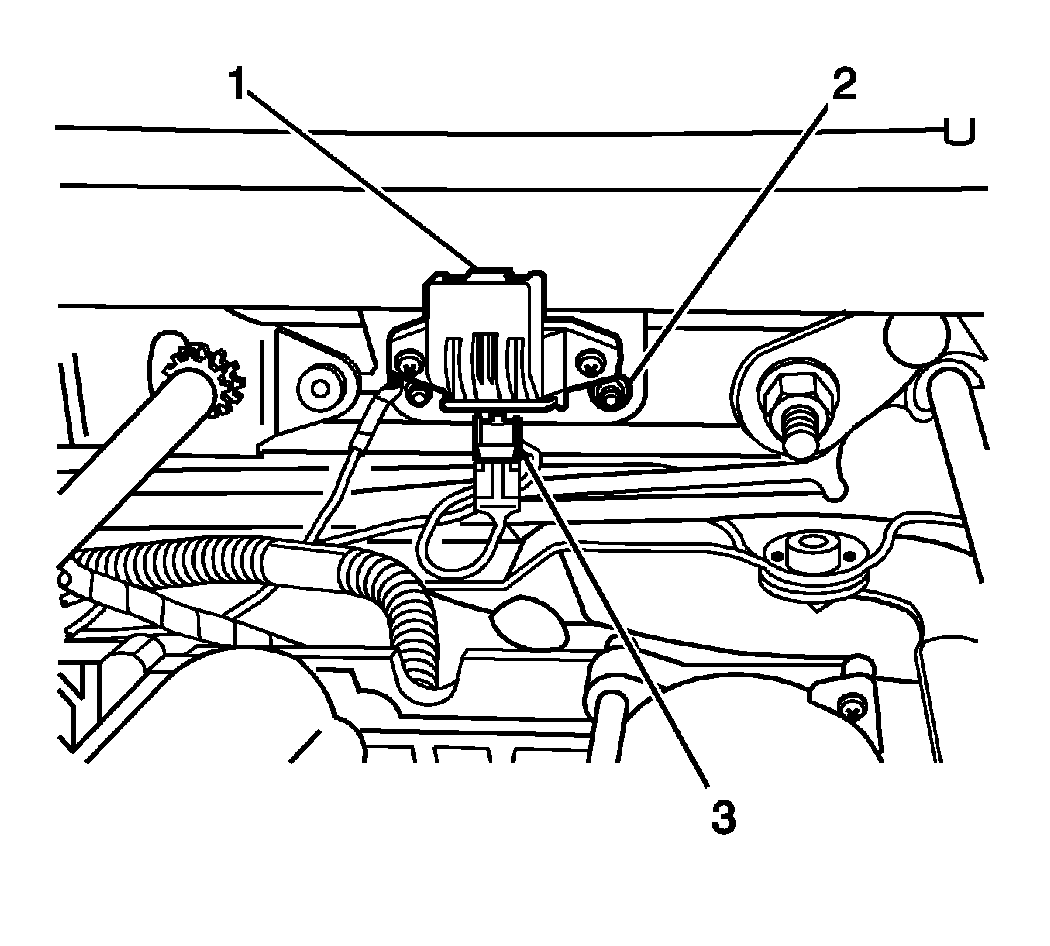

    Fig 1: View Of Seat Position Switch
    GM1334868Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the seat position sensor (1) to the seat rail with 2 screws.

    Tighten:  Tighten the seat position sensor screws to 9 N.m (79 lb in).

  2. Connect the electrical connector (3) to the seat position sensor (1).
  3. Install the seat in the vehicle. Refer to Seat Replacement - Front Bucket .
