Sunroof Component Views

Fig 1: Overhead Console

GM1480568

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Left Front
2	Sunroof Switch (CF5)
3	Courtesy/Reading Lamp - Right Front
4	Garage Door Opener (UG1)

Fig 2: Sunroof Module Component Views

GM829306

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Module
2	Headliner Harness

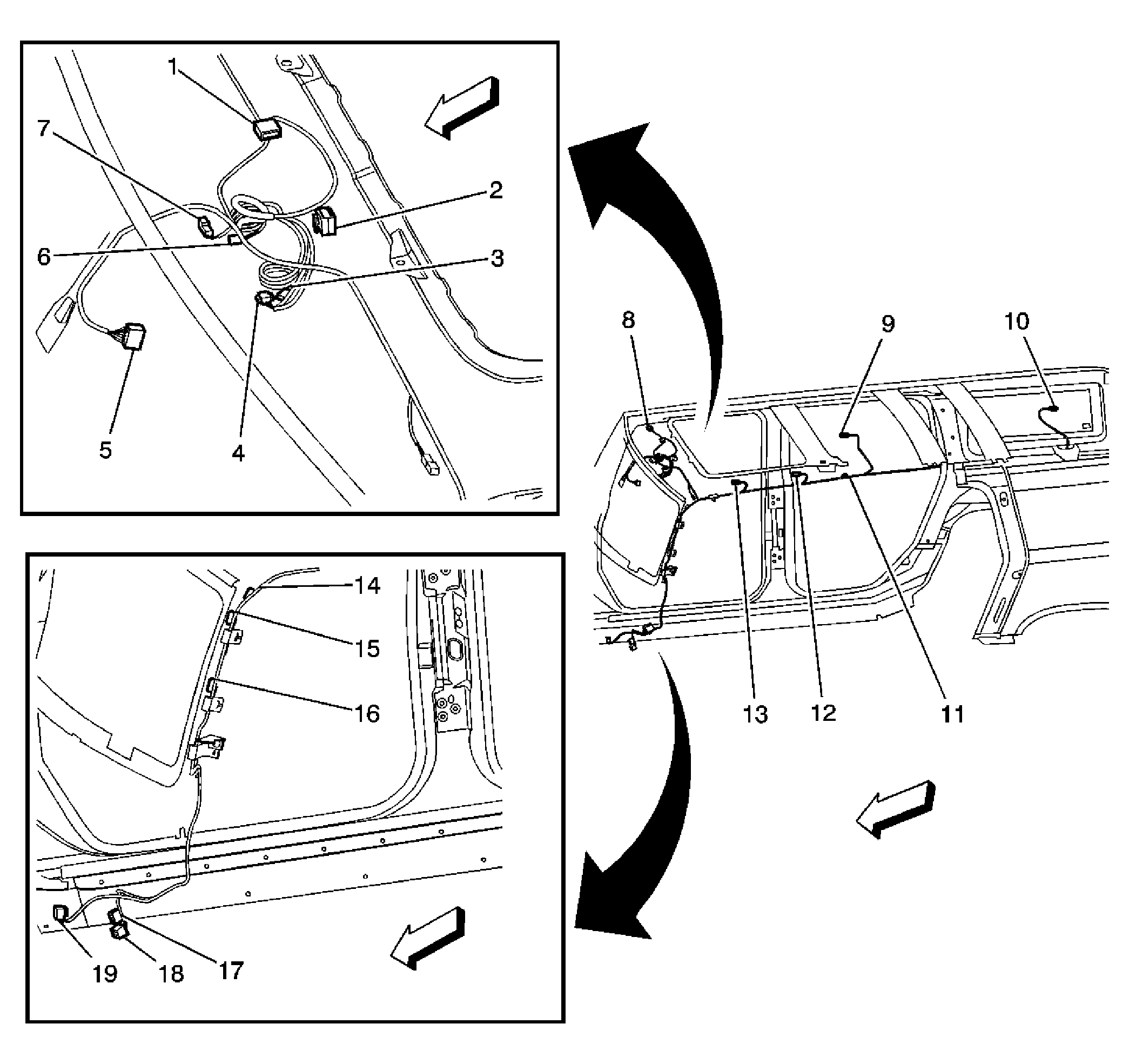

Fig 3: Headliner Harness Routing

GM1829335

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Module Connector
2	Sunroof Switch Connector
3	Courtesy/Reading Lamp-Left Front Connector
4	Garage Door Opener Connector
5	Inside Rearview Mirror Connector
6	Courtesy/Reading Lamp-Right Front Connector
7	Noise Cancellation Microphone Connector
8	Vanity Mirror-Right Connector
9	Courtesy Reading Lamp-Center
10	Courtesy Reading Lamp-Rear
11	S300
12	Ambient Air Temperature Sensor Connector
13	Cellular Telephone Microphone Connector
14	S305
15	S301
16	S302 (CF5)
17	Relay Block-I/P C4
18	Relay Block-I/P C3
19	C210
