Antilock Brake System Schematics

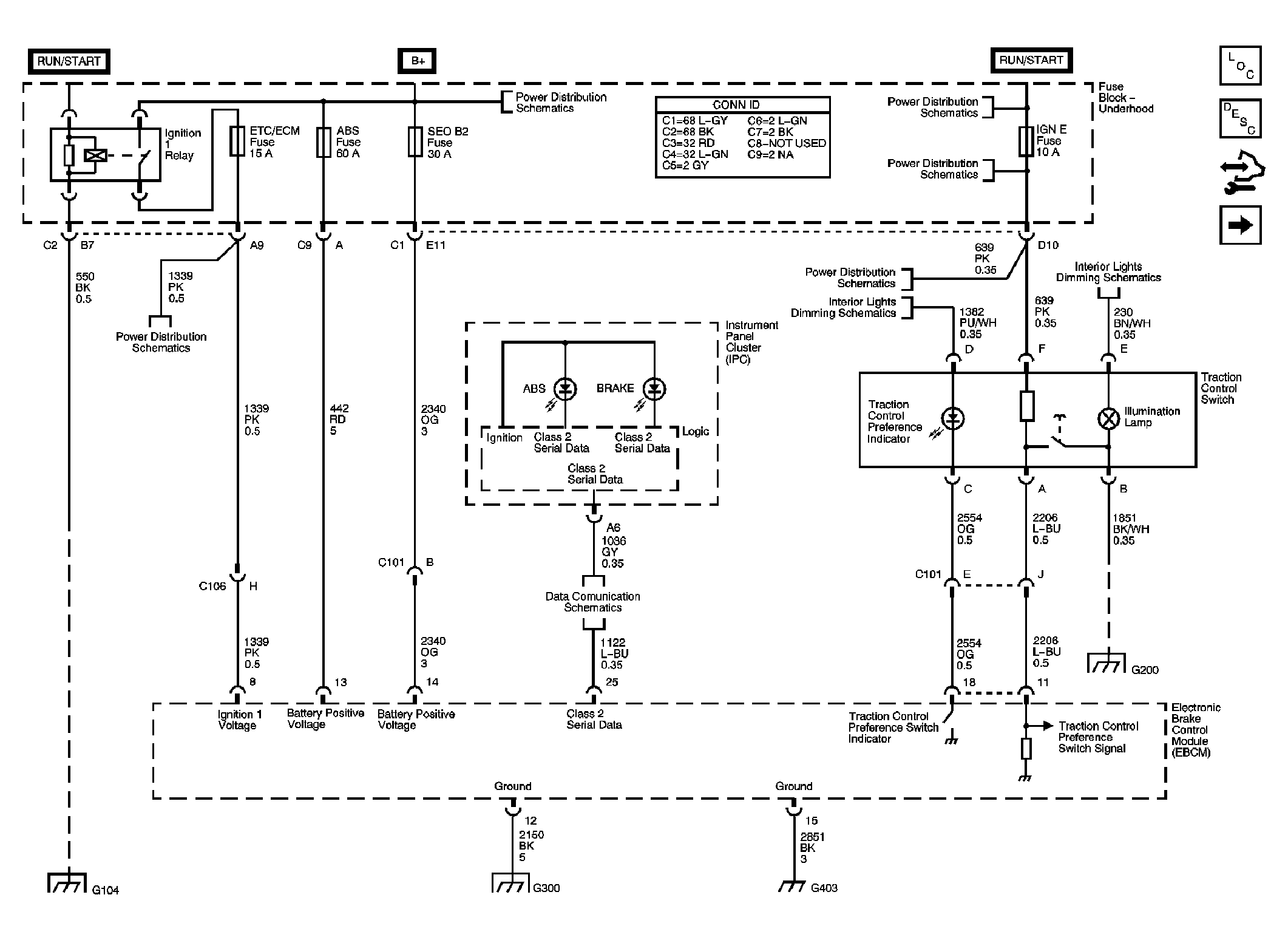

Fig 1: Power, Ground, Serial Data, Indicator, and Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.

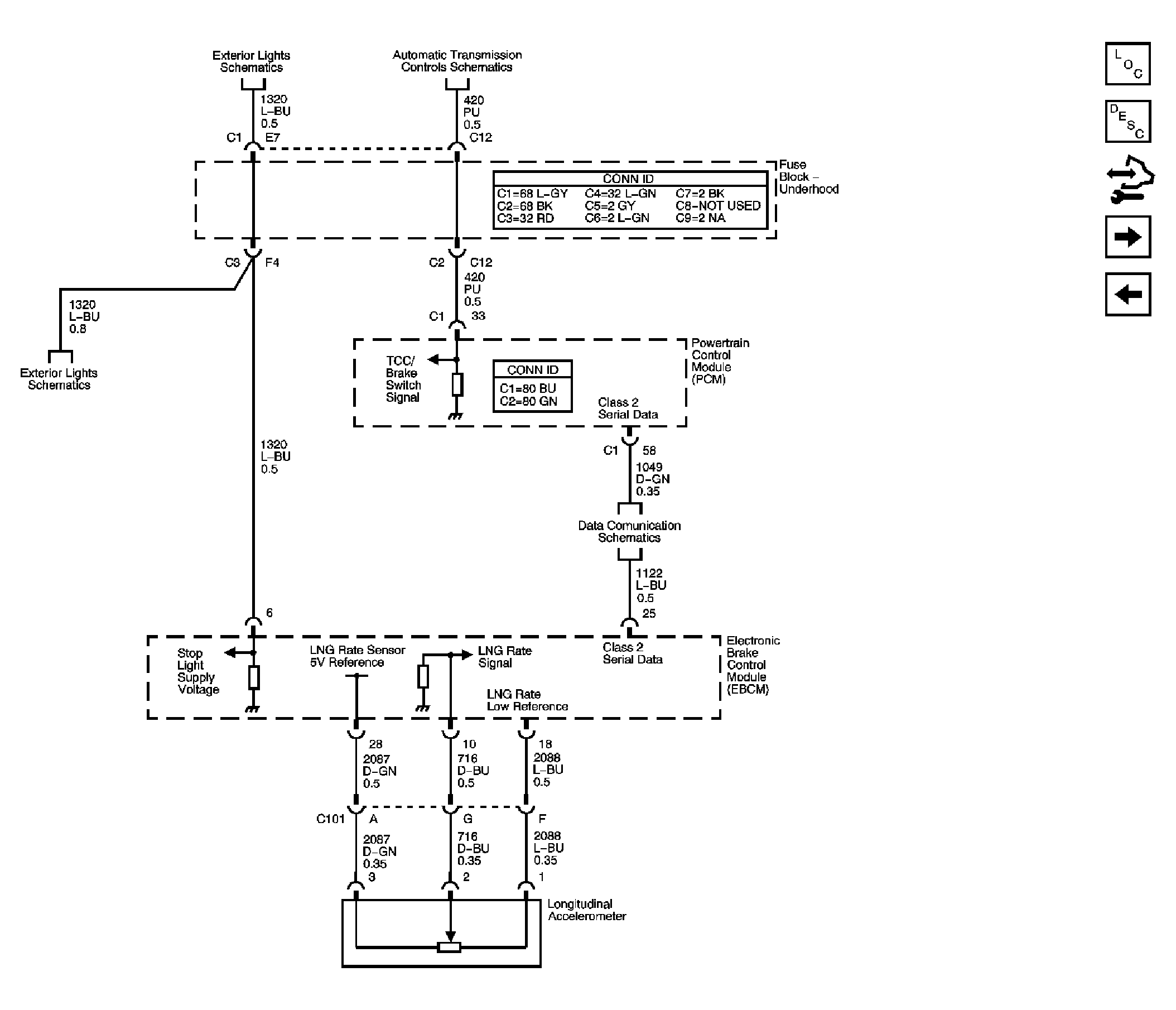

Fig 2: Stop Lamp Switch and Longitudinal Accelerometer Signals Schematic

Courtesy of GENERAL MOTORS CORP.

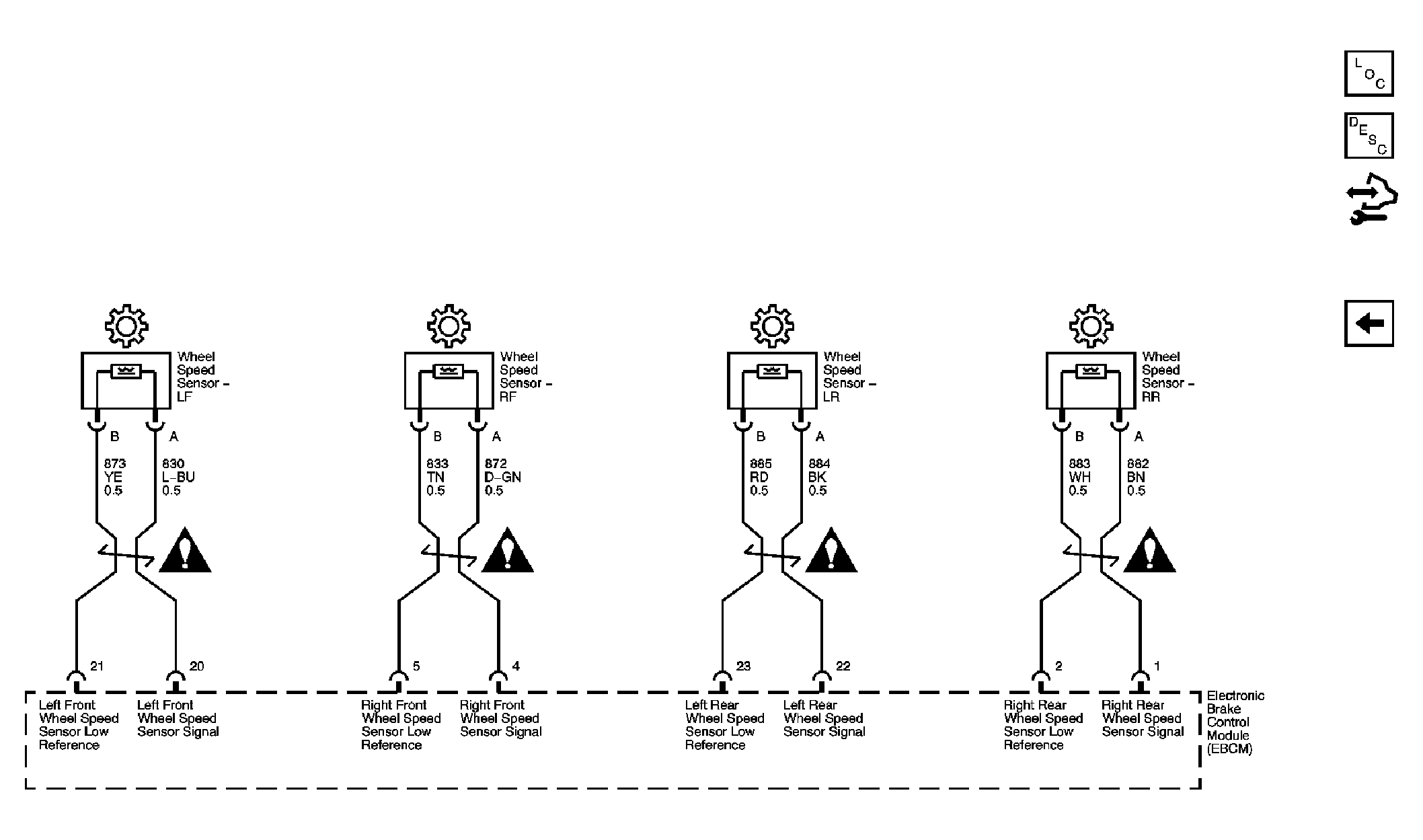

Fig 3: Wheel Speed Sensor Signal Schematic

Courtesy of GENERAL MOTORS CORP.
