Power and Grounding Component Views

Fig 1: Fuse Block Underhood, C102, C107, and C108
GM1764700Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fusable Link (WS2)
2 Mega Fuse (WS2)
3 Stud 1
4 Stud 2 - Trailer Connector Power Feed
5 C107 (UVC)
6 C108 (WS2)
7 I/P Harness
8 C102
9 Underhood Fuse Block
Fig 2: Fuse Block - I/P Component Views
GM827523Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - I/P
2 Driver Door Harness
3 Fuse Block - I/P - C3 (BLK)
Fig 3: Relay Block - I/P Component Views
GM825740Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Relay Block - I/P
2 Body Harness
3 Relay Block - I/P - C10 (NAT)
Fig 4: Junction Block - I/P Component Views
GM820125Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Junction Block-I/P
2 I/P Harness
3 Footwell Courtesy Lamp Socket-Right
4 Footwell Courtesy Lamp Bulb-Right
Fig 5: S304 Component Views
GM828177Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S304
2 G300
3 Chassis Harness
4 Electronically Controlled Air Suspension Relay
Fig 6: Steering Wheel and Column Sub-System Component Views
GM856748Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Control Switch Assembly - Upper Left
2 Passlock Sensor Connector
3 Ignition Key Alarm Switch
4 Ignition Lock Cylinder Control Actuator
5 Ignition Lock Cylinder Control Actuator Connector
6 Ignition Switch
7 Ignition Key Cylinder
8 Steering Wheel Control Switch Assembly - Upper Right
9 Horn Switch
10 Steering Wheel Control Switch Assembly - Lower Right
11 C277
12 Steering Wheel Control Switch Assembly - Lower Left
13 Turn Signal/Multifunction Switch
Fig 7: Steering Wheel Controls Component Views
GM857908Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 Transfer Case Shift Control Module
3 Splice Pack SP206
4 Steering Wheel Controls Backlight Fuse
Fig 8: G100 Component View
GM825388Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Negative Battery Cable
2 Left Front Frame Rail
3 G100-Negative Battery cable
4 G100-Forward Lamp Harness
5 Forward Lamp Harness
Fig 9: Upper Rear Of Engine Component Views
GM825336Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 G103-Engine Harness Ground
3 G104
4 Camshaft Position (CMP) Sensor Connector
5 Engine Oil Pressure (EOP) Sensor Connector
Fig 10: G102 Component Views
GM825321Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102-Negative Battery Cable
2 G102-Engine Harness Ground
3 Engine Harness
Fig 11: Heated Washer Harness (WS2)
GM1764723Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S107
2 Heated Washer C1
3 Heated Washer C2
4 C108
5 Mega Fuse
6 Fusable Link
7 G105
Fig 12: G106 Component View
GM825386Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G106
2 Dash Panel
3 Engine Ground Strap
Fig 13: G200 Component View
GM820070Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 C202
3 G200
4 I/P Harness
Fig 14: Behind Right Side Kick Panel
GM1775681Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 FM Modulator (UWF/UWG)
2 Controller to FM Modulator Connector (UWF/UWG)
3 Radio Antenna Coax Connector
4 C236
5 C298
6 G203
Fig 15: Left Side of I/P
GM1482831Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM) - C1
2 BCM - C2
3 BCM - C4
4 BCM- C3
5 BCM - C5
6 BCM
7 Data Link Connector (DLC)
8 Fuse Block - I/P - C1
9 Fuse Block - I/P
10 Splice Pack SP205
Fig 16: Splice Pack SP206 Component Views
GM857908Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 Transfer Case Shift Control Module
3 Splice Pack SP206
4 Steering Wheel Controls Backlight Fuse
Fig 17: Splice Pack SP207 Component Views
GM825721Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 Splice Pack SP207
3 C202
4 Left Side Cowl Panel
Fig 18: G300 Component View
GM825346Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G300
3 Left Frame Body Mount
Fig 19: G302 Component Views
GM825282Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B Pillar
2 Body Harness
3 G302
Fig 20: G304 Component View
GM828959Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G304
2 Body Harness
3 Inflatable Restraint and Diagnostic Module (SDM) Connector
Fig 21: G306 Component View
GM825292Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B Pillar
2 Body Harness
3 G306
Fig 22: G308 Component View
GM825382Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G308
2 Body Mount-RH
3 Chassis Harness
Fig 23: G310 Component View
GM825379Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Mount-LH
2 G310
3 Chassis Harness
Fig 24: G401 Component View
GM825380Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G401
2 Body Mount-LH
3 Fuel Tank Filler Ground
4 Chassis Harness

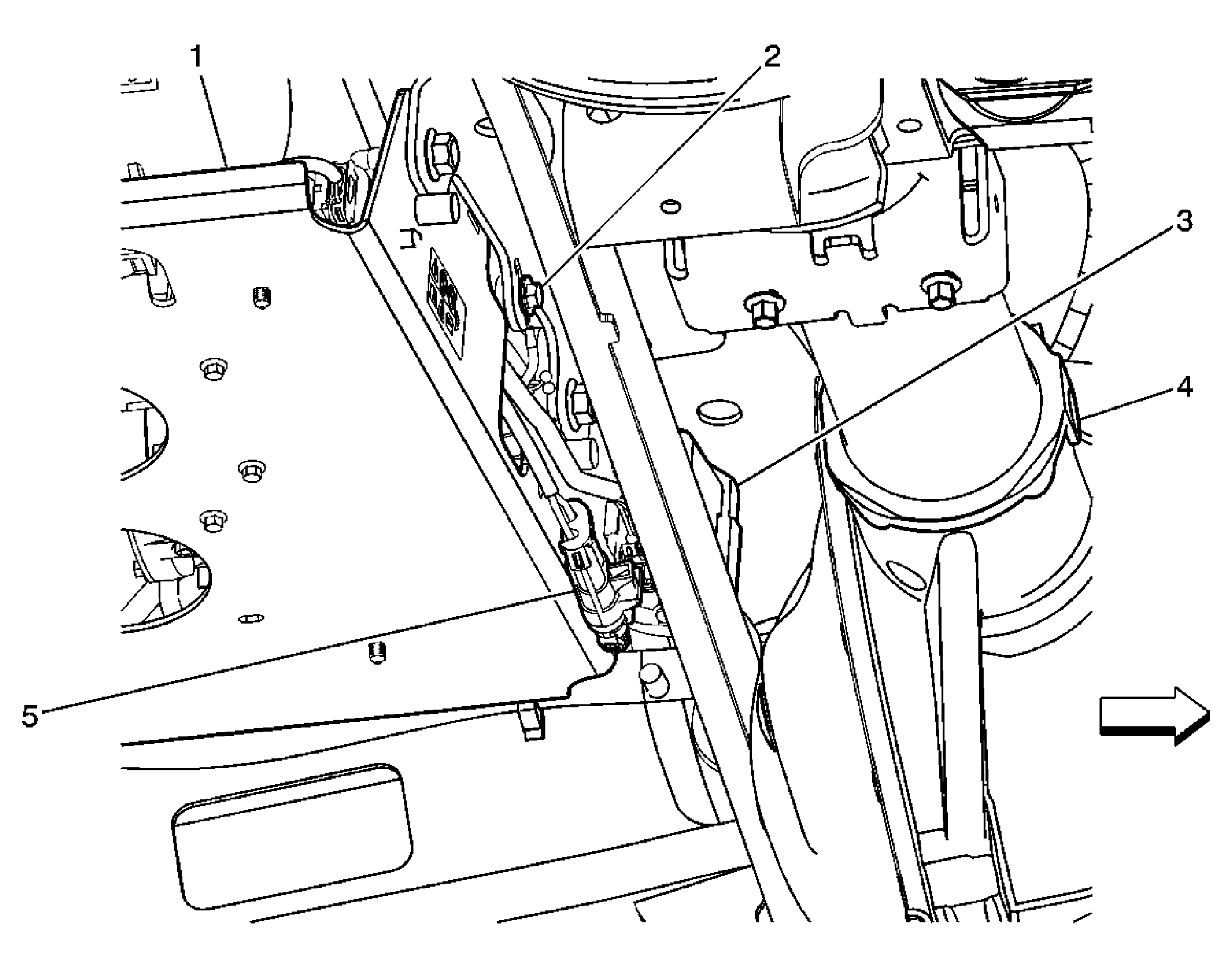

Fig 25: Air Suspension Module Connections
GM1769001Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Suspension Module
2 G402
3 C451
4 Rear Axle
5 C450
Fig 26: G405 Component View
GM825384Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G405
3 Body Mount-RH
4 Air Suspension Inflator Switch Connector
Fig 27: G410 and SP410 Component Views
GM825429Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inner Side Panel - RH
2 G410
3 SP410
