Ground Distribution Schematics

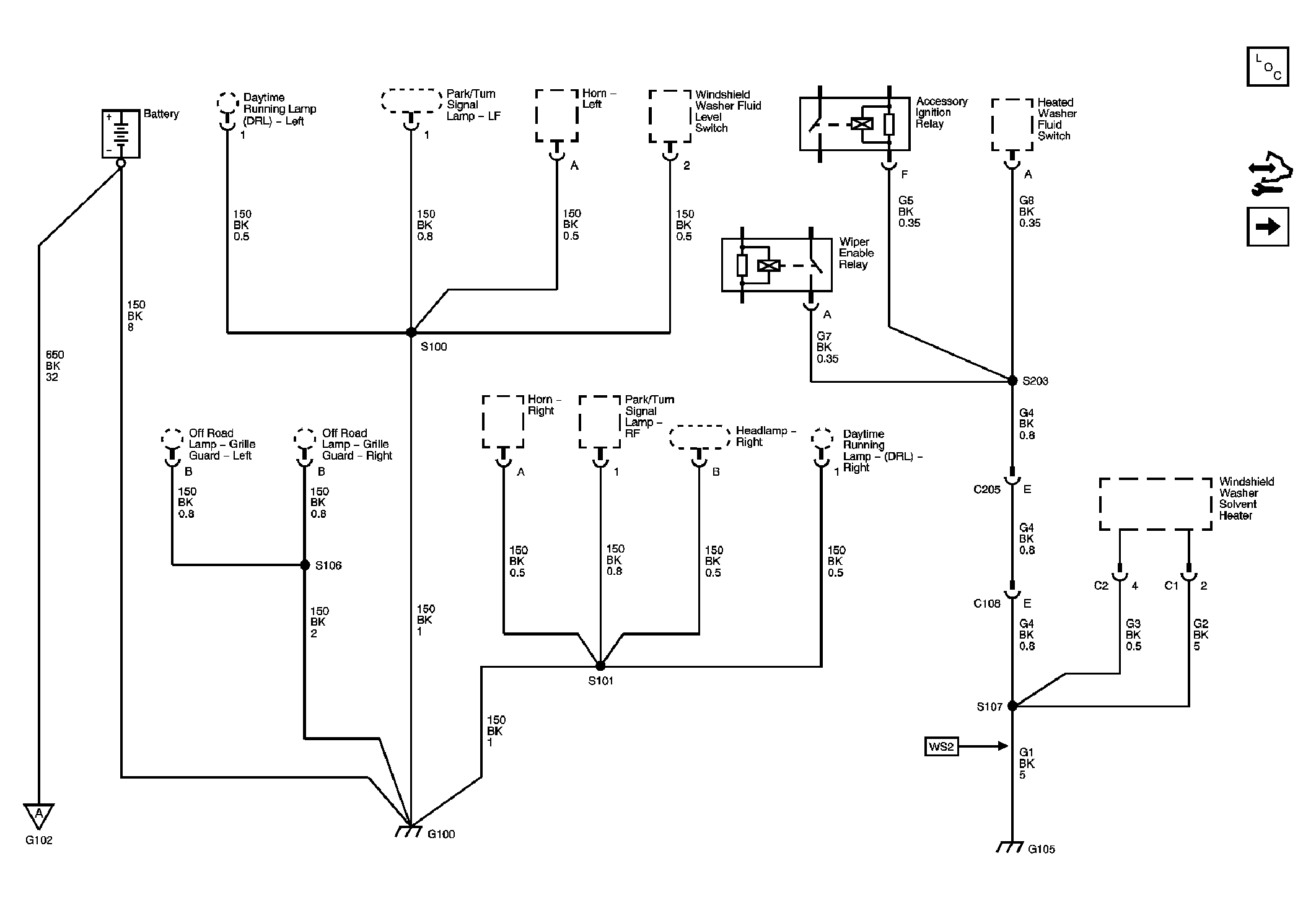

Fig 1: G100 and G105

GM1807666

Courtesy of GENERAL MOTORS CORP.

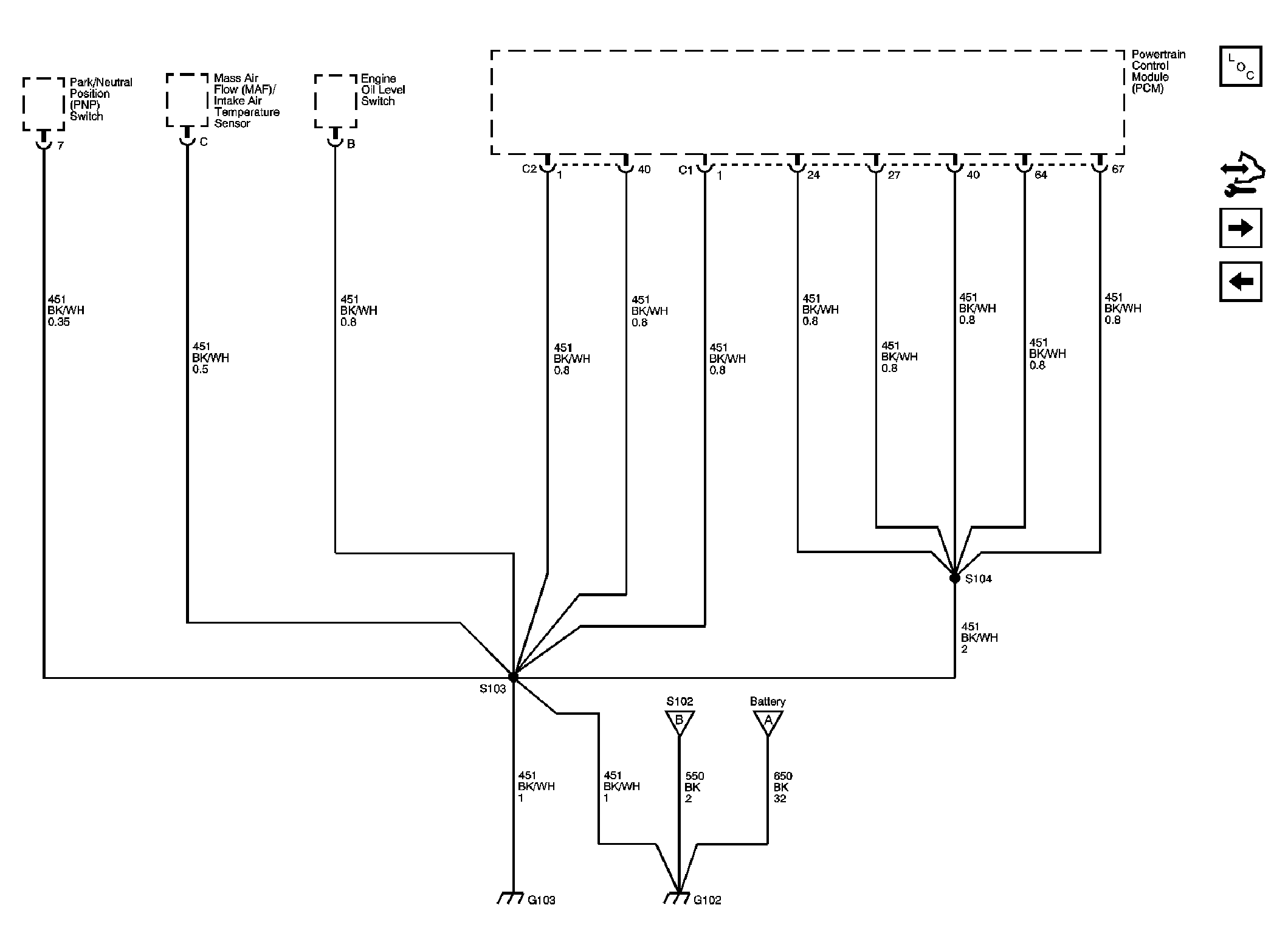

Fig 2: G102 and G103

GM1807672

Courtesy of GENERAL MOTORS CORP.

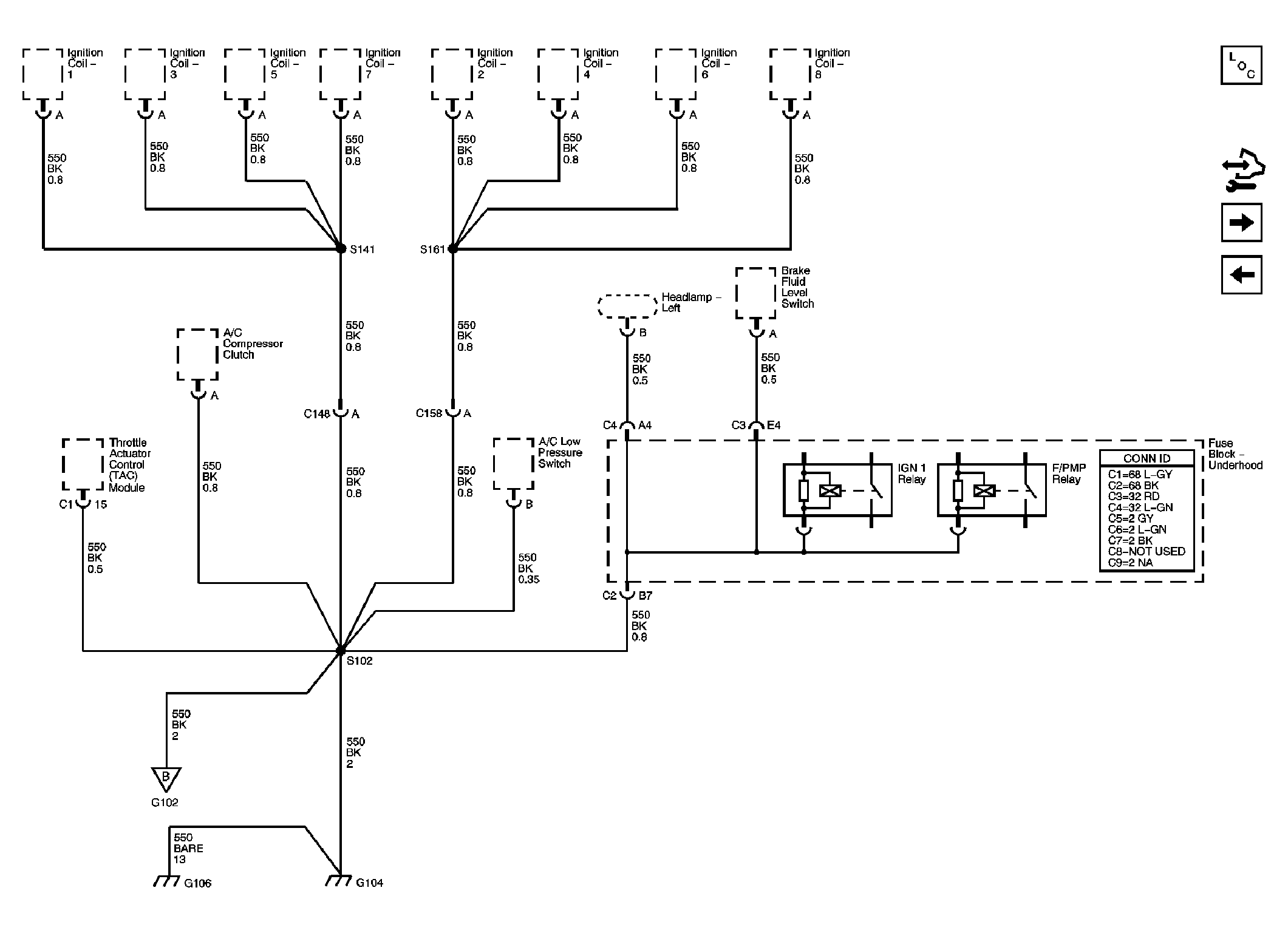

Fig 3: G104 and G106

GM1807682

Courtesy of GENERAL MOTORS CORP.

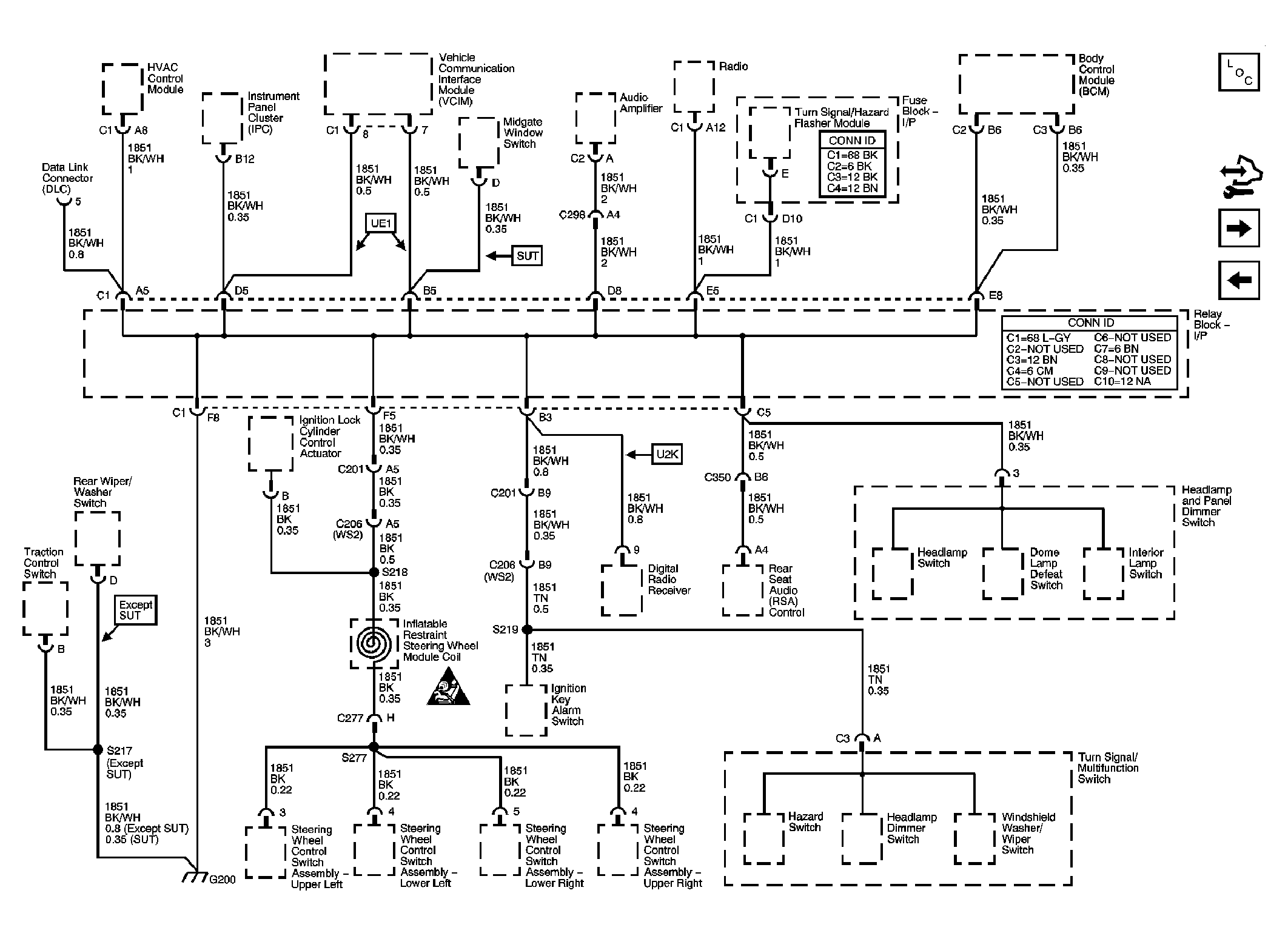

Fig 4: G200

GM1807684

Courtesy of GENERAL MOTORS CORP.

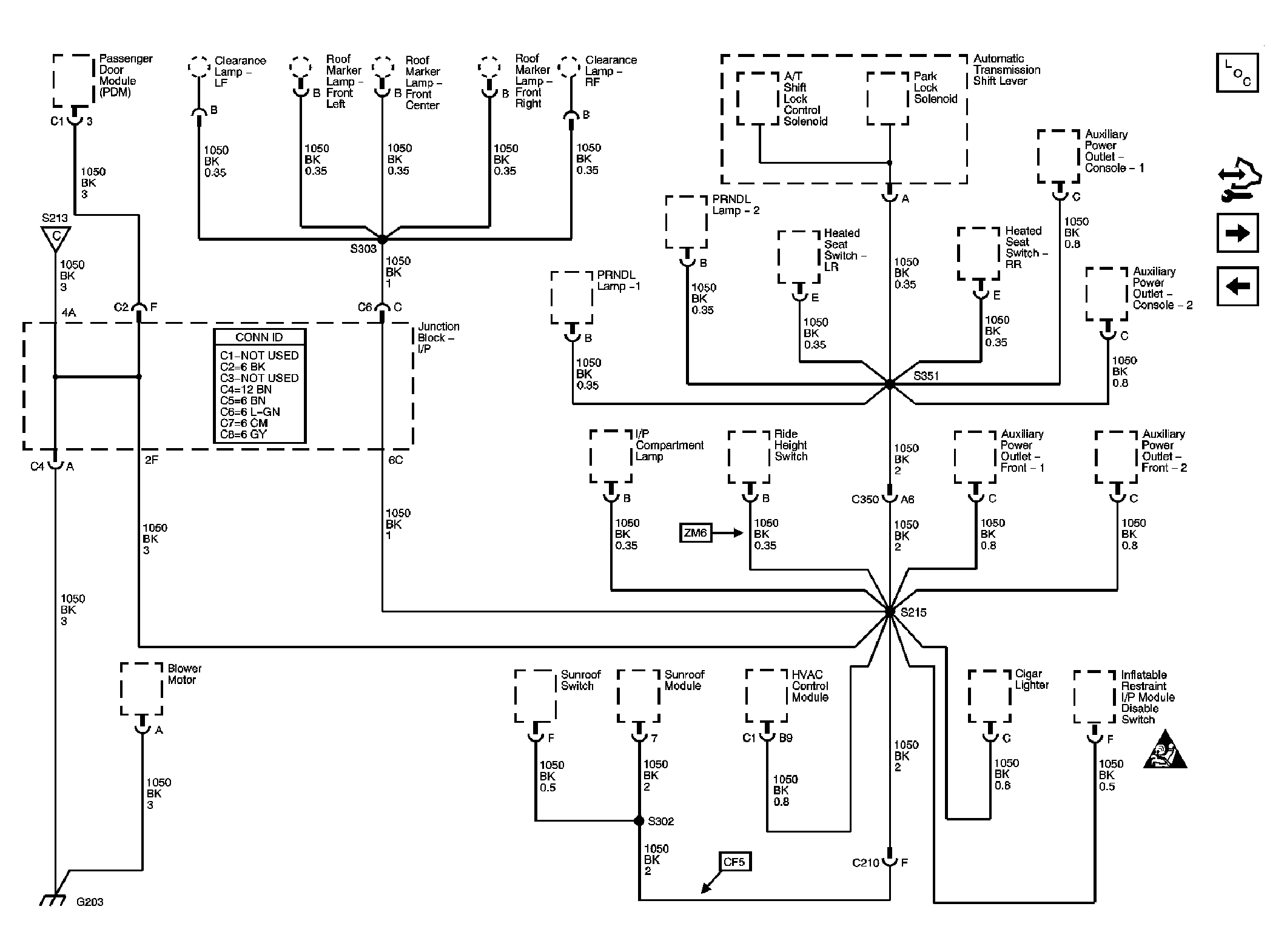

Fig 5: G203 - 1 of 3

GM1807688

Courtesy of GENERAL MOTORS CORP.

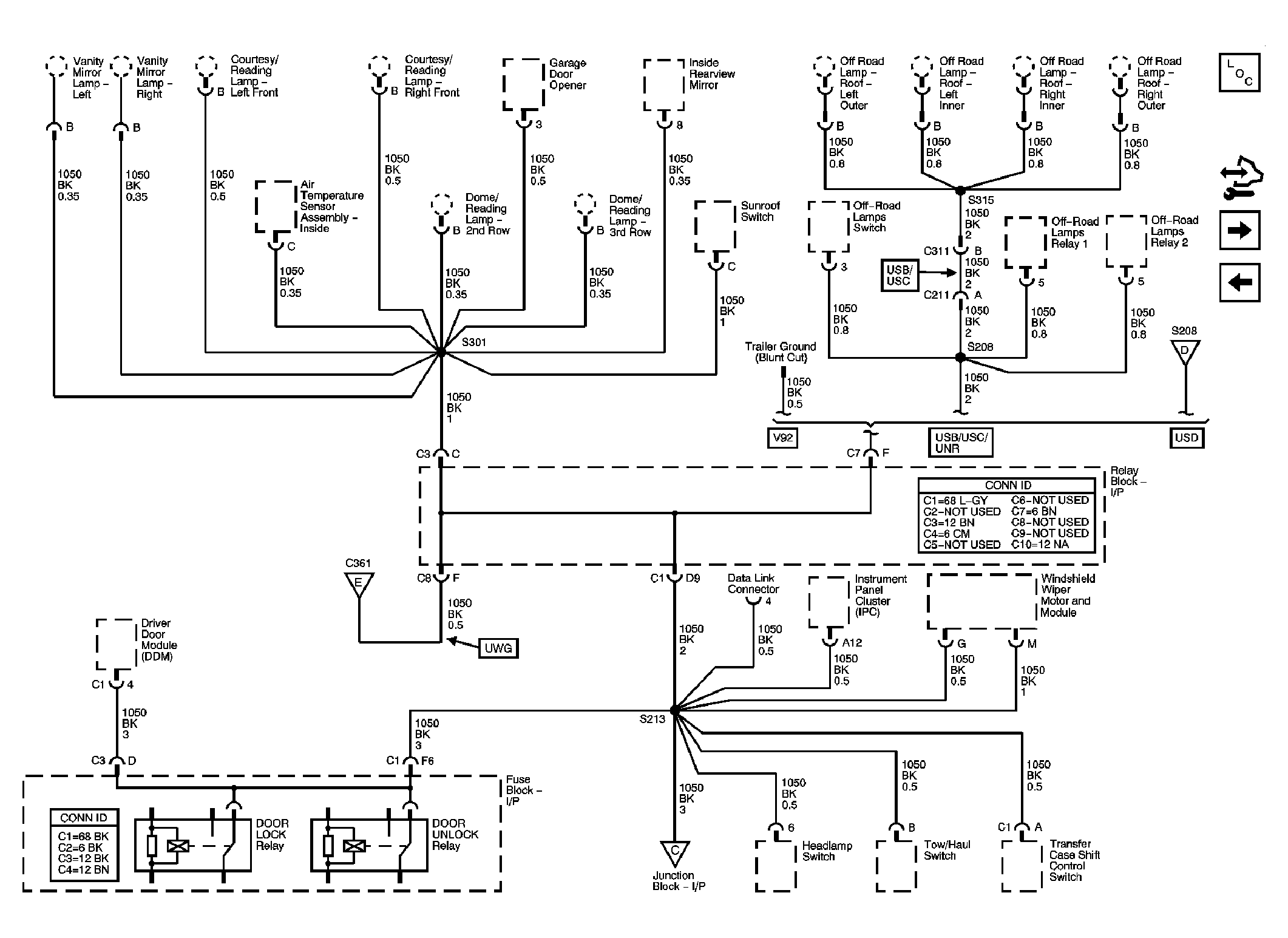

Fig 6: G203 - 2 of 3

GM1807693

Courtesy of GENERAL MOTORS CORP.

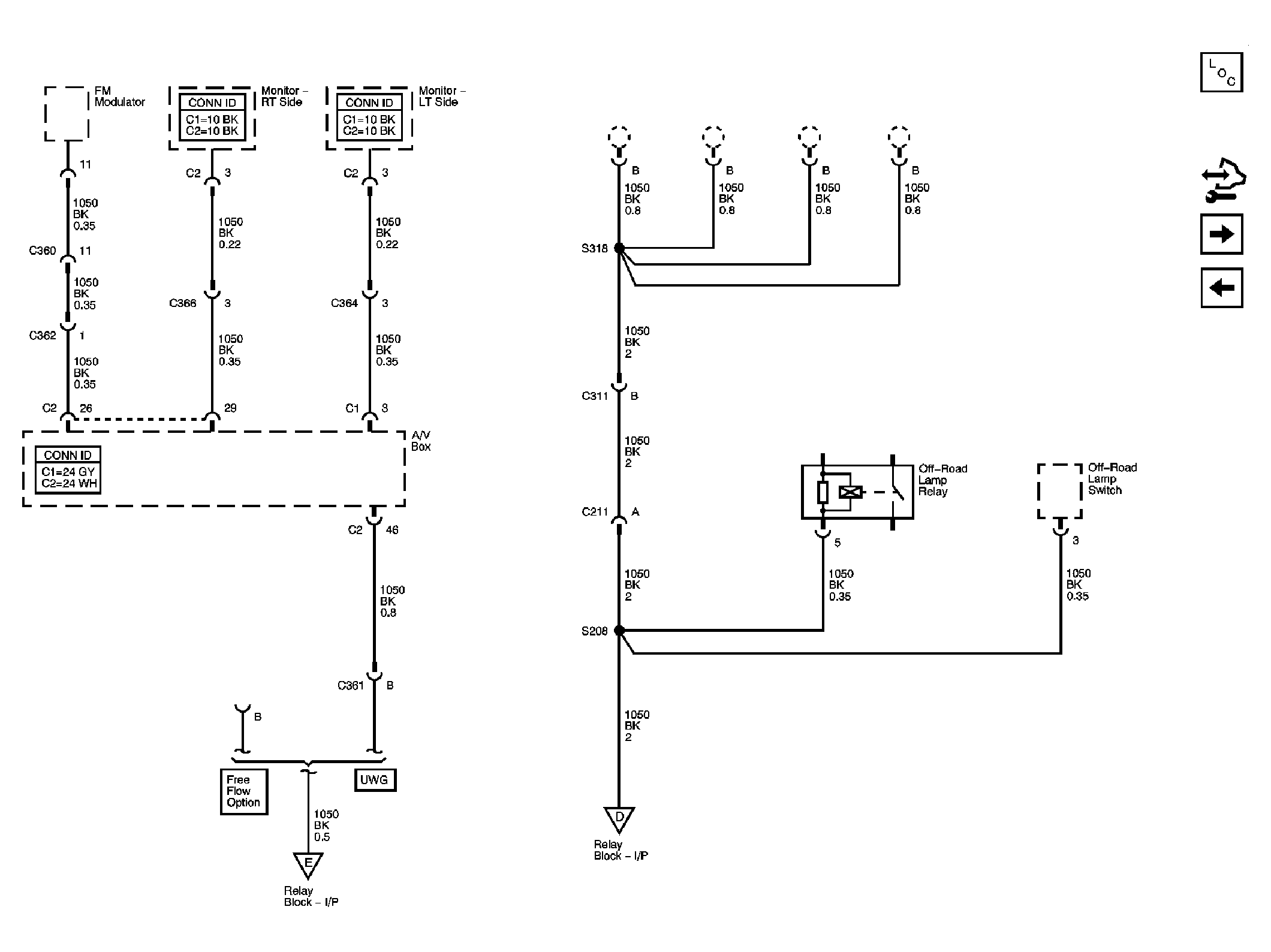

Fig 7: G203 - 3 of 3

GM1807696

Courtesy of GENERAL MOTORS CORP.

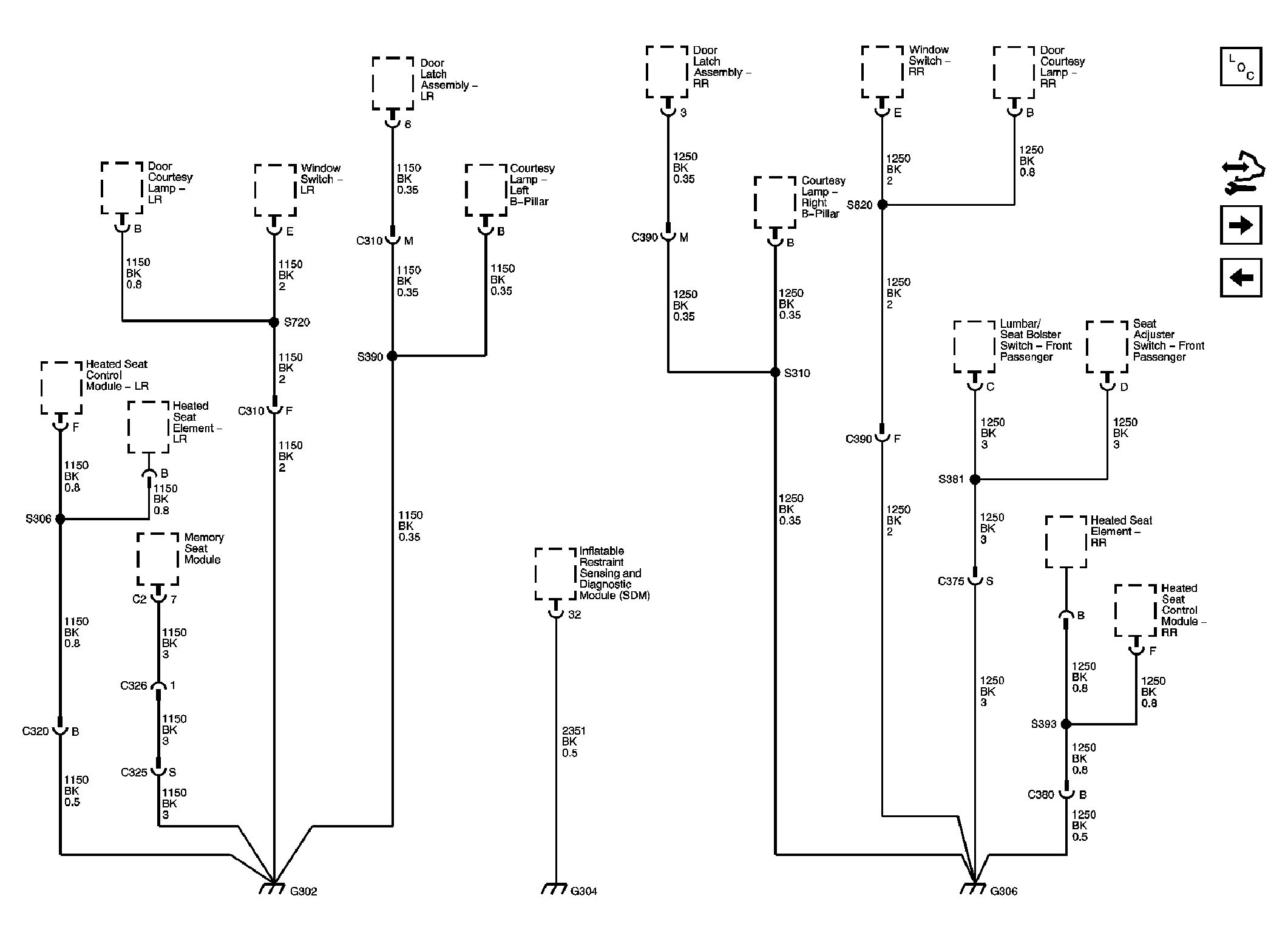

Fig 8: G302, G304, and G306

GM1807699

Courtesy of GENERAL MOTORS CORP.

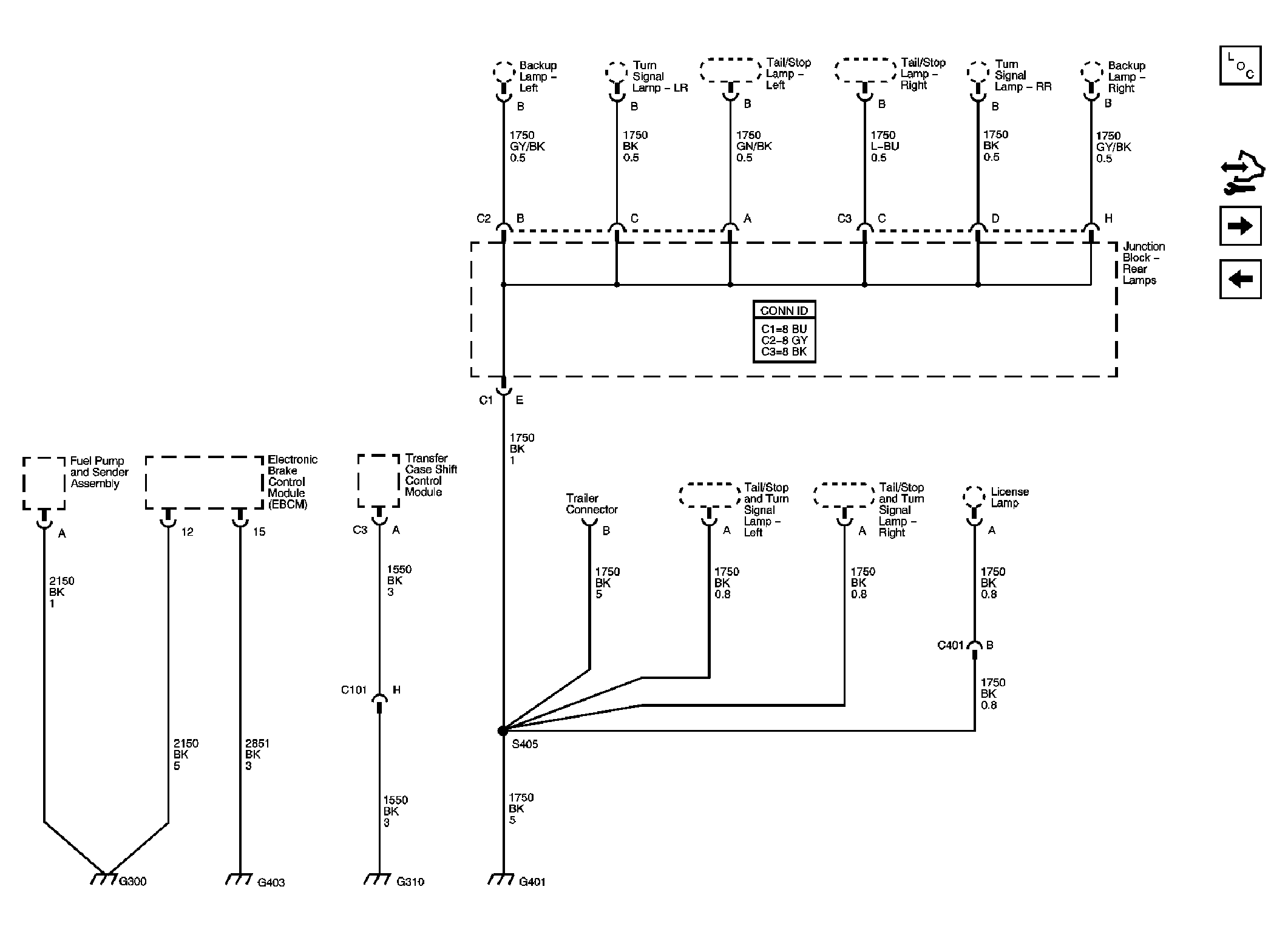

Fig 9: G300, G310, G401, and G403

GM1807703

Courtesy of GENERAL MOTORS CORP.

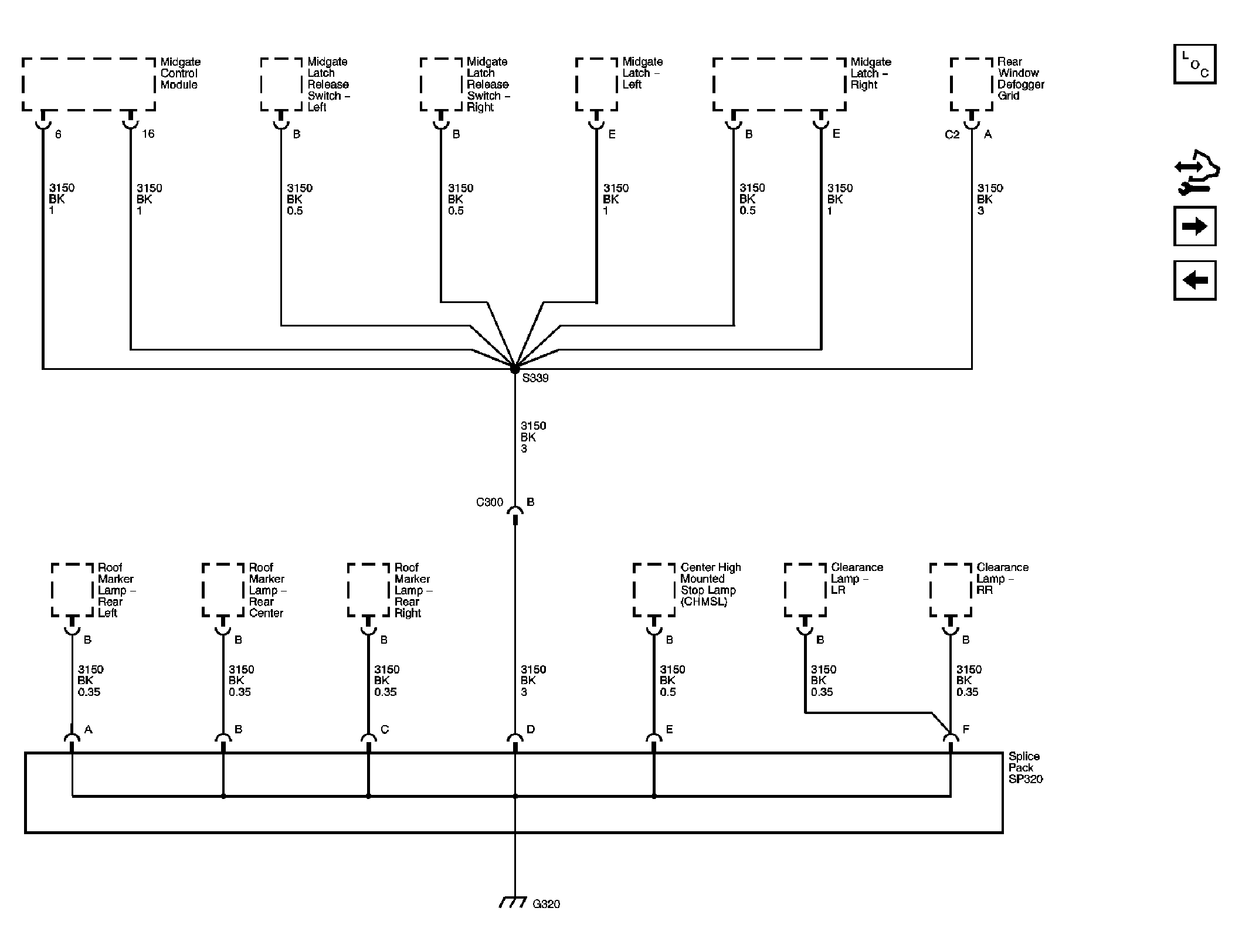

Fig 10: G320 (SUT)

GM1807708

Courtesy of GENERAL MOTORS CORP.

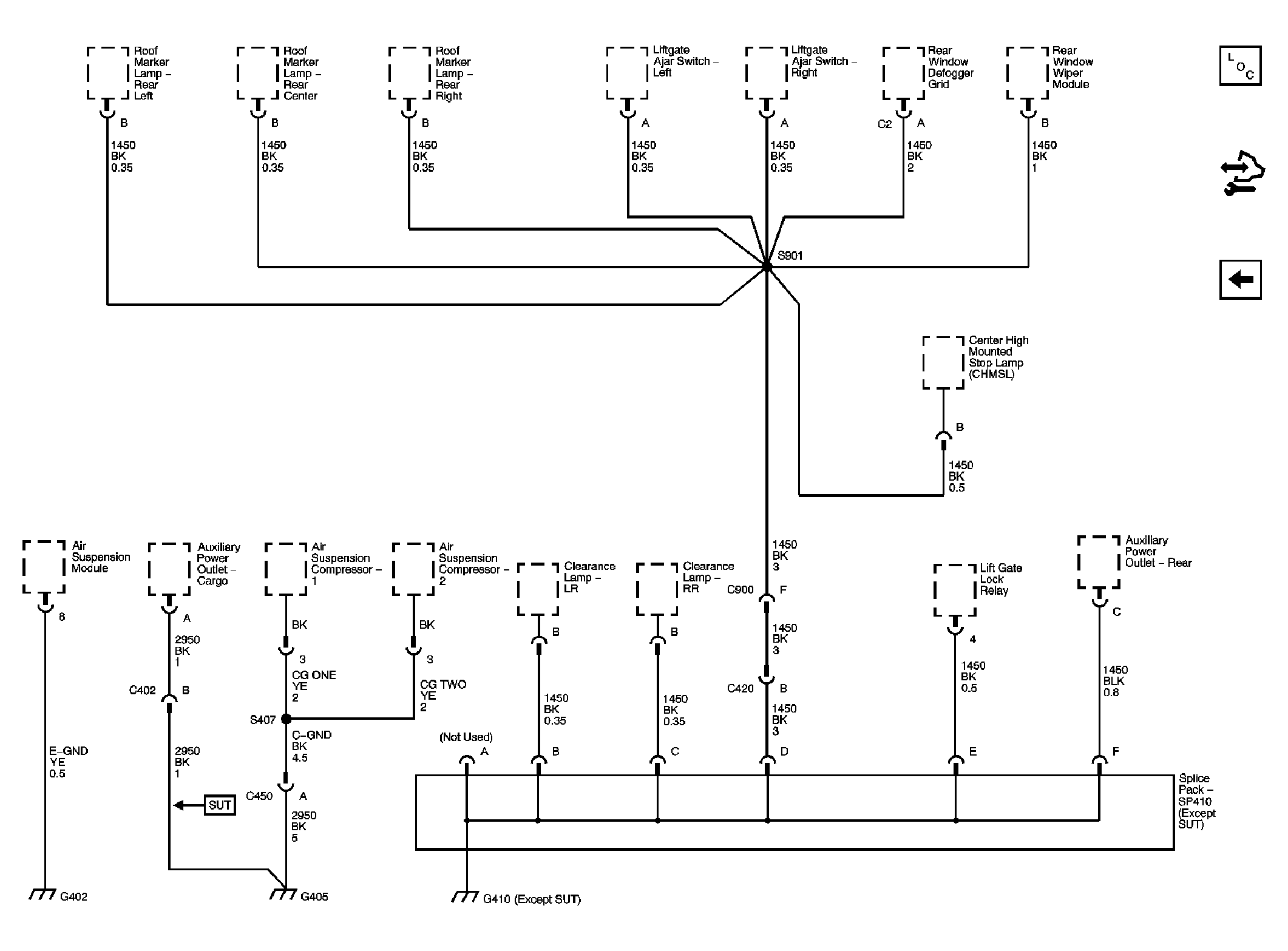

Fig 11: G402, G405, and G410

GM1807714

Courtesy of GENERAL MOTORS CORP.
