Engine Electrical Component Views

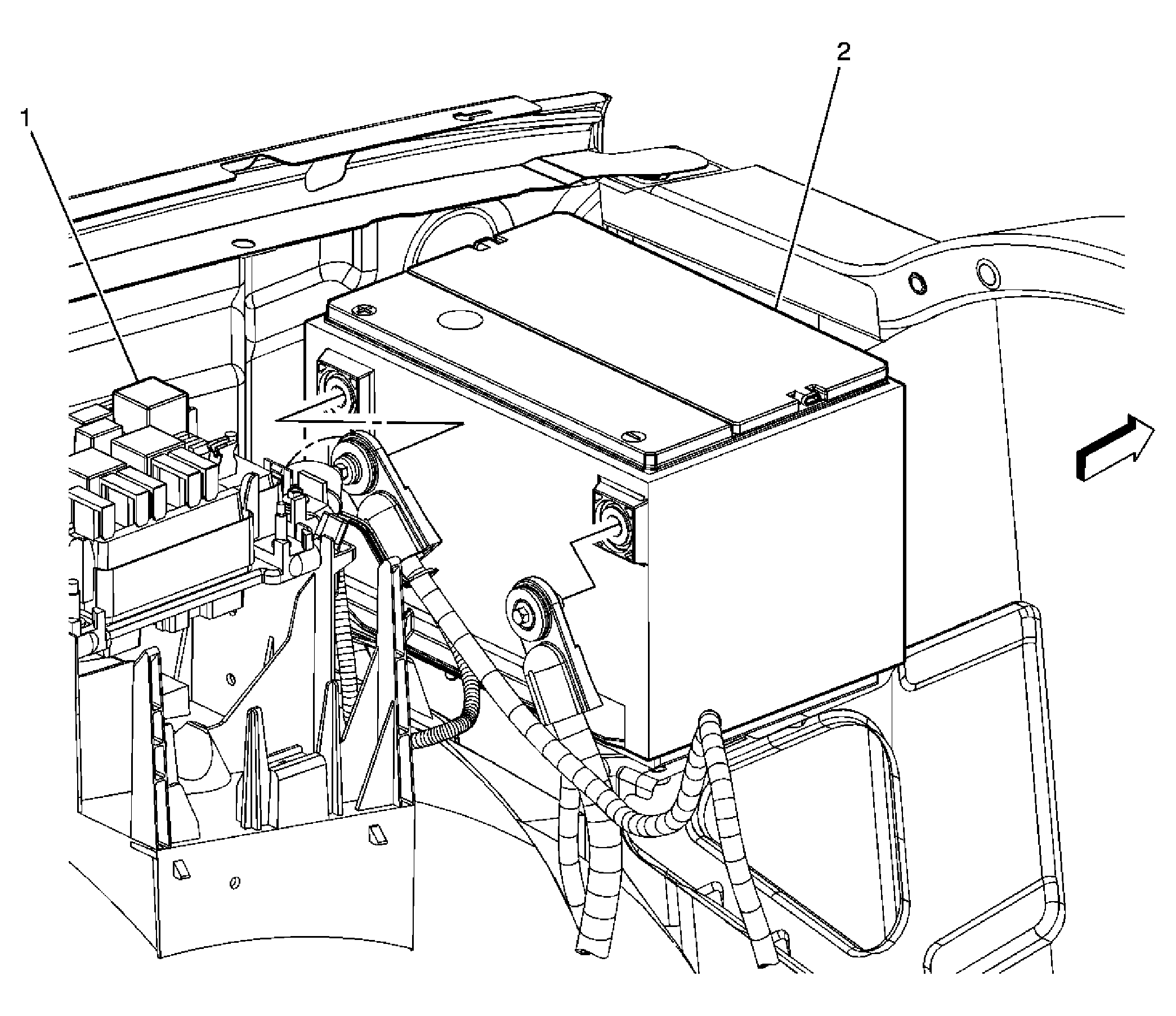

Fig 1: View Of Left Front Corner Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Junction Block - Underhood
2	Battery - Left

Fig 2: Engine Electrical Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Junction Block - Battery Cable
3	G100
4	Starter Solenoid
5	Starter
