Installation Procedure

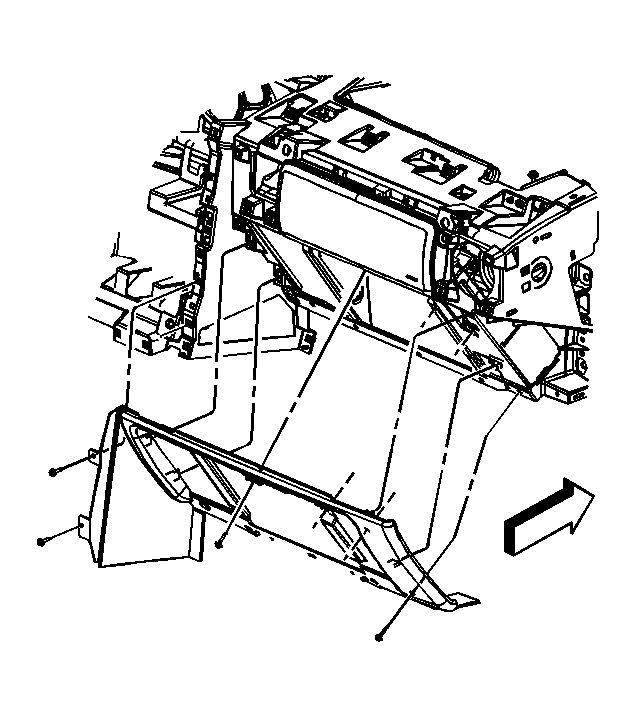

Fig 1: I/P Compartment

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the I/P compartment to I/P.
Tighten: Tighten the screws to 1.6 N.m (14 lb in).

Fig 2: I/P Compartment Door

Courtesy of GENERAL MOTORS CORP.

Install the I/P compartment door to I/P. Refer to Instrument Panel Compartment Door Replacement .
Tighten: Tighten the screws to 1.6 N.m (14 lb in).
Align and move forward center console in place and fasten console to center console bracket. Refer to Console Replacement .
