Installation Procedure

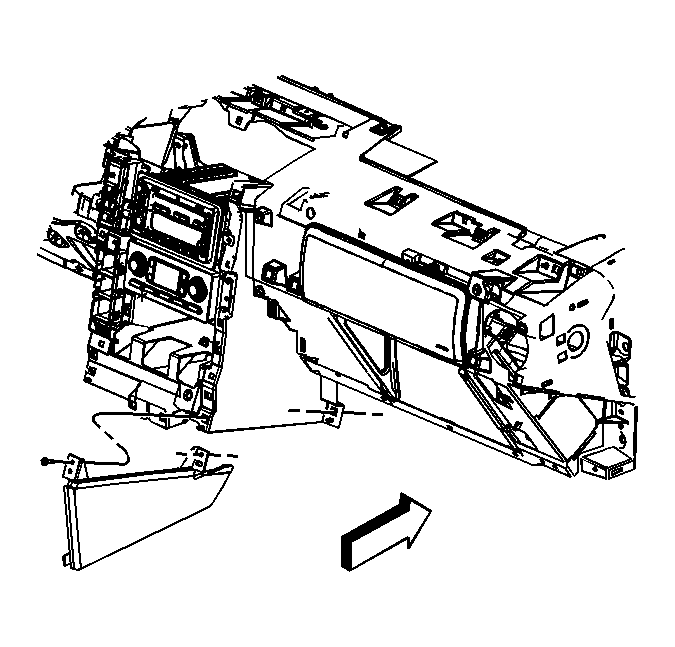

Fig 1: I/P Extension Trim Plate

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Align and tighten the screws that hold the I/P extension trim plate with the I/P.
Tighten: Tighten the screws to 2 N.m (18 lb in).
Align and fasten the I/P corner trim panel with the I/P. Refer to Instrument Panel Center Trim Panel Replacement .
Align and move forward the center console into place and fasten to the center console bracket. Refer to Console Replacement .
