Installation Procedure

  1. Install the insulator (1) to the instrument panel.

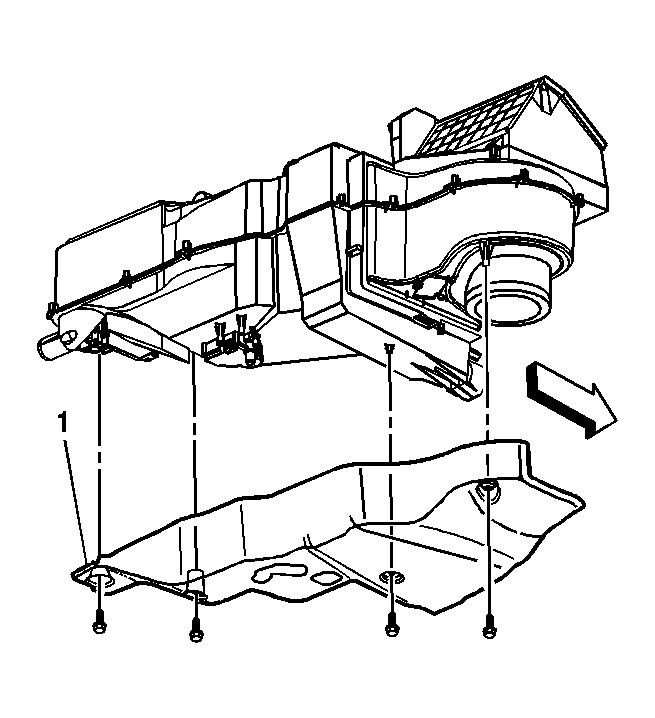

    2. Fig 1: Locating I/P Insulator Retaining Bolts
    GM787371Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the retaining bolts.

    Tighten:  Tighten the bolts to 1.6 N.m (14 lb in).
