Installation Procedure

    Fig 1: Radiator Hose & Radiator (Outlet)
    GM801112Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator outlet hose (3) to the radiator (1).
  2. Position the radiator outlet hose clamp (2) to the radiator (1).

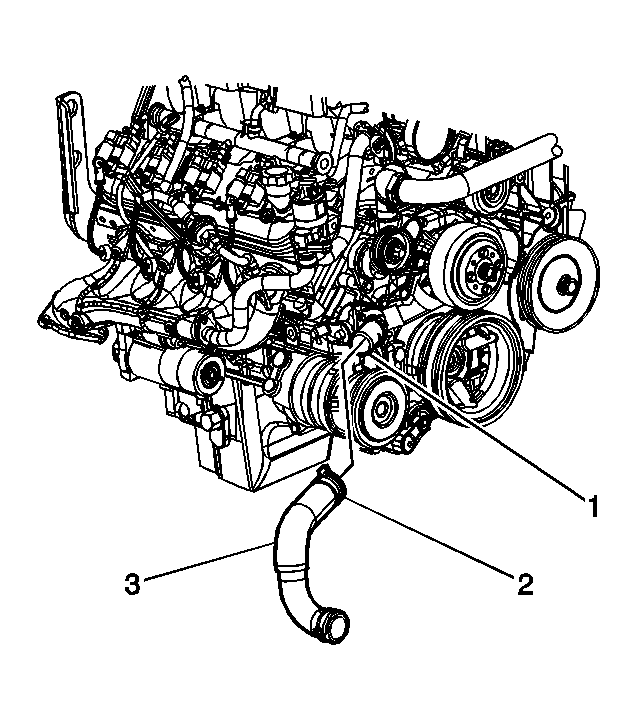

    3. Fig 2: Radiator Hose & Engine (Outlet)
    GM814575Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator outlet hose (3) to the engine (1).
  4. Position the radiator outlet hose clamp (2) to the engine (1).
  5. Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .
