Tilt Lever Replacement

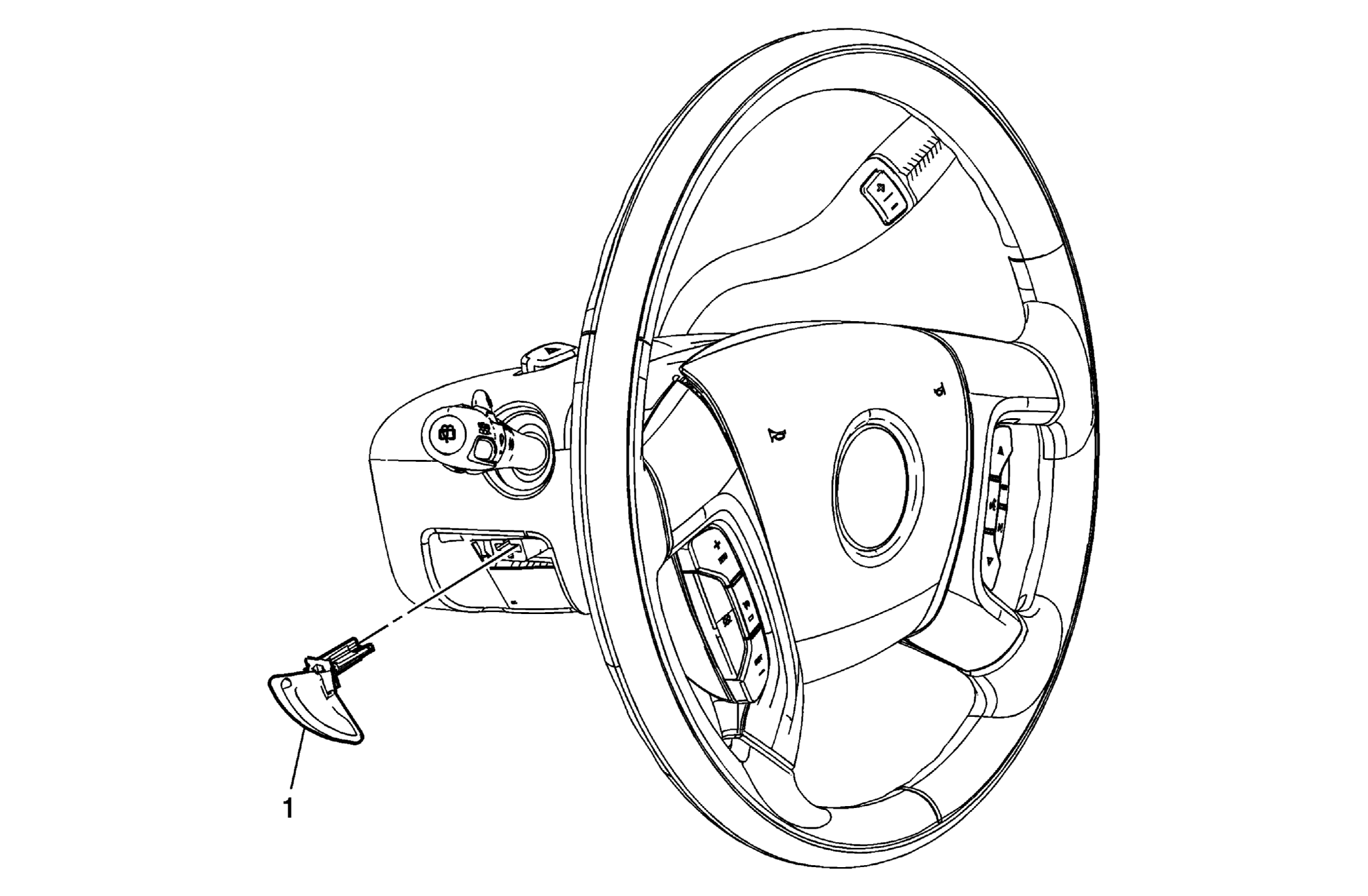

Fig 1: View Of Tilt Lever

GM1700677

Courtesy of GENERAL MOTORS CORP.

Tilt Lever Replacement

Callout	Component Name
1	Tilt Lever Tip: Remove the tilt lever by pulling outward.
