Moveable Window Schematics

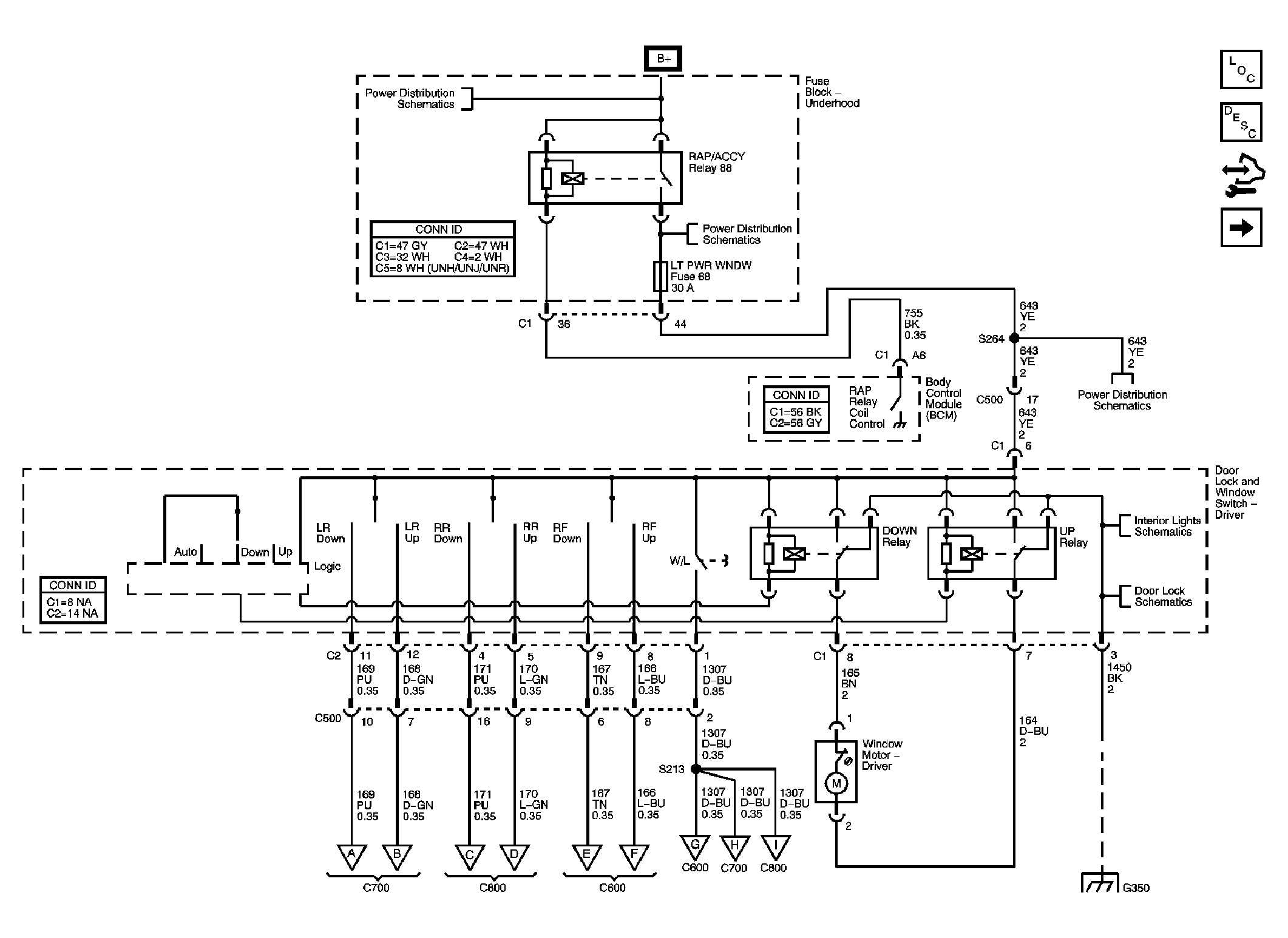

Fig 1: Driver Door Schematic

Courtesy of GENERAL MOTORS CORP.

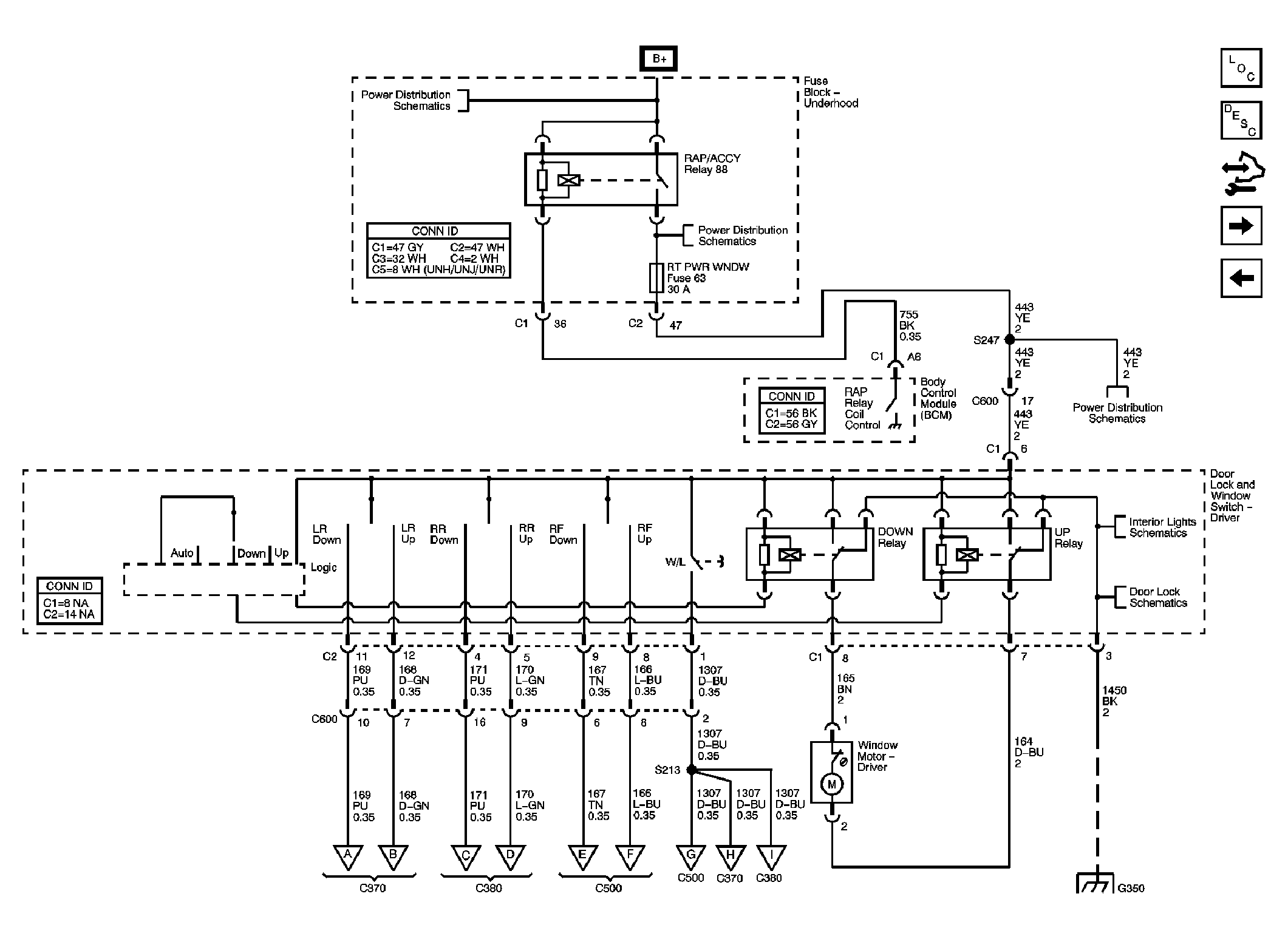

Fig 2: Driver Door Schematic - RHD

Courtesy of GENERAL MOTORS CORP.

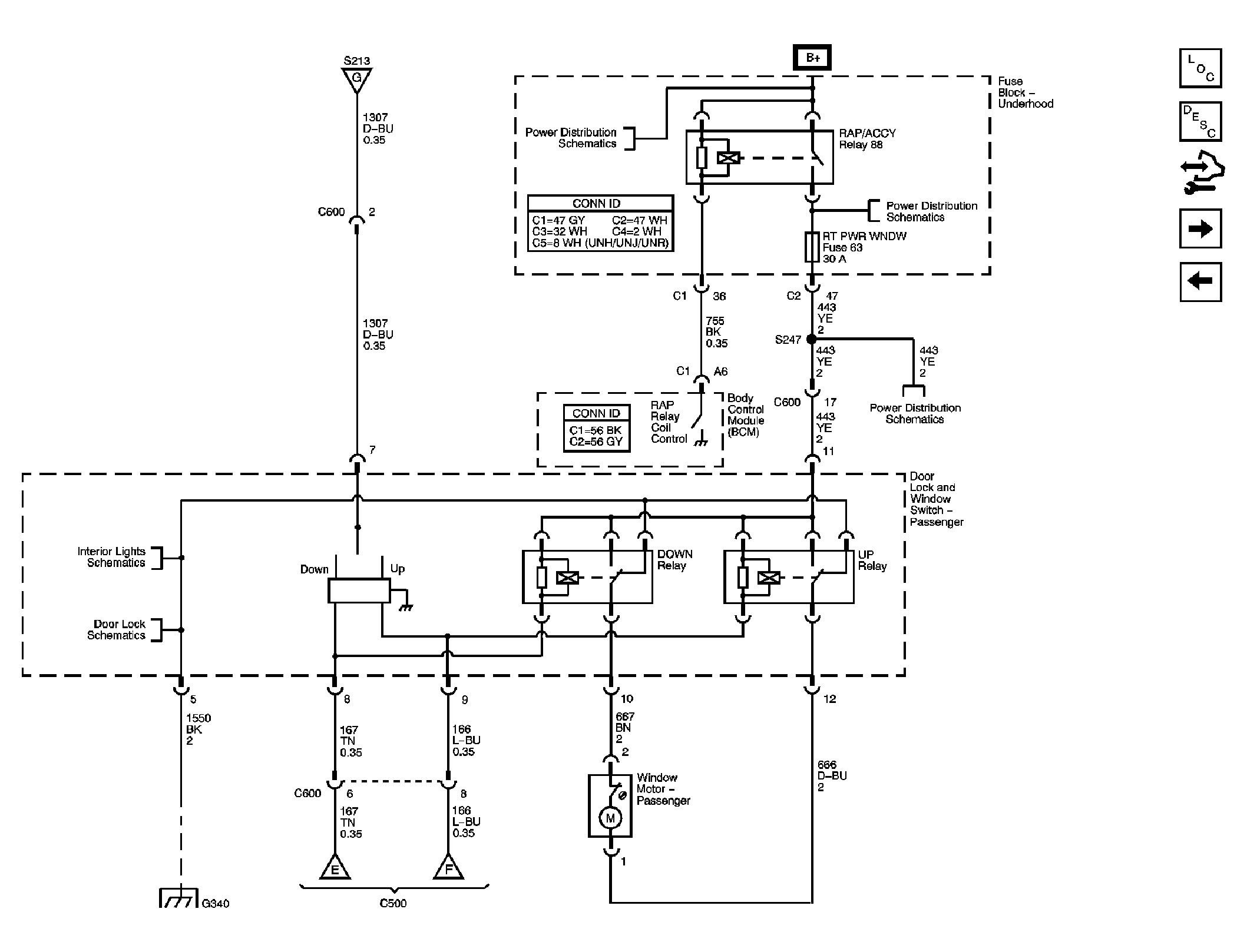

Fig 3: Front Passenger Door Schematic

Courtesy of GENERAL MOTORS CORP.

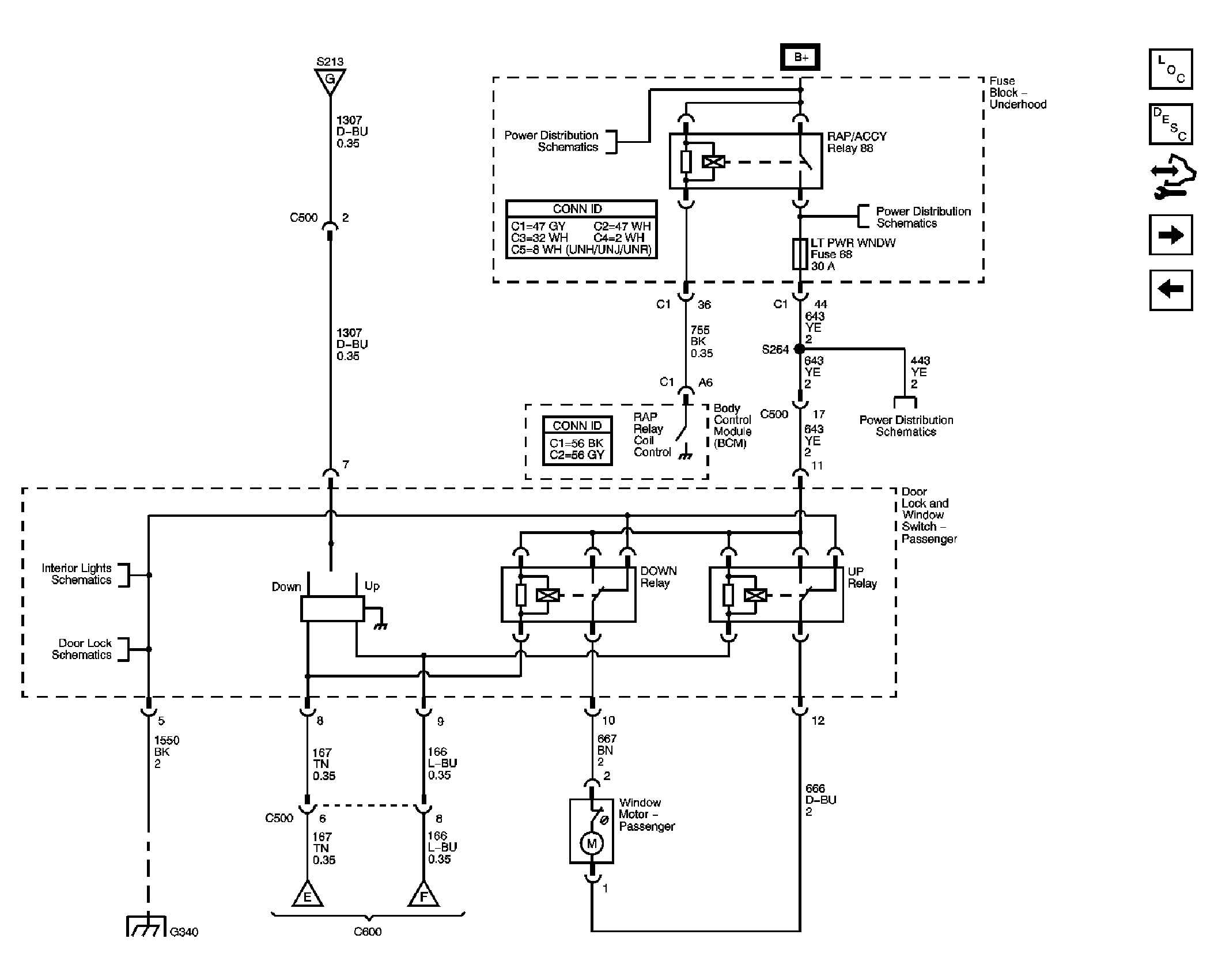

Fig 4: Front Passenger Door Schematic - RHD

Courtesy of GENERAL MOTORS CORP.

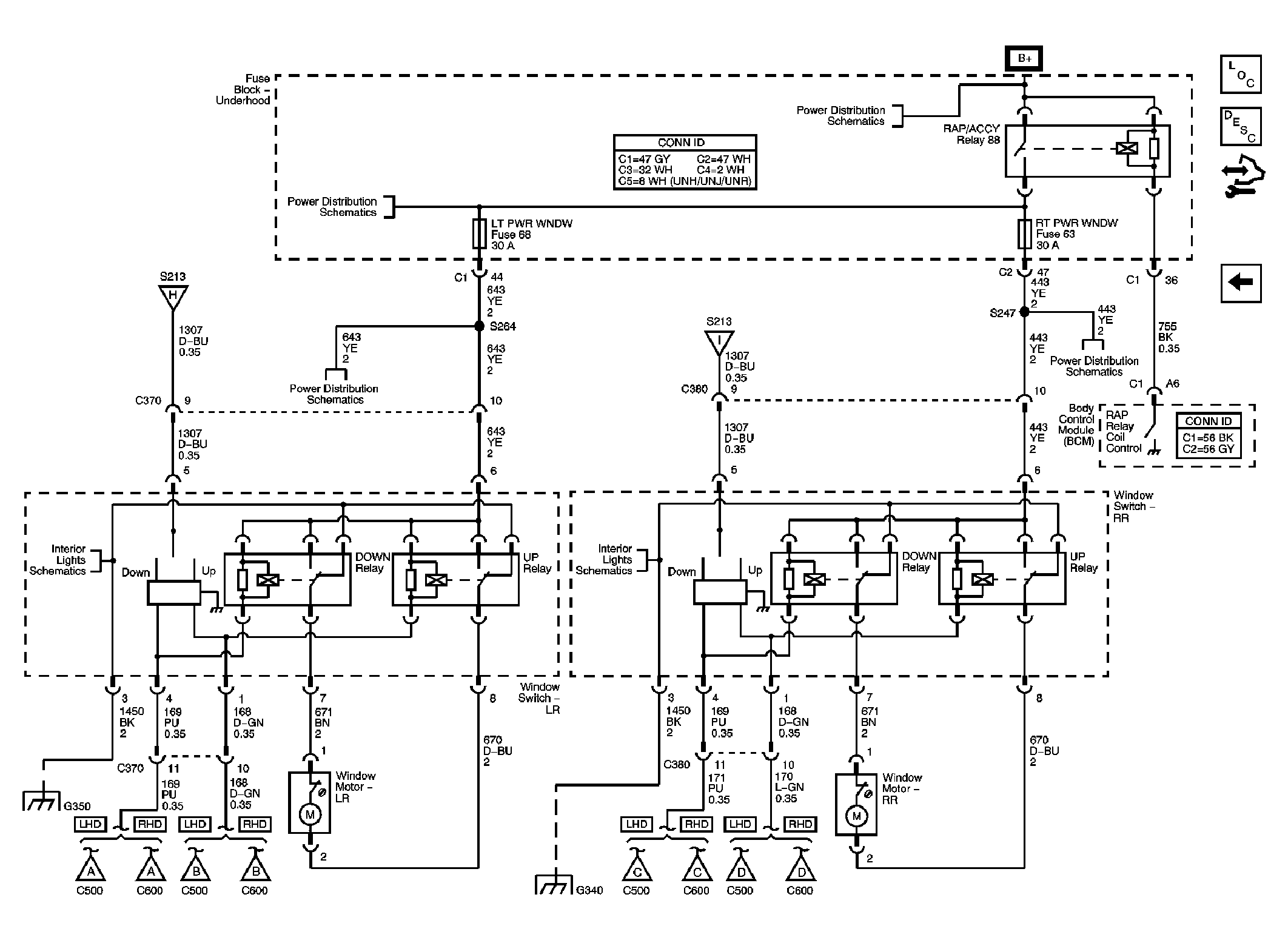

Fig 5: Rear Doors Schematic

Courtesy of GENERAL MOTORS CORP.
