Engine Shield Replacement
Engine Shield Replacement

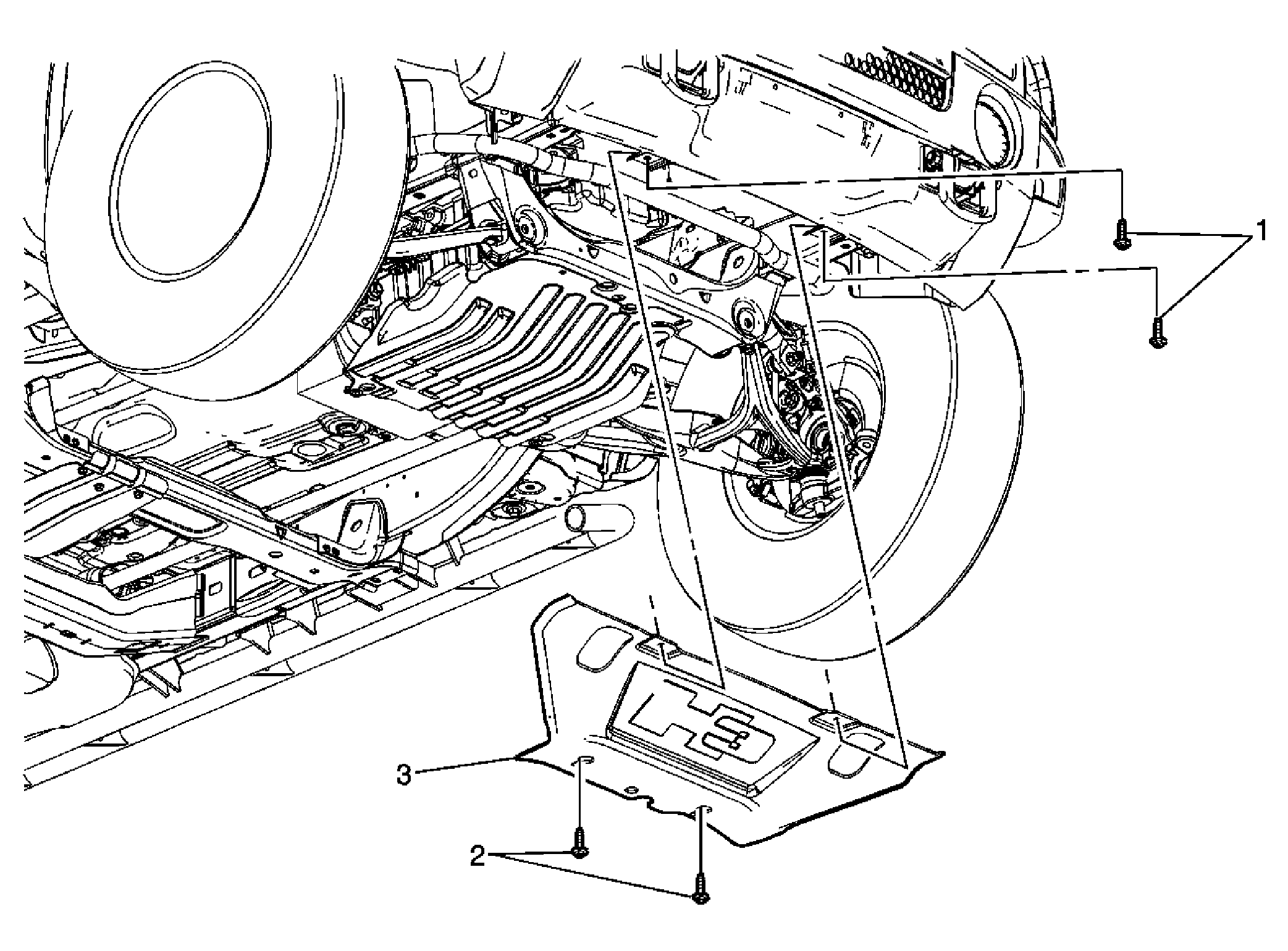

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle
. |
|
| 1 | Bolts, Engine Shield (Qty: 2) Tighten: 20 N.m (15 lb ft) |
| 2 | Bolts, Engine Shield (Qty: 2) Tighten: 20 N.m (15 lb ft) |
| 3 | Shield, Engine |
