Installation Procedure

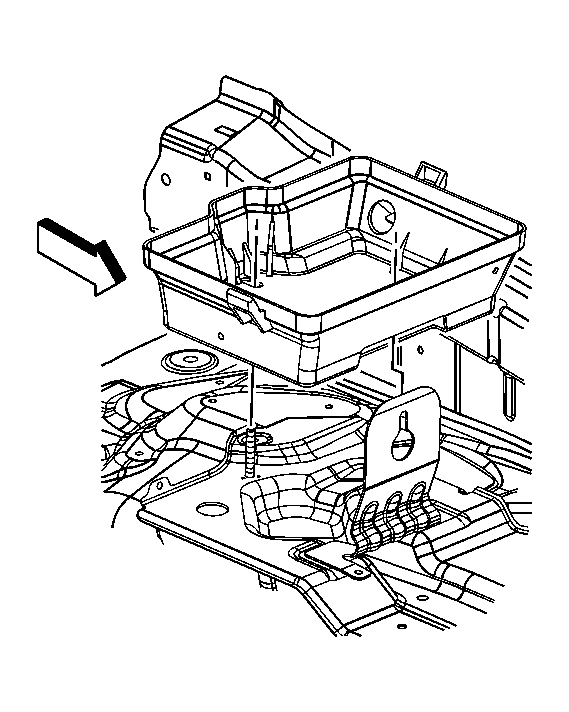

    Fig 1: View Of Lower Battery Box
    GM1560054Courtesy of GENERAL MOTORS CORP.
  1. Install the lower battery box to the retainer stud and battery tray.
    2. Fig 2: Identifying Battery Cable Harness Clips
    GM1560042Courtesy of GENERAL MOTORS CORP.
  2. Install the battery cable harness clips (1, 2) to the battery tray.
  3. Install the battery. Refer to Battery Replacement .
