Removal Procedure

  1. Remove the fan shroud. Refer to Fan Shroud Replacement (LLR) .
    2. Fig 1: Removing/Installing Fan Clutch
    GM1698804Courtesy of GENERAL MOTORS CORP.
  2. Using J 41240  and J 46406  loosen the fan clutch. See Special Tools .

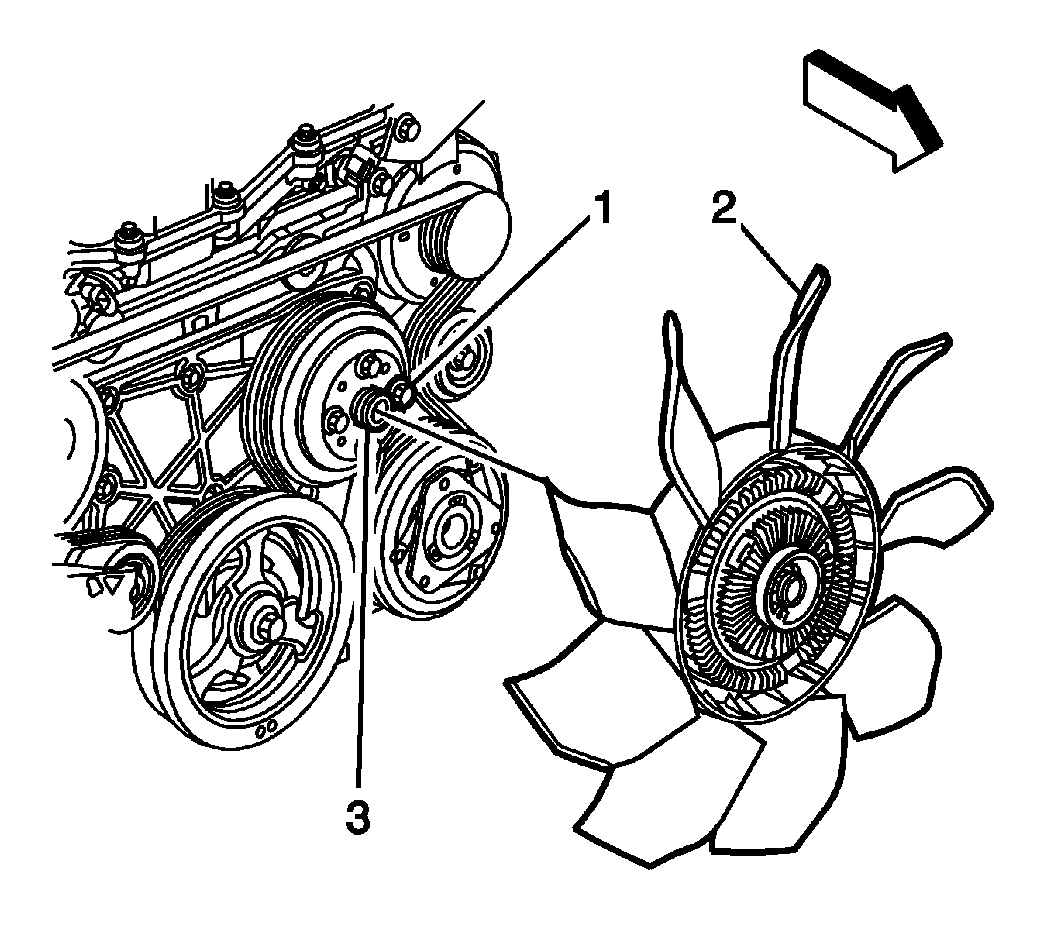

    3. Fig 2: View Of Fan
    GM1207759Courtesy of GENERAL MOTORS CORP.
  3. Remove the fan hub nut in a counterclockwise rotation.
  4. Remove the cooling fan (2) from the fan clutch. Refer to Fan Clutch Replacement .
