Installation Procedure

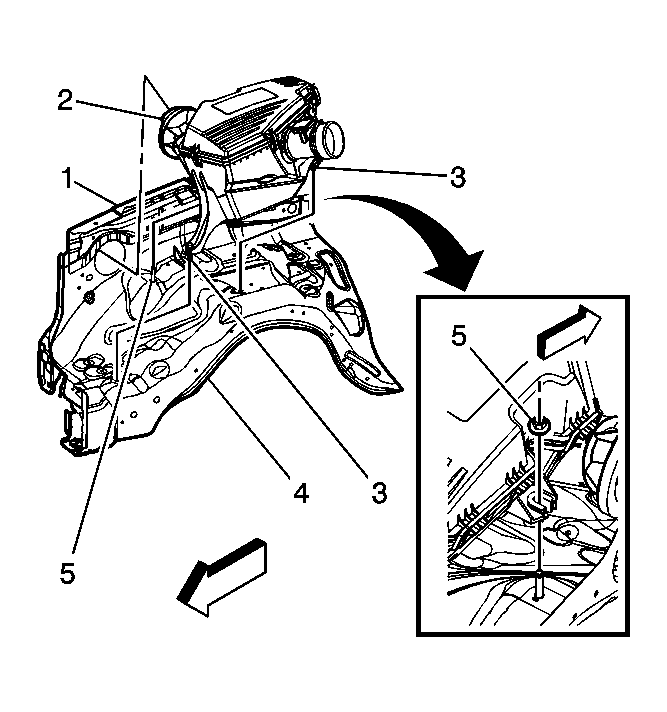

    Fig 1: View Of Air Cleaner Assembly
    GM1352017Courtesy of GENERAL MOTORS CORP.
  1. Position the air cleaner assembly into the engine compartment, inserting the snorkel (2) into the fender (1).
    2. NOTE: Refer to Fastener Notice .
  2. Install the 2 bolts (3) and nut (5) securing the air cleaner assembly to the wheel house (4).

    Tighten:

    • Tighten the bolts to 10 N.m (89 lb in).
    • Tighten the nut to 15 N.m (11 lb ft).

  3. Connect the air cleaner outlet duct to the air cleaner assembly.

    Tighten:  Tighten the clamp to 6 N.m (53 lb in).

    4. Fig 2: Locating Air Injection (AIR) Pump Inlet Hose
    GM1749356Courtesy of GENERAL MOTORS CORP.
  4. Connect the AIR pump inlet hose quick connect fitting to the air cleaner assembly. Refer to Plastic Collar Quick Connect Fitting Service .

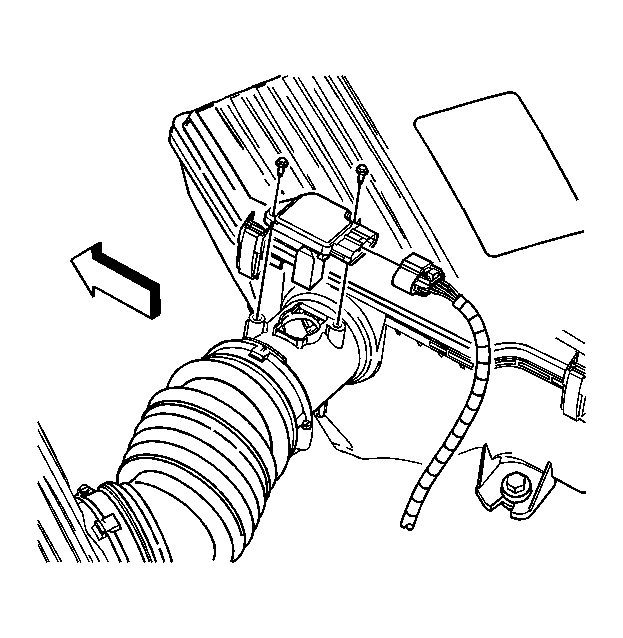

    5. Fig 3: View Of MAF/IAT Sensor
    GM1352006Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector to the MAF/IAT sensor.
