Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

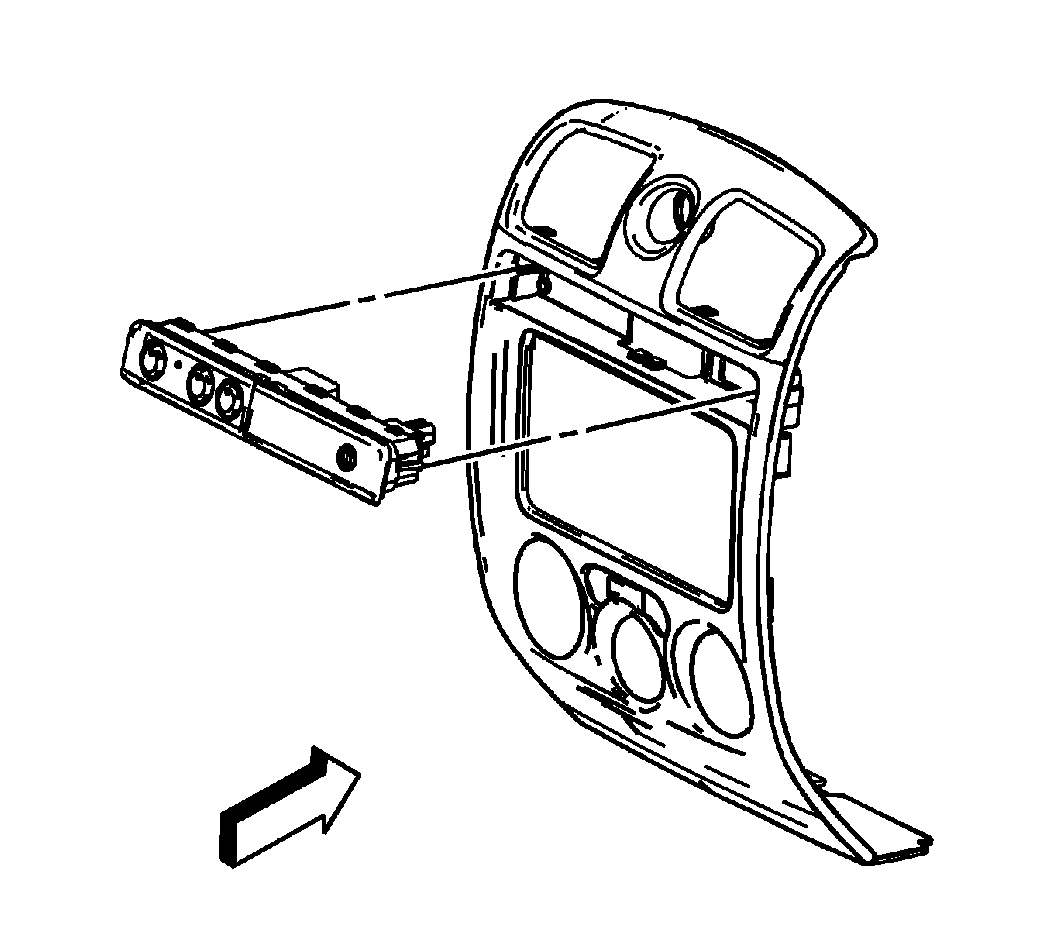

Fig 1: View Of Accessory Switch

Courtesy of GENERAL MOTORS CORP.

Install the switch to the trim plate.

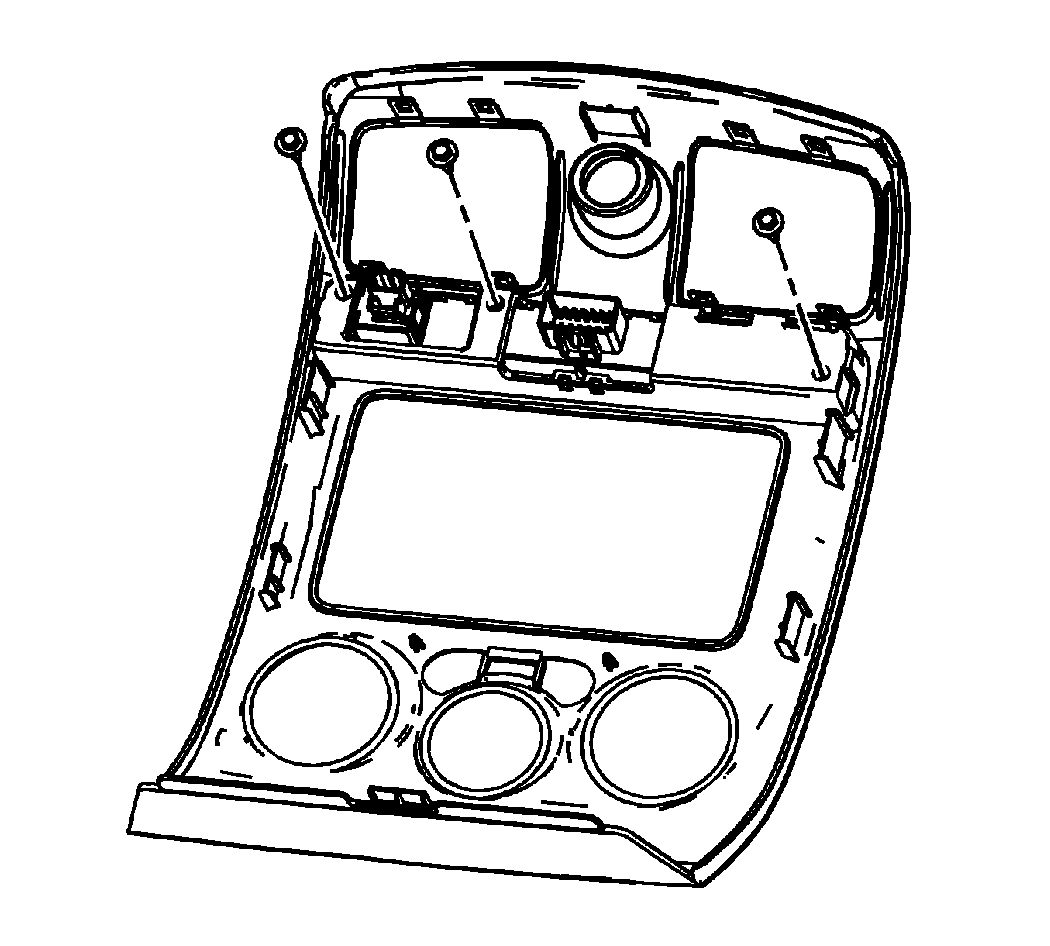

Fig 2: View Of Accessory Switch Fasteners

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the fasteners retaining the switch to the trim plate.
Tighten: Tighten the fastener to 2.5 N.m (22 lb in).
Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory .
