Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

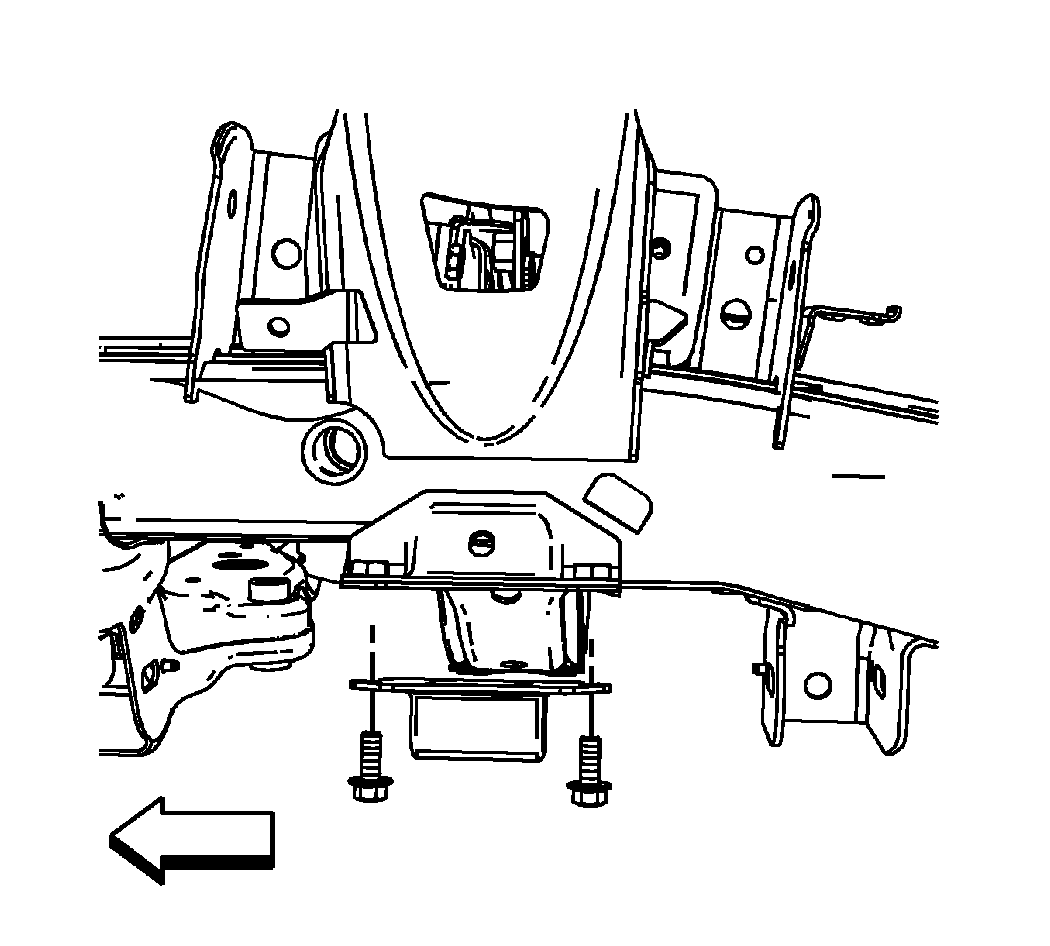

Fig 1: View Of Jounce Bumper (2WD)

Courtesy of GENERAL MOTORS CORP.

Install the jounce bumper.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the jounce bumper bolts.
Tighten: Tighten the bolt to 32 N.m (24 lb ft).
Lower the vehicle.
