Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulators to the stabilizer shaft.
    2. Fig 1: View Of Insulator Clamp Bolts
    GM942154Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft.
  3. Install the clamps over the insulators and the stabilizer shaft.
    4. NOTE: Refer to Fastener Notice .
  4. Install insulator clamp bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  5. Support the lower control arms at curb height.

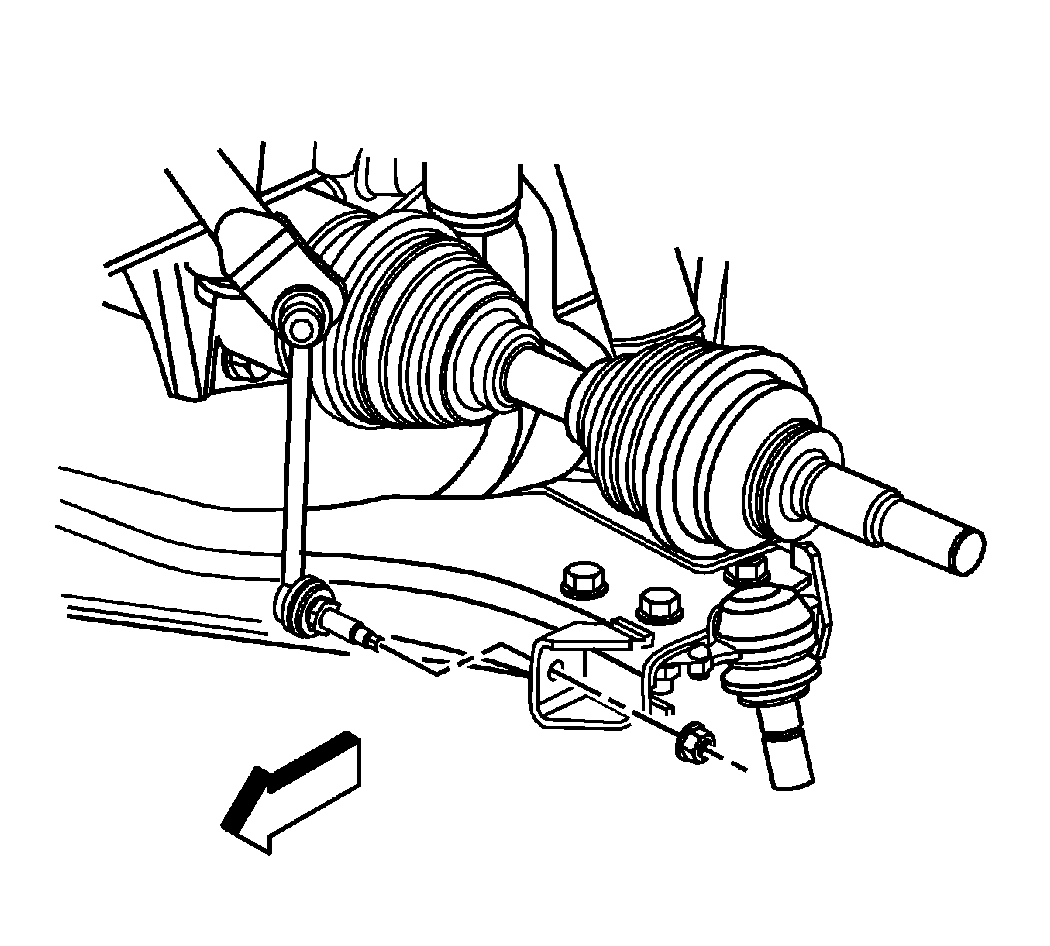

    6. Fig 2: View Of Stabilizer Shaft Link Assemblies
    GM942101Courtesy of GENERAL MOTORS CORP.
  6. Install the link assemblies.
  7. Install the nuts to the link assemblies.

    Tighten:  Tighten the nut to 44 N.m (32 lb ft).

  8. Lower the vehicle.
