Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper control arm.

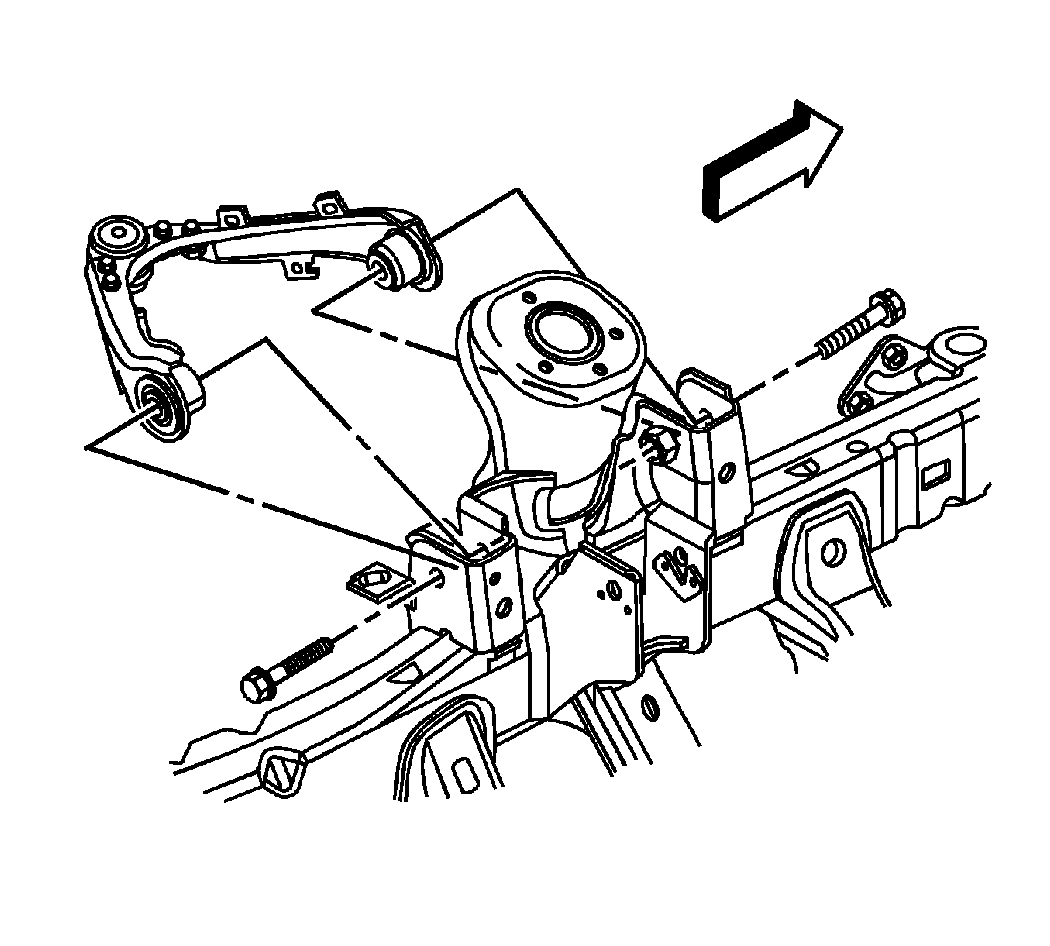

    2. Fig 1: View Of Upper Control Arm (2WD)
    GM940690Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the upper control arm bolts.

    Tighten:  Tighten the bolts to 160 N.m (118 lb ft).

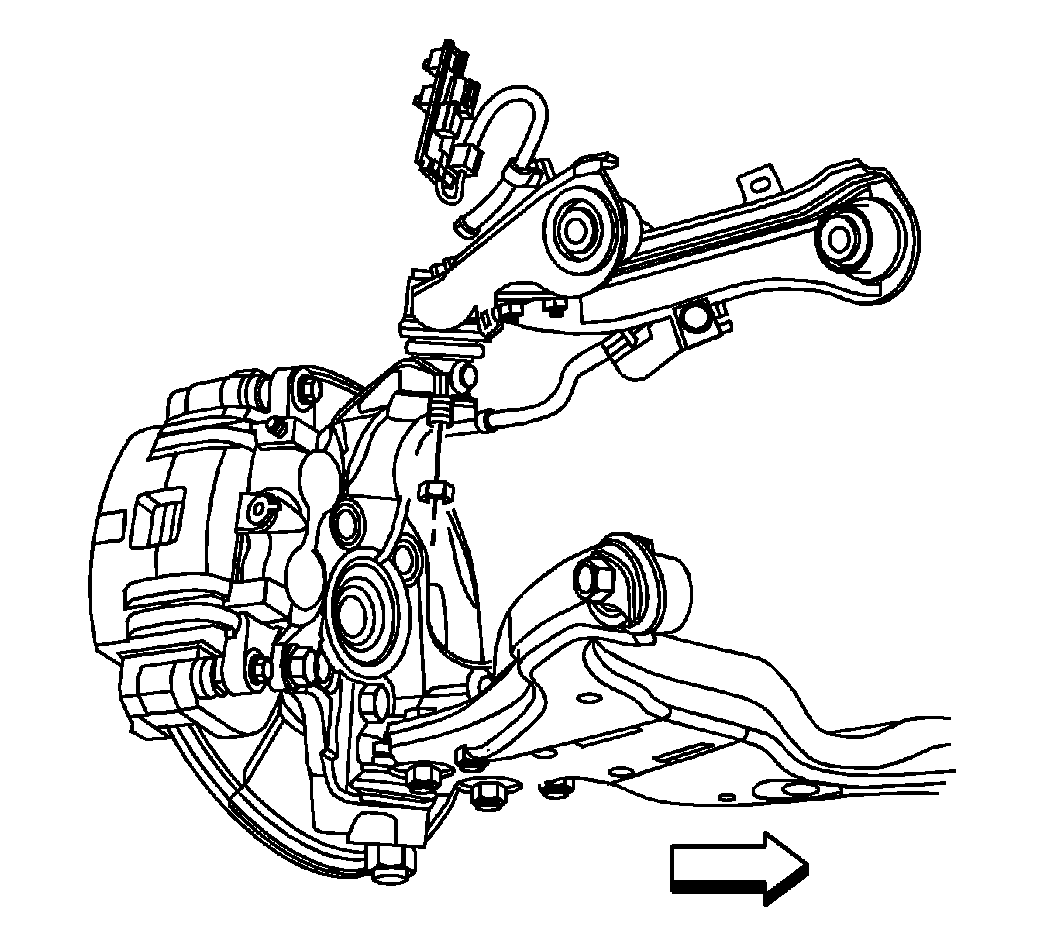

    3. Fig 2: View Of Upper Ball Joint Nut (2WD)
    GM942355Courtesy of GENERAL MOTORS CORP.
  3. Connect the upper control arm to the steering knuckle.
  4. Install the new nut to the upper ball joint stud.

    Tighten:  Tighten the nut to 100 N.m (74 lb ft).

  5. Connect the wheel speed sensor brackets.
  6. Install the wheel speed sensor bracket bolt.

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  7. Connect the front brake hose to the upper control arm. Refer to Brake Hose Replacement - Front in Hydraulic brakes.
  8. Remove the lower control arm support.
  9. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  10. Lower the vehicle.
  11. Verify the wheel alignment. Refer to Wheel Alignment Specifications in Wheel Alignment.
