Hummer
›
2007
›
H3 Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Shift Lock Control
›
Schematic and Routing Diagrams
›
Shift Lock Control Schematics
Shift Lock Control Schematics

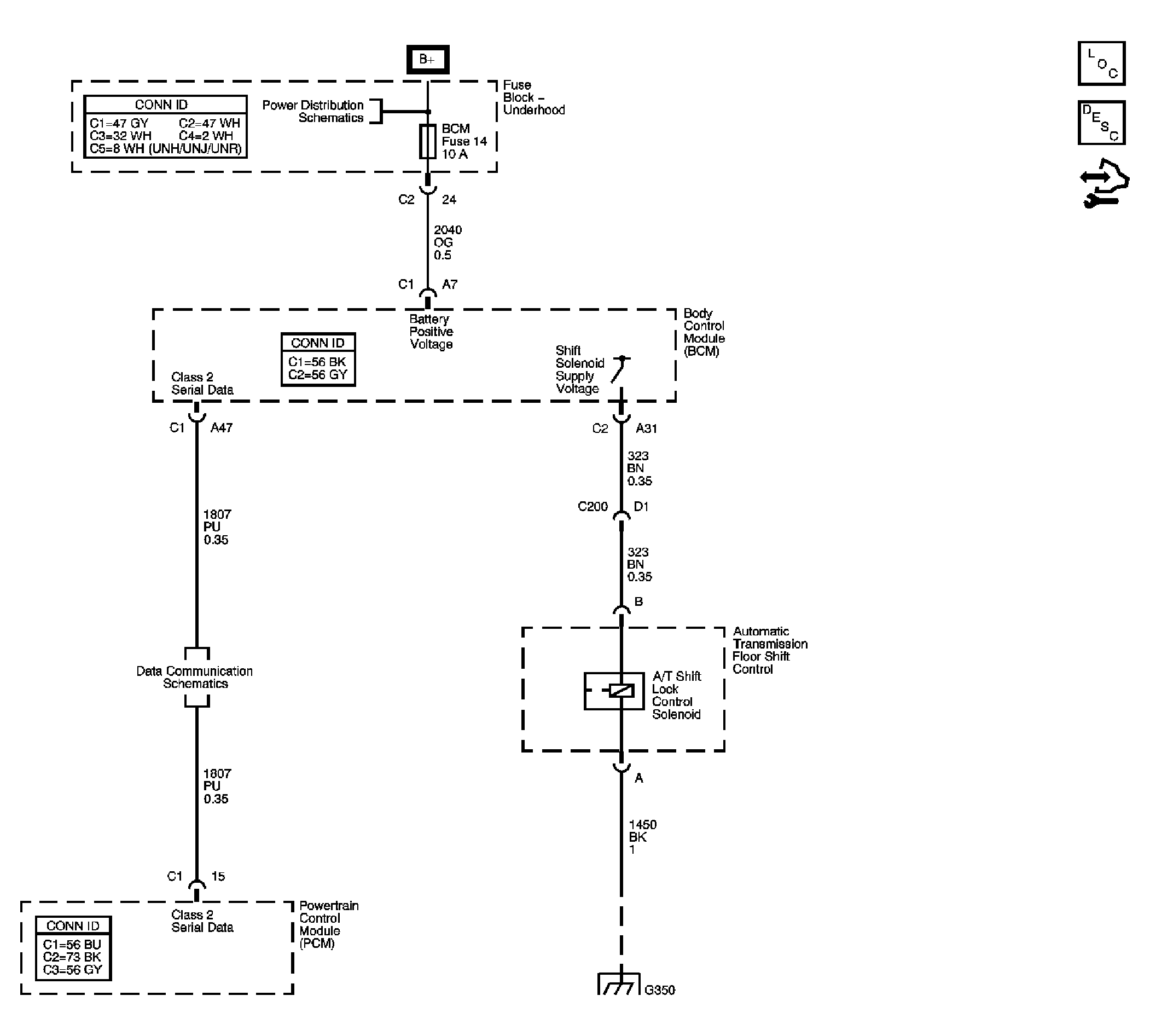

Fig 1: Shift Lock Control Schematic
Courtesy of GENERAL MOTORS CORP.
