Transfer Case Disassembled View

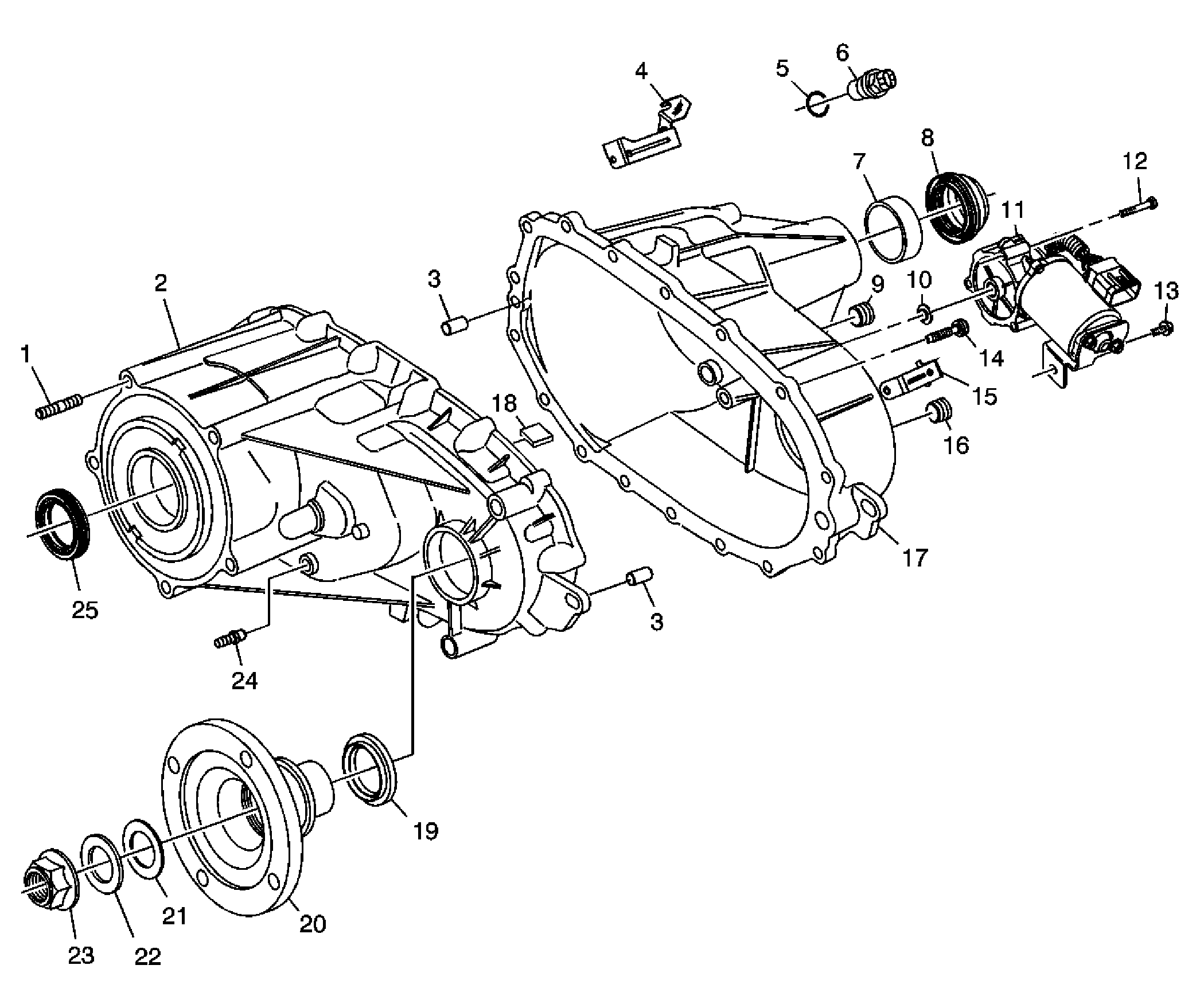

Fig 1: Transfer Case Disassembled View - Case

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Adapter Stud
2	Front Case Half
3	Location Pin
3	Location Pin
4	Fuel Line Bracket
5	Vehicle Speed Sensor O-Ring Seal
6	Vehicle Speed Sensor
7	Output Shaft Bushing
8	Rear Output Shaft Seal
9	Fill Plug
10	Shift Shaft Seal
11	Encoder Motor
12	Encoder Motor Bolt
13	Encoder Motor Bracket Bolt
14	Case Half Bolt
15	Wiring Harness Bracket
16	Drain Plug
17	Rear Case Half
18	Magnet
19	Front Output Shaft Seal
20	Front Output Shaft Flange
21	Front Output Shaft Flange Seal
22	Front Output Shaft Flange Washer
23	Front Output Shaft Flange Nut
24	Vent
25	Input Shaft Seal

Fig 2: Transfer Case Disassembled View - Internal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
200	Input Gear Bearing
201	Ring Gear
202	Ring Gear Retaining Ring
203	High/Low Planetary Carrier Assembly
203	High/Low Planetary Carrier Assembly
204	Mainshaft Front Support Bearing
205	High/Low Range Sleeve
205	High/Low Range Sleeve
206	High/Low Range Shift Fork Assembly
207	Shift Fork Shaft
208	Input Gear Thrust Bearing
209	Mainshaft
210	Oil Pump
211	Oil Pump Hose Clamp
212	Oil Pump Hose
213	Oil Pump Screen
214	Upper Center Bearing Support Thrust Washer
215	Bearing
216	Snap Ring
217	Center Bearing Support
218	Lower Center Support Bearing Thrust Washer
219	Shift Cam
220	Shift Shaft Torsional Spring
221	Shift Shaft Spacer
222	Shift Shaft
223	Inner Lockup Hub
224	Lockup Mode Shift Collar Assembly
225	Lockup Mode Shift Fork
226	Shift Fork Shaft Spring
227	Drive Sprocket Bushing
228	Drive Sprocket
229	Drive Chain
230	Front Output Sun Gear
231	Planetary Differential Assembly
232	Rear Output Shaft Thrust Washer
233	Rear Output Sun Gear
234	Mainshaft Rear Support Bushing
235	Rear Output Shaft
236	Rear Output Shaft Bearing Outer Retaining Ring
237	Rear Output Shaft Bearing
238	Rear Output Shaft Bearing Retaining Ring
239	Speed Sensor Tone Wheel
240	Front Output Shaft Rear Bearing
241	Driven Gear
242	Front Output Shaft
243	Front Output Shaft Front Bearing
