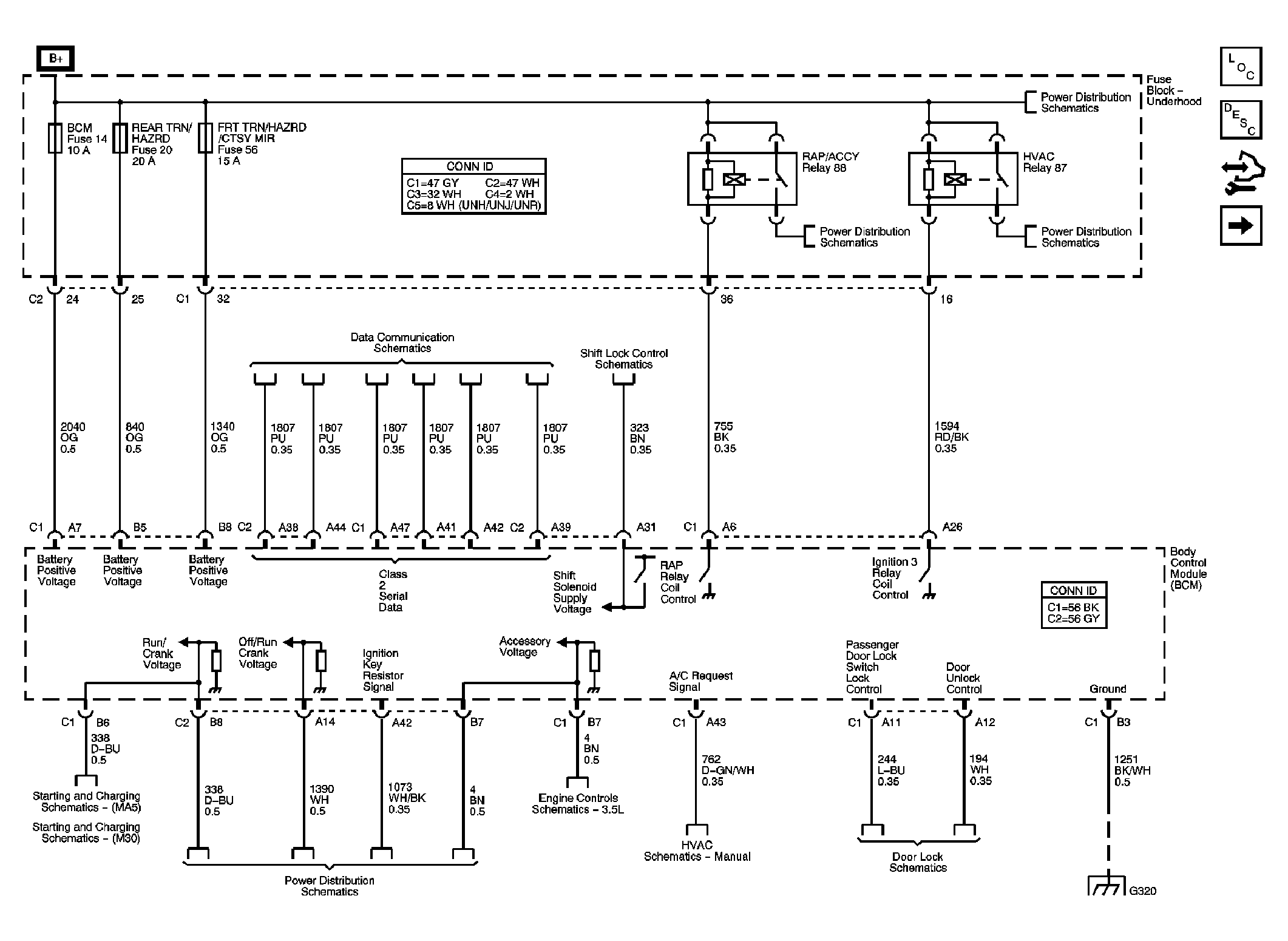

Fig 1: Power, Ground and Subsystem References to DLC, A/T Shift Lock Control, HVAC, Starting and Charging, Engine Controls and Door Lock/Indicator Systems Schematic
Courtesy of GENERAL MOTORS CORP.

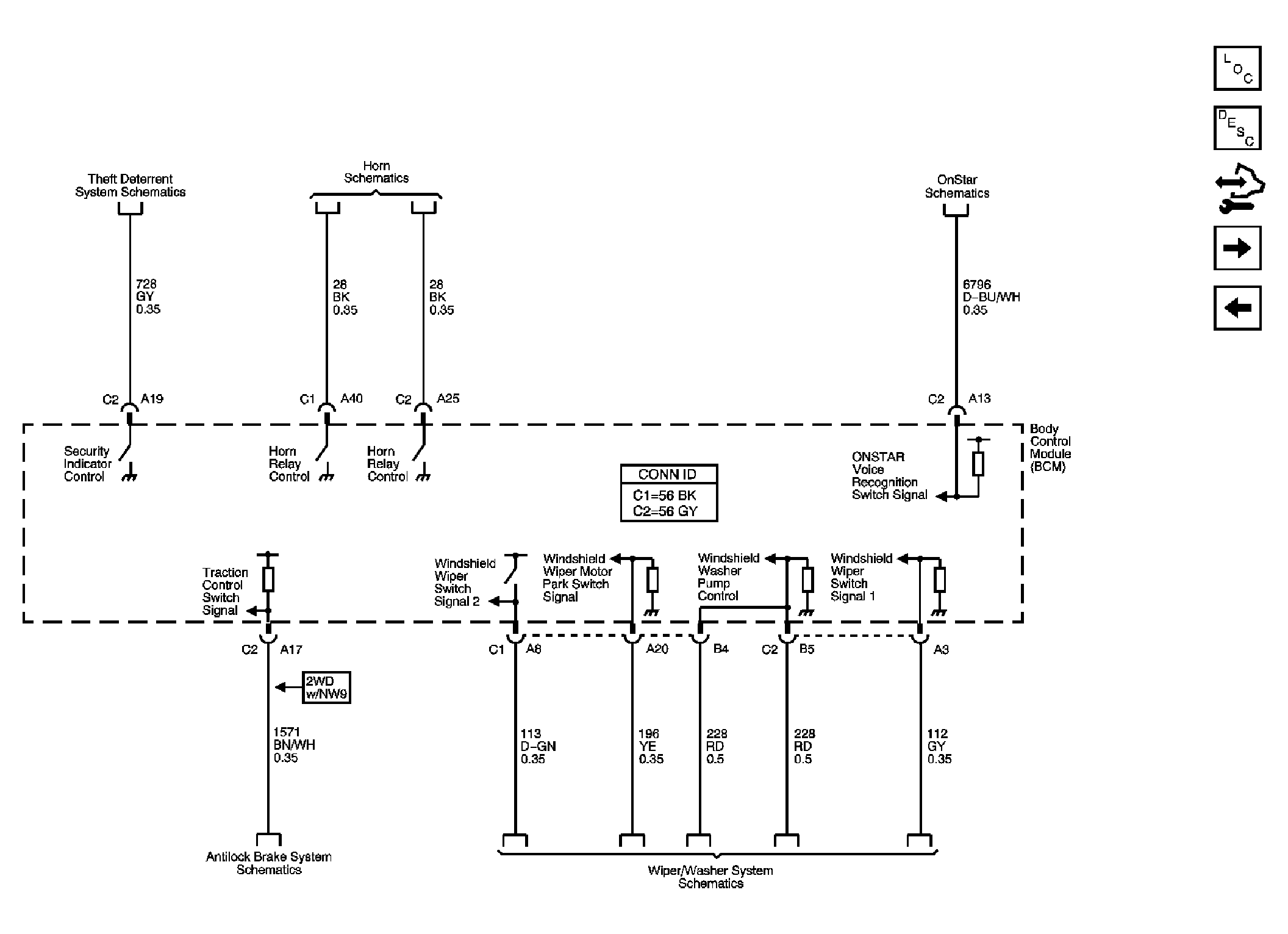

Fig 2: Subsystem References to ABS, Horn, Theft and Wiper/Washer Systems Schematic
Courtesy of GENERAL MOTORS CORP.

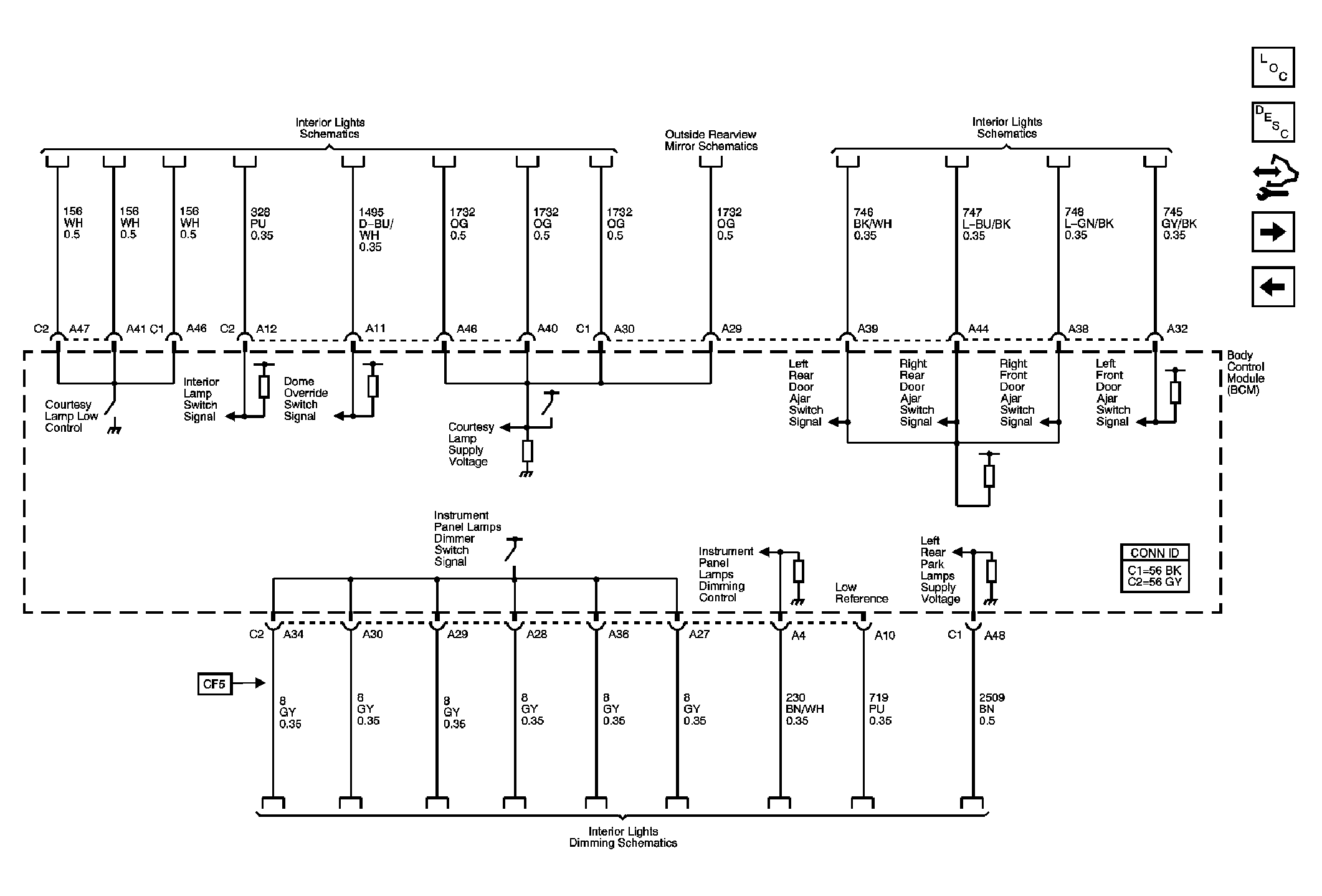

Fig 3: Subsystem References to Doors, Interior Lights and Interior Lights Dimming Systems Schematic
Courtesy of GENERAL MOTORS CORP.

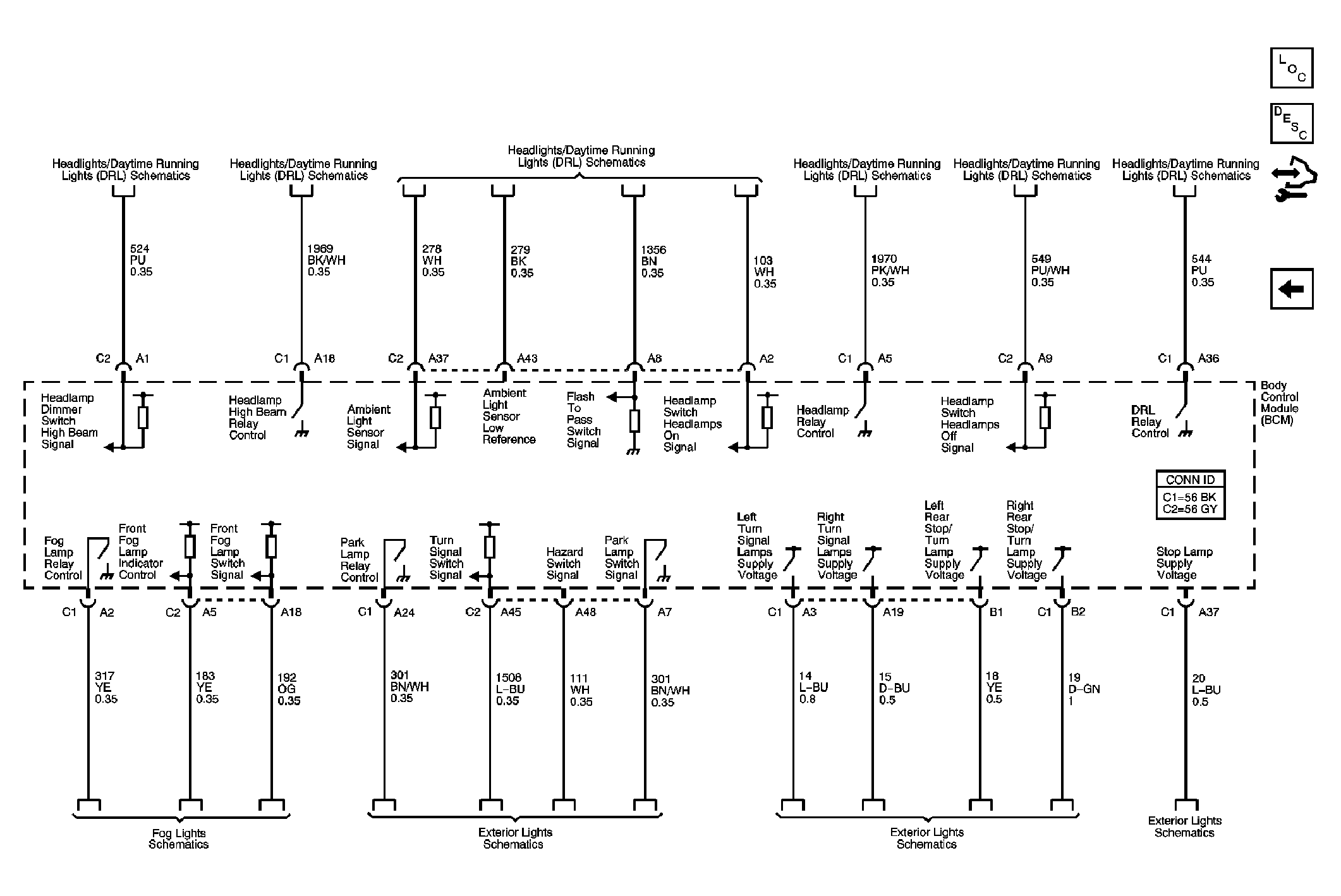

Fig 4: Subsystem References to Exterior Lighting and Fog Lights Schematic
