Data Communication Schematics

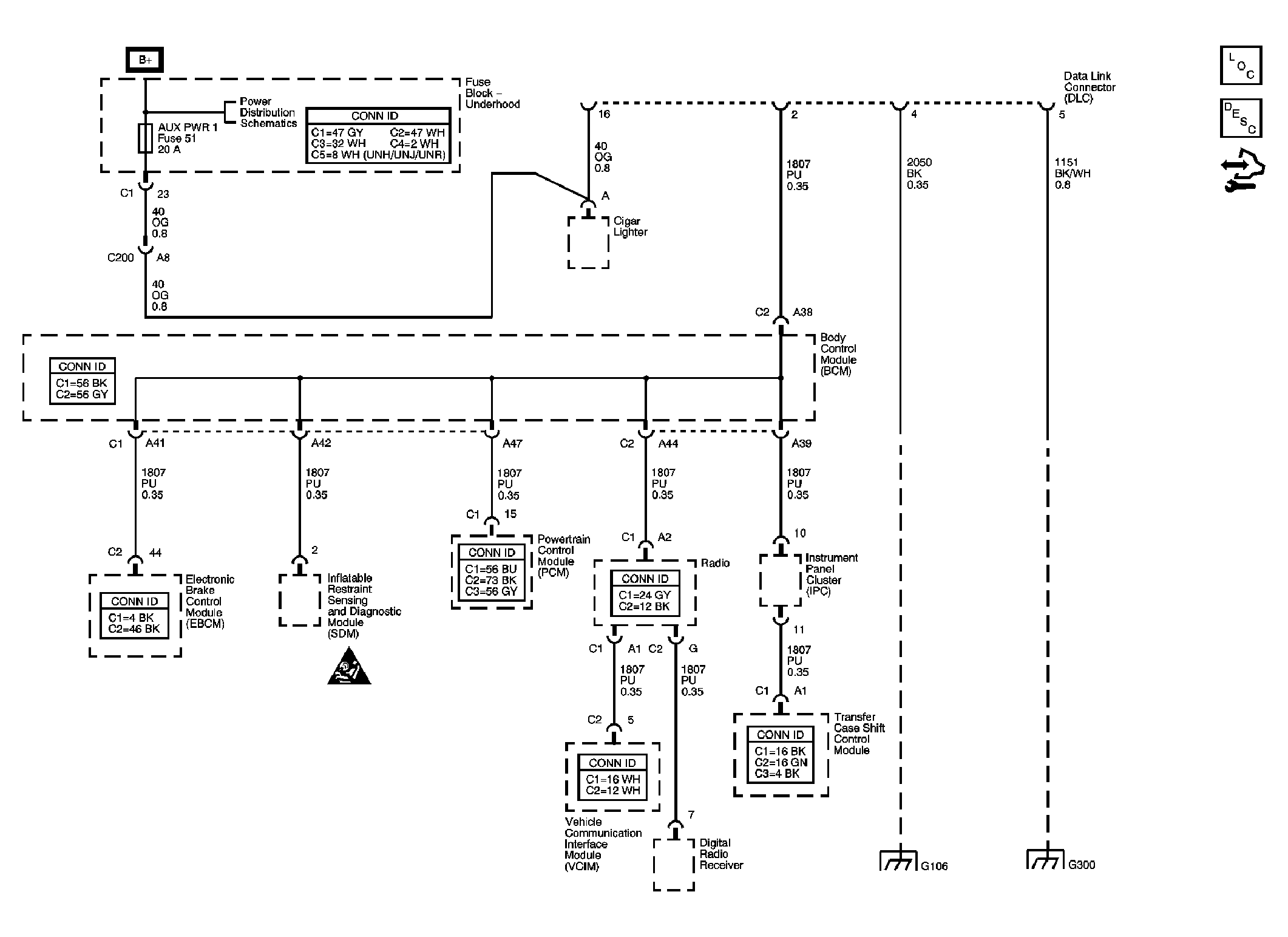

Fig 1: Data Communication Schematic
GM1777865Courtesy of GENERAL MOTORS CORP.
