Hazard Warning Switch Replacement

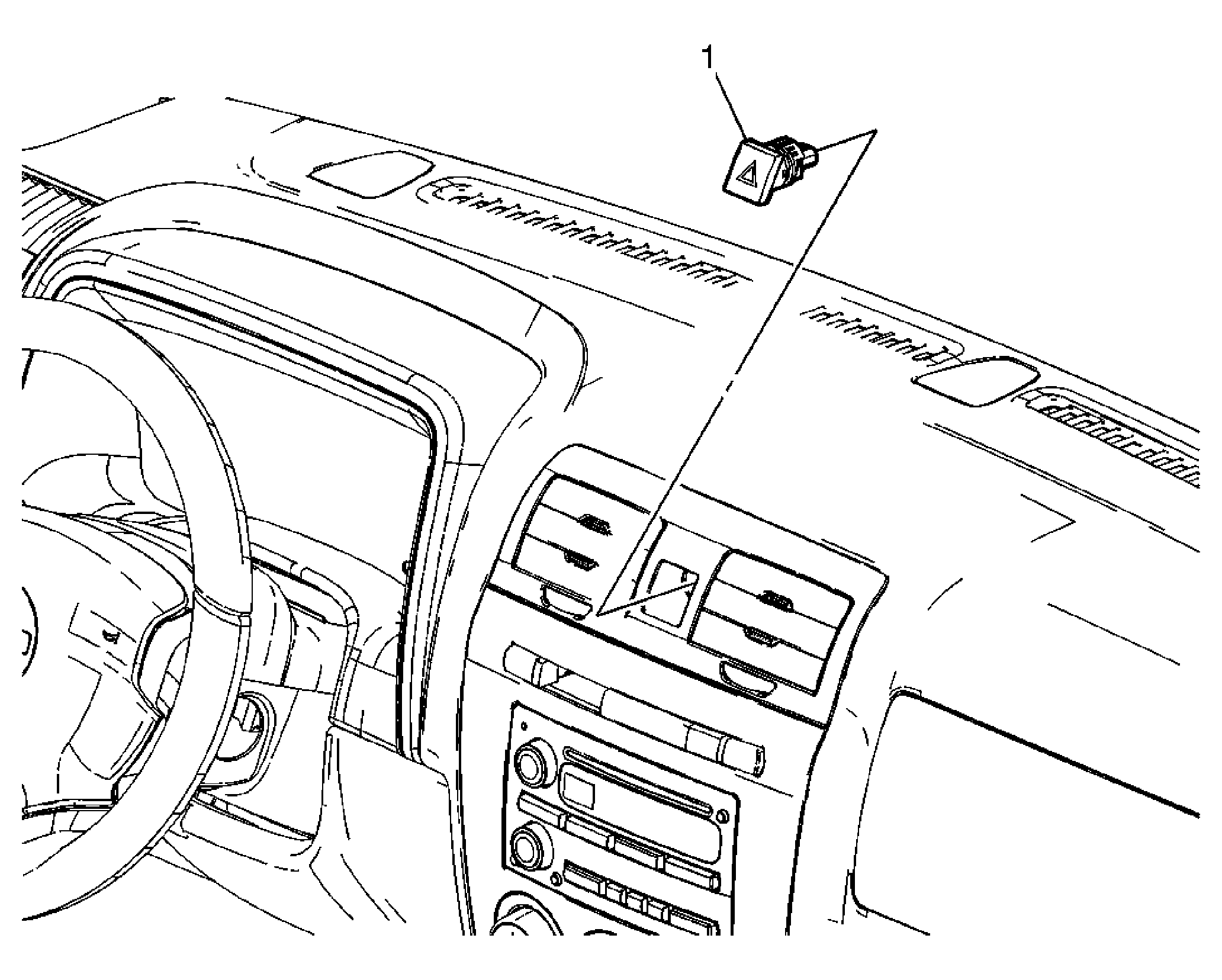

Fig 1: Hazard Warning Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Hazard Warning Switch Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Switch Assembly, Hazard Lamp Tip:  Use a small plastic trim tool to remove the switch. Disconnect the electrical connector.
